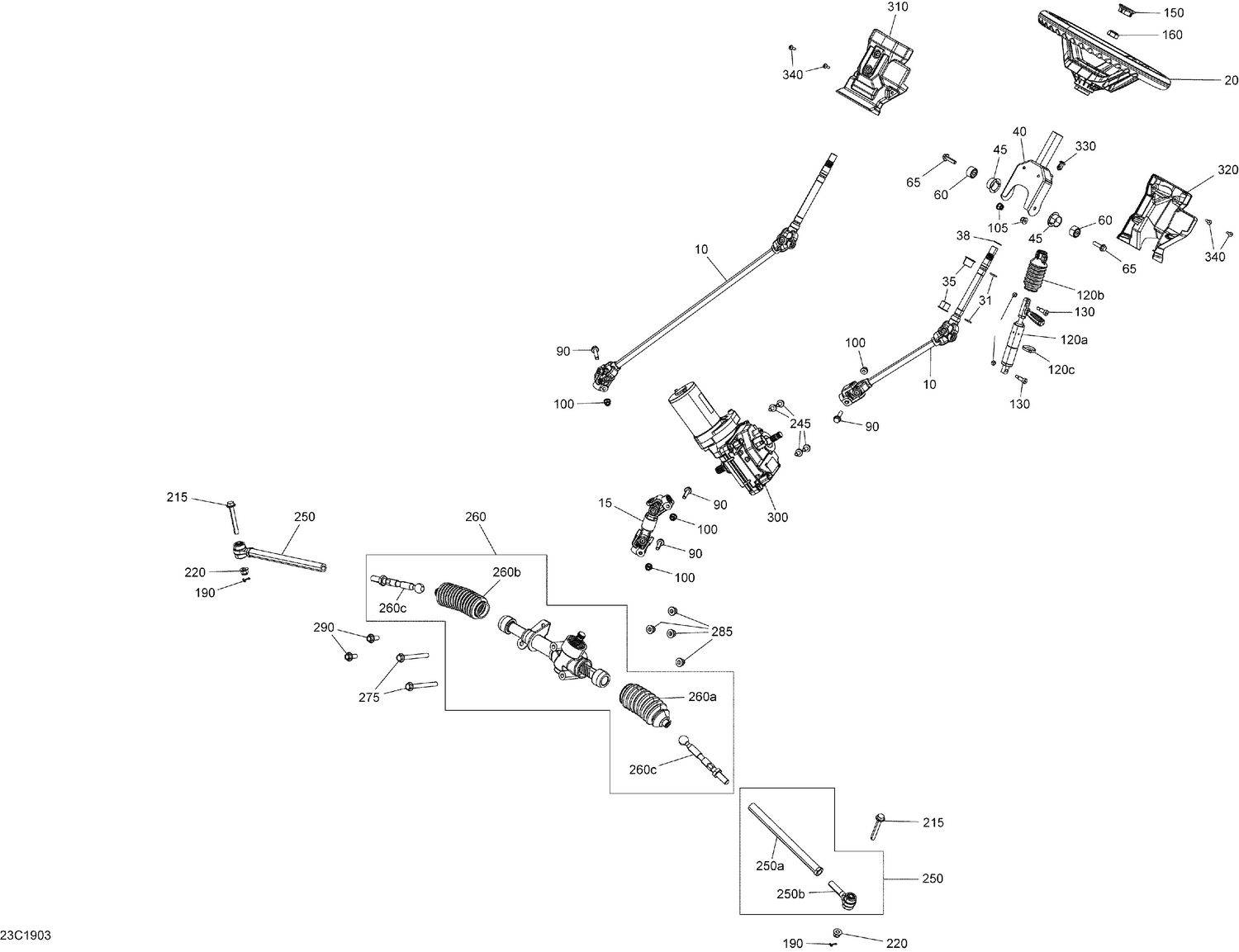

07- Steering — Parts Catalog

Ref	Part Number	Description
10	709401936	Steering Shaft
15	709402996	Lower Steering Column This part replaces 709401519.
20	709401513	Steering Wheel
31	293300144	O-Ring
35	709402725	Steering Bushing This part replaces 709401733.
38	293370110	Circlip
40	709401602	Steering Support
45	709401603	Bushing
60	709401604	Bushing
65	207683044	Hex. Flange Screw M8 X 30
90	250001021	Hex. Flange Screw M8 X 35
100	233281416	Hex. Elastic Flange Nut M8
105	233281414	Hex. Flange Elastic Nut M8
120b	709401232	Boot Tube Side
130	250000669	Socket Head Screw M8 X 16
140	232561414	Elastic Stop Nut M6
150	709401514	Steering Cap
160	232511414	Elastic Lock Nut M16
190	211400017	Cotter Pin
215	250000814	Screw Hex Cap M10 X 75
220	233201436	Hex. Flange Elastic Nut M10
245	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
250a	715900238	Steering Rod Nut
250b	709401601	Ball Joint
260a	715900235	Boot Kit, Pinion Side
260b	715900236	Boot Kit, Tube Side
260c	715900238	Steering Rod Nut
275	230500046	Hex. Screw M10 X 100, Scotch Grip
285	233101414	Hex. Flange Nut M10
290	207502546	Hex. Flange Screw M10 X 25
300	709403212	Power Steering Ass'y This part replaces 709402228.
310	707900401	Steering Box Cover
320	707900406	Steering Box Cover
330	293150230	Tuflok Plastic Rivet
