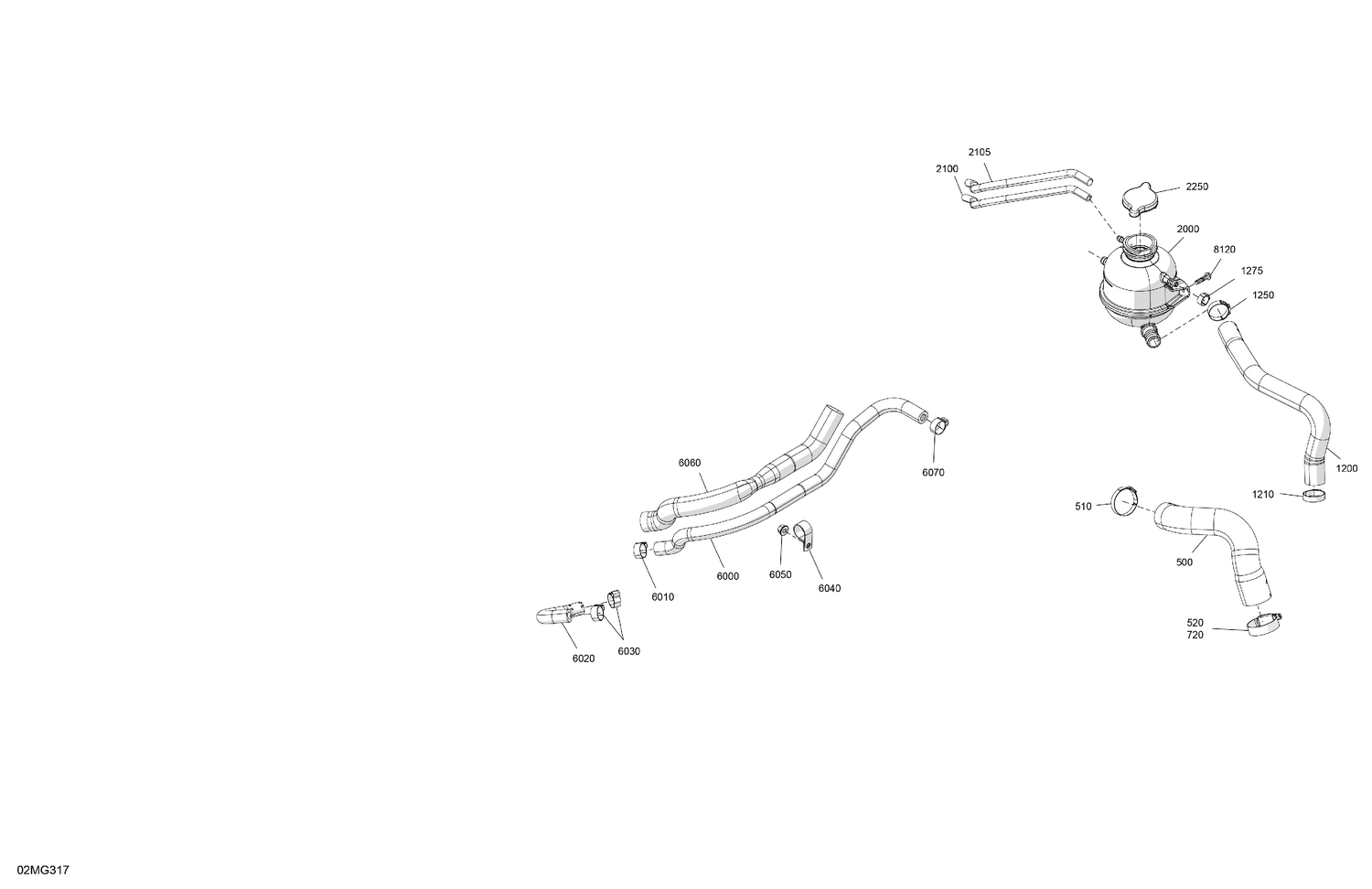

02- Engine - Cooling
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001445 | Radiator Hose |
| 510 | 293650356 | Crimp Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001453 | Hose |
| 1210 | 293650348 | Crimp Clamp |
| 1250 | 293650357 | Crimp Clamp |
| 1275 | 293650349 | Crimp Clamp |
| 2000 | 509001012 | Cooling Tank |
| 2100 | 219704706 | Hose 6 MM 15000MM Long |
| 2105 | 504153074 | Tube Protector |
| 2250 | 509001484 | Coolant Tank Cap |
| 6000 | 509001450 | Hose |
| 6010 | 293650352 | Crimp Clamp |
| 6020 | 509001447 | Hose |
| 6030 | 293650352 | Crimp Clamp |
| 6040 | 512061265 | Clamp |
| 6050 | 233061414 | Hex. Flange Nut M6 |
| 6060 | 219704350 | Tube 25Mm 1000Mm Long |
| 6070 | 293650352 | Crimp Clamp |
