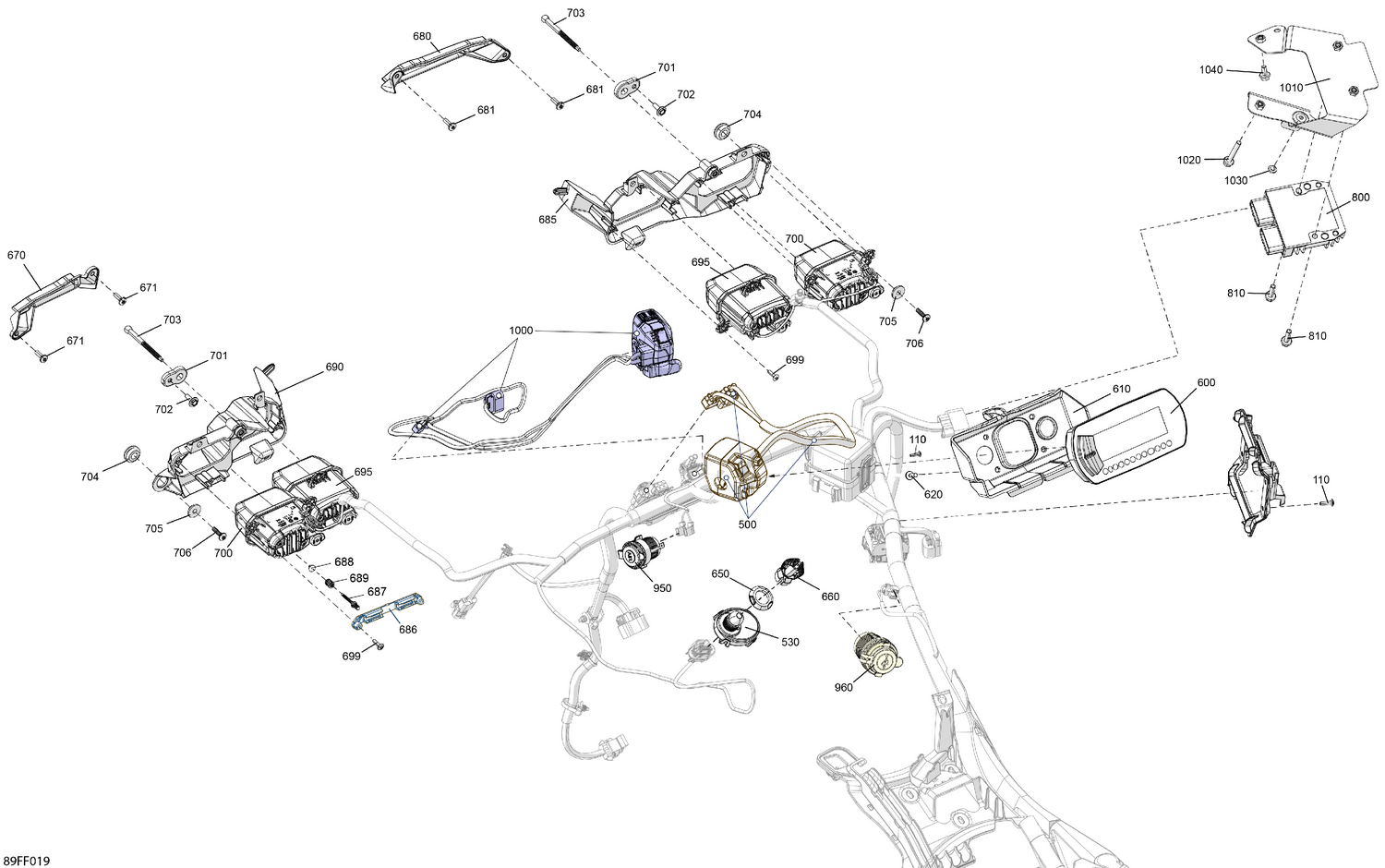

08- Electric - Front Section
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 250000759 | Torx Truss Pt K40 X 16 |
| 500 | 710006671 | LH Front Switch Housing |
| 530 | 710008832 | Terminal DESS CAN |
| 600 | 710008298 | Multifunction Compact Gauge |
| 610 | 710007694 | Int Gauge Support |
| 620 | 250000720 | Torx Screw K50 X 16 |
| 650 | 278004274 | Specialized Nut |
| 670 | 705015024 | LH Cap |
| 671 | 250000720 | Torx Screw K50 X 16 |
| 680 | 705015025 | RH Cap |
| 681 | 250000720 | Torx Screw K50 X 16 |
| 685 | 710009678 | RH Front Headlight Support |
| 686 | 517309049 | Support Pivot |
| 687 | 517309133 | Threaded Rod |
| 688 | 517309134 | Specialized Nut |
| 689 | 517309058 | Compression Spring |
| 690 | 710009677 | LH Front Headlight Support |
| 695 | 710006910 | HIgh Beam Light |
| 699 | 250000759 | Torx Truss Pt K40 X 16 |
| 700 | 710008088 | Low Beam Light |
| 701 | 293900157 | Ball Socket |
| 702 | 250000959 | Screw PT Type K-50 X 16 |
| 703 | 710005837 | Ajustment Screw |
| 704 | 705003264 | Grommet |
| 705 | 710004749 | Shoulder Bushing |
| 706 | 250000720 | Torx Screw K50 X 16 |
| 800 | 710010539 | Voltage Regulator |
| 810 | 207562544 | Hex. Flange Screw M6 X 25 |
| 950 | 710001248 | DC Outlet |
| 960 | 710008594 | USB Connector |
| 1000 | 710010573 | Accelerator Hand Lever |
| 1010 | 710009942 | Voltage Regulator Support |
| 1020 | 207664044 | Hex. Flange Screw M6 X 40 |
| 1030 | 293830229 | Rubber Stopper |
