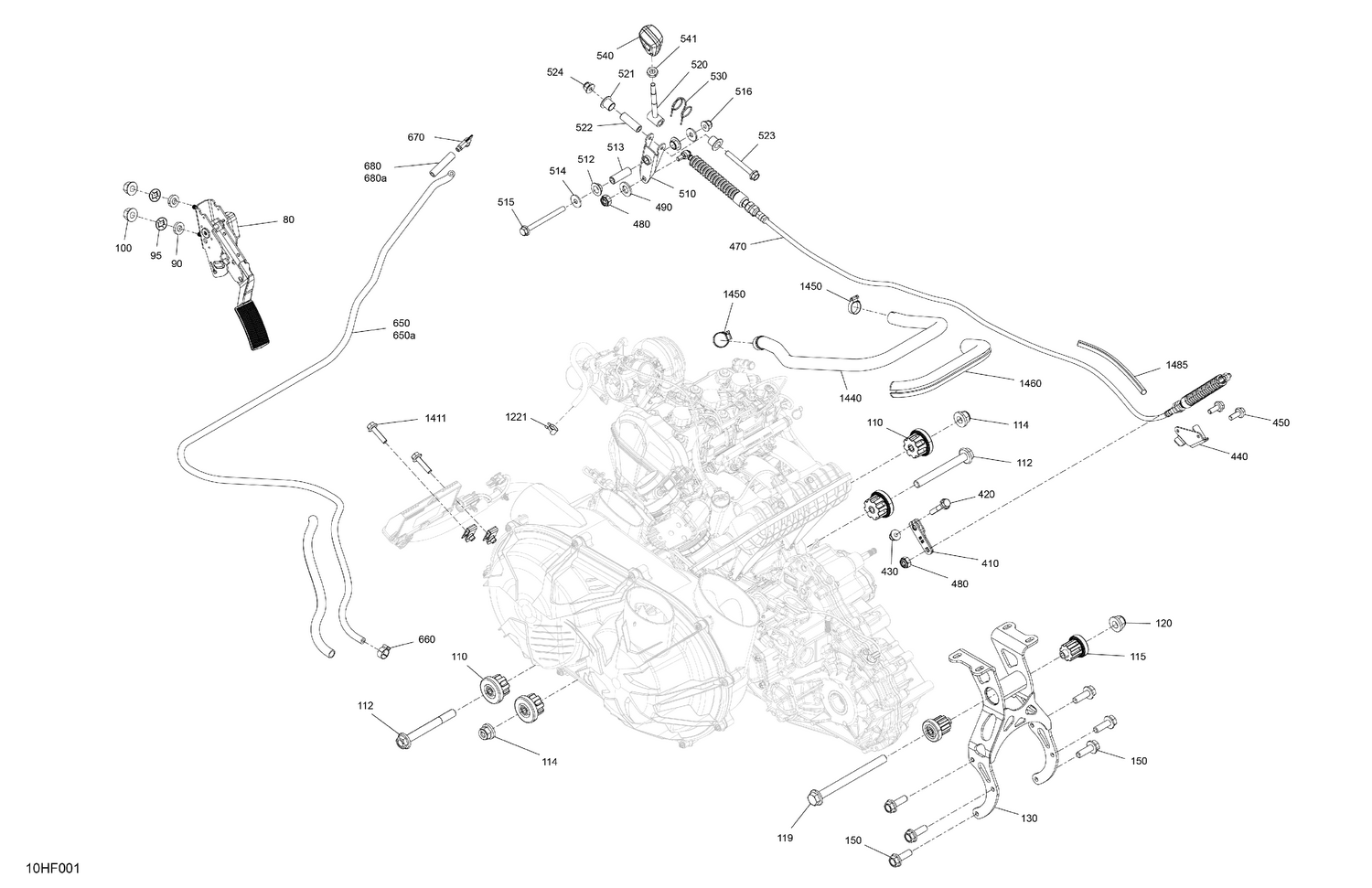

02- Engine - System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 707003505 | Accelerator Pedal |
| 90 | 707001990 | Bushing |
| 95 | 250100031 | Push Nut |
| 100 | 233081416 | Hex. Flange Nut M8 |
| 110 | 707002952 | Vibration Damper |
| 112 | 207609046 | Hex. Flange Screw M10 X 90 |
| 114 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 115 | 707002953 | Vibration Damper |
| 119 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 120 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 130 | 707001881 | Rear Engine Support |
| 150 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 410 | 707000911 | Lever |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 440 | 707001614 | Cable Support |
| 450 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 470 | 707002037 | Shifting Cable |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234001410 | Flat Washer 10 mm |
| 510 | 707000828 | Lower Lever Arm |
| 512 | 707000847 | Flanged Bushing |
| 513 | 707001376 | Bushing |
| 514 | 234062410 | Flat Washer 6 mm |
| 515 | 207667056 | Hex. Flange Screw M6 X 70 |
| 516 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 520 | 707000711 | Upper Lever Arm |
| 521 | 707000869 | Flanged Bushing |
| 522 | 707001376 | Bushing |
| 523 | 207665044 | Hex. Flange Screw M6 X 50 |
| 524 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 530 | 707000750 | Lever Arm Spring |
| 540 | 707003211 | Lever Trim |
| 541 | 232180461 | Hexagonal Jam Nut M8 |
| 650a | 219704534 | Hose 6.35MM ID |
| 660 | 293650042 | Oetiker Clamp |
| 670 | 293710223 | Pipe Elbow Fitting |
| 680a | XXX | Not Available As Spare Parts |
| 1221 | 414420700 | Spring Clamp |
| 1411 | 207662554 | Hex. Flange Screw M6 X 25 |
| 1440 | 707002452 | Crankcase Hose |
| 1450 | 293650284 | Gear Clamp |
| 1460 | 219704450 | Corrugated Sheath 23 MM ID 1000MM Long |
