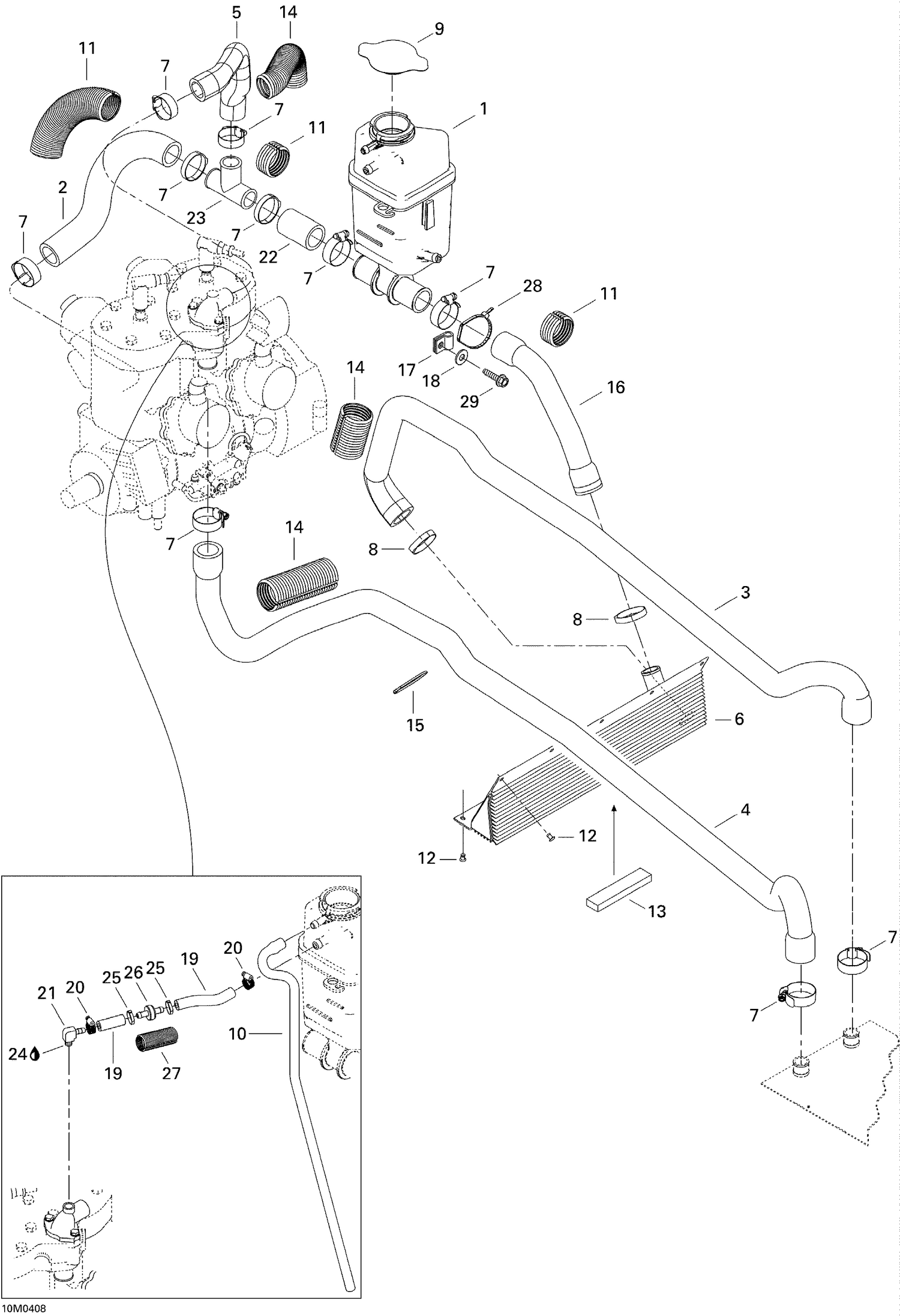

01- Cooling System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000167 | Tank Coolant |
| 2 | 509000141 | ENGINE INLET HOSE - Call your local BRP dealership |
| 3 | 509000003 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 4 | 509000145 | Radiator Outlet Hose |
| 5 | 509000142 | Hose |
| 6 | 509000146 | Front Radiator |
| 7 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 8 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 9 | 509000187 | Pressure Cap |
| 10 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 11 | 219704413 | Was 415084700 Protective Shield |
| 12 | 390402200 | Pop Rivet 3/16" |
| 13 | 219704364 | Neoprene Seal (1PAC=3M) |
| 14 | 219704402 | Tubing 25 MM 1000MM Long |
| 15 | 293750008 | Tie Wrap 368 mm |
| 16 | 509000144 | RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 19 | 509000093 | Hose 8 mm |
| 20 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 21 | 293700020 | Elbow Fitting 90° |
| 22 | 509000143 | Hose |
| 23 | 509000219 | T-Fitting This part replaces 414619900. |
| 24 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 25 | 293650053 | Crimp Clamp |
| 26 | 509000153 | Check Valve |
| 27 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 28 | 509000165 | Tie Rap |
