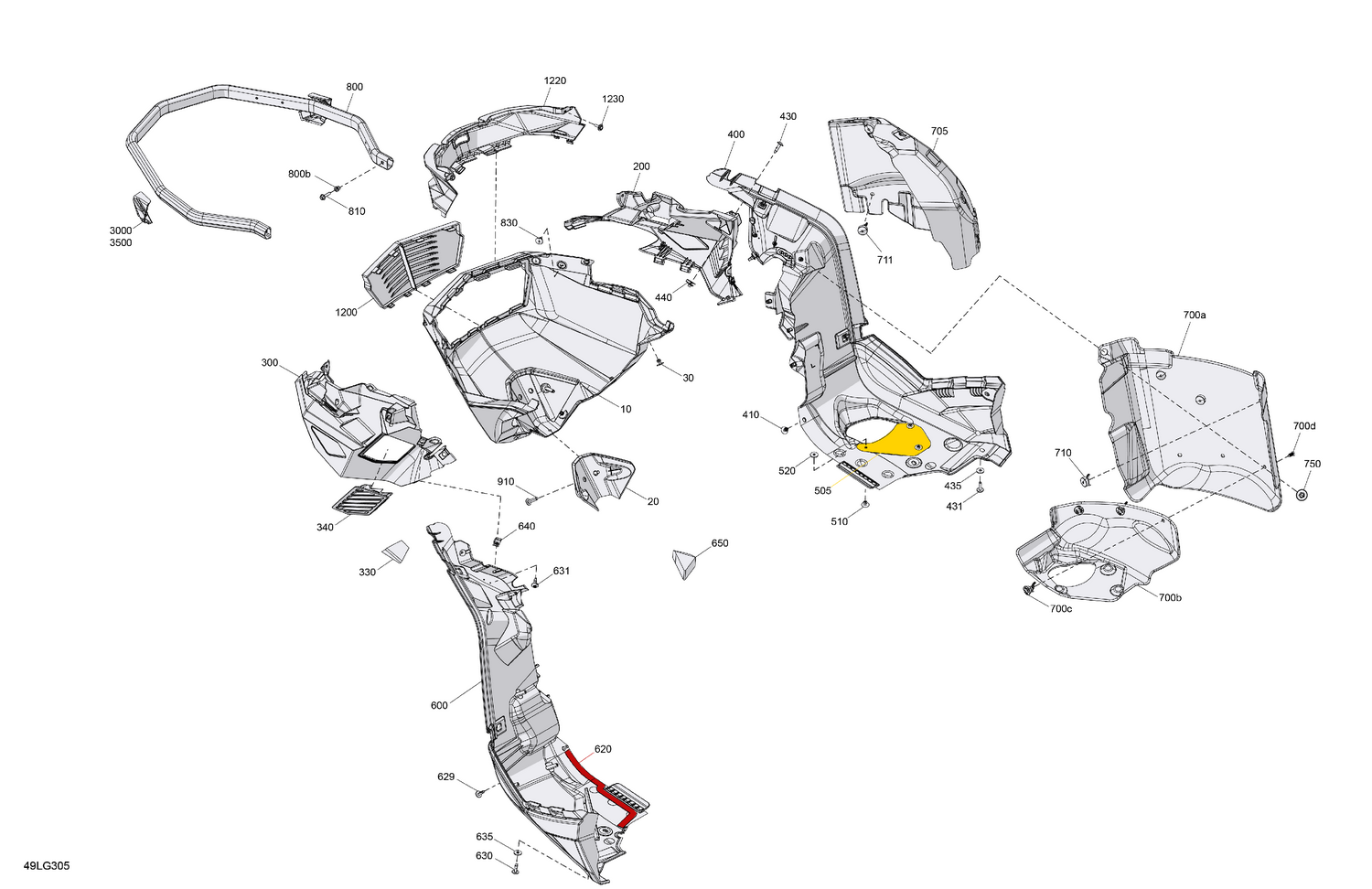

| Ref | Part Number | Description |
|---|
| 10 |
502008525 |
Deep Black, Front Bottom Pan |
| 20 |
502008466 |
Skid Plate |
| 30 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 200 |
502008611 |
Deep Black, RH Bottom Pan Cap |
| 300 |
502008612 |
Deep Black, LH Bottom Pan Cap |
| 330 |
502008721 |
LH Front Heat Shield |
| 340 |
502008605 |
Deep Black, LH Front Air Inlet Grille |
| 400 |
502008456 |
RH Lateral Bottom Pan |
| 410 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 430 |
250001232 |
Screw Torx M5 X 20 |
| 431 |
250000586 |
Torx Truss M5 X 20 |
| 435 |
250200025 |
Washer M5 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 505 |
502009011 |
Plate |
| 510 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 520 |
517124300 |
Washer |
| 600 |
502008576 |
Deep Black, LH Bottom Pan |
| 620 |
293250427 |
Neoprene Seal |
| 629 |
250001232 |
Screw Torx M5 X 20 |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250001232 |
Screw Torx M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 650 |
502008409 |
Foam |
| 700a |
502008860 |
Acoustic Panel |
| 700b |
502008862 |
RH Lower Acoustic Panel |
| 700c |
502008753 |
Stopper |
| 700d |
293730062 |
Dart |
| 705 |
502008867 |
Acoustic Panel |
| 710 |
502008752 |
Stopper |
| 711 |
502008752 |
Stopper |
| 750 |
508000853 |
Push Nut |
| 800b |
293450268 |
Insert M5 X 0.8 |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 910 |
250000758 |
Torx Screw M6 X 25 |
| 1200 |
502008245 |
Lower Prefilter Grille |
| 1220 |
502008617 |
Upper Prefilter Grille |
| 1230 |
250000725 |
Screw M4 X 16 |
| 3000 |
502008363 |
Deep Black, LH Front Cap |
