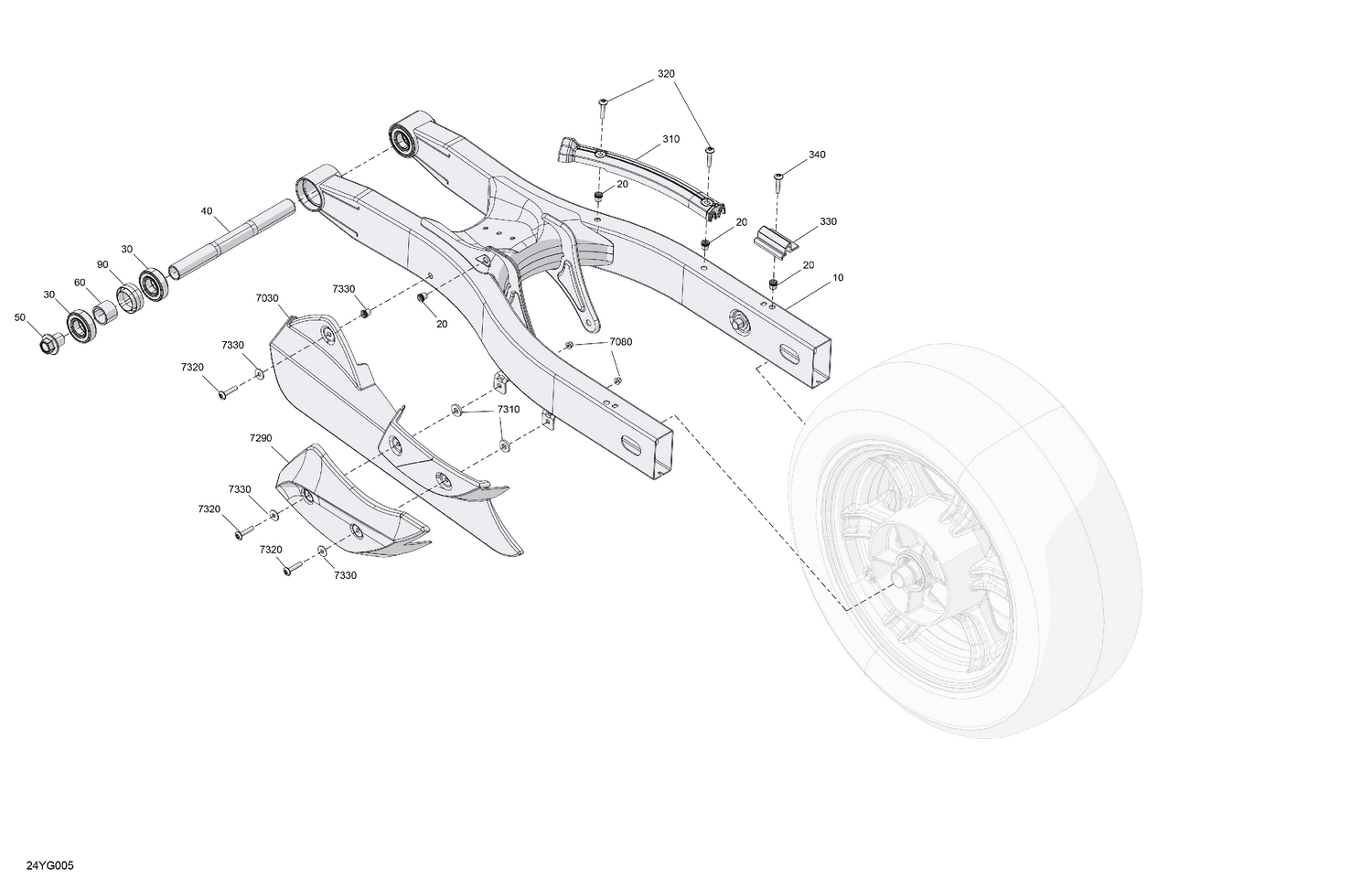

05- Suspension - Rear
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706001574 | Swing Arm |
| 20 | 293450275 | Insert |
| 30 | 293350153 | Ball Bearing |
| 40 | 706001182 | Swing Arm Axle |
| 50 | 706001579 | Bolt M20 |
| 60 | 706001152 | Spacer |
| 90 | 706001366 | Sleeve |
| 310 | 710004281 | Protector |
| 320 | 250000843 | Torx Truss Screw M6 X 30 |
| 330 | 710002145 | Hose Support |
| 340 | 250000843 | Torx Truss Screw M6 X 30 |
| 7030 | 705002092 | Lower Belt Guard |
| 7080 | 233261494 | Hex. Flange Elastic Nut M6 |
| 7290 | 705009446 | Belt Guard Moulding |
| 7310 | 705015250 | Self-Adhesive Spacer |
| 7320 | 250000842 | Stainless, Torx Screw M6 X 30 |
