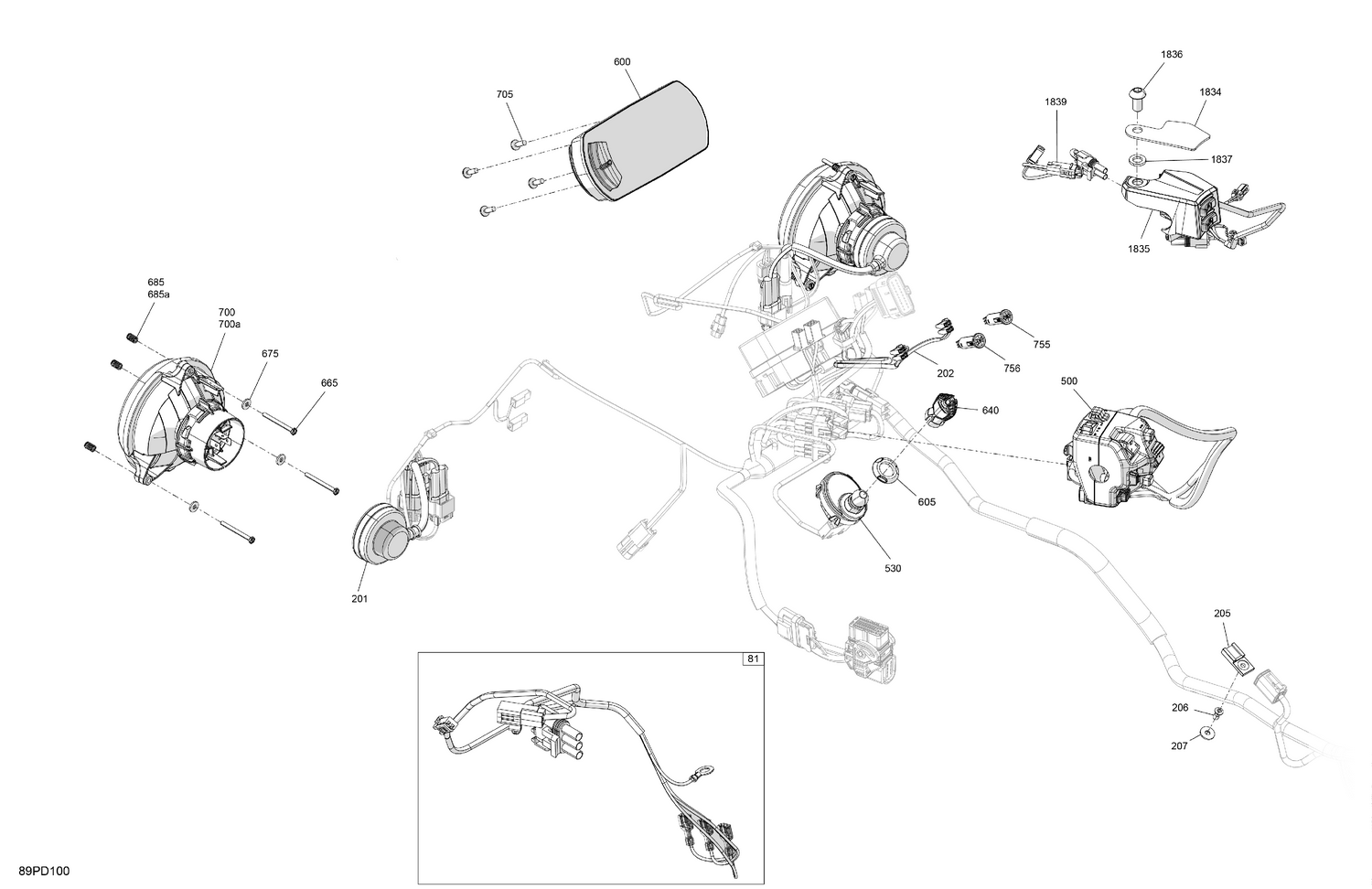

08- Electric - Front Section
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 81 | 710008412 | Winch Wiring Harness |
| 201 | 710005780 | Light Cable |
| 202 | 710007825 | Tell Tale Wiring Harness |
| 205 | 270000141 | Clip |
| 206 | 293150301 | Pop Rivet 3/16 X ,551 |
| 207 | 391301600 | Washer |
| 500 | 710006672 | LH Front Switch Housing |
| 530 | 515179305 | Terminal DESS One Wire |
| 600 | 710008298 | Multifunction Compact Gauge |
| 605 | 278004274 | Specialized Nut |
| 640 | 710004964 | Grey Key RFID |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685a | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 1834 | 715004008 | Top Plate |
| 1835 | 710004990 | Multifonction Housing Ass'y |
| 1836 | 710005908 | Screw M10 X1.25 X 20 BHCS S.Grip |
| 1837 | 503192496 | Washer |
