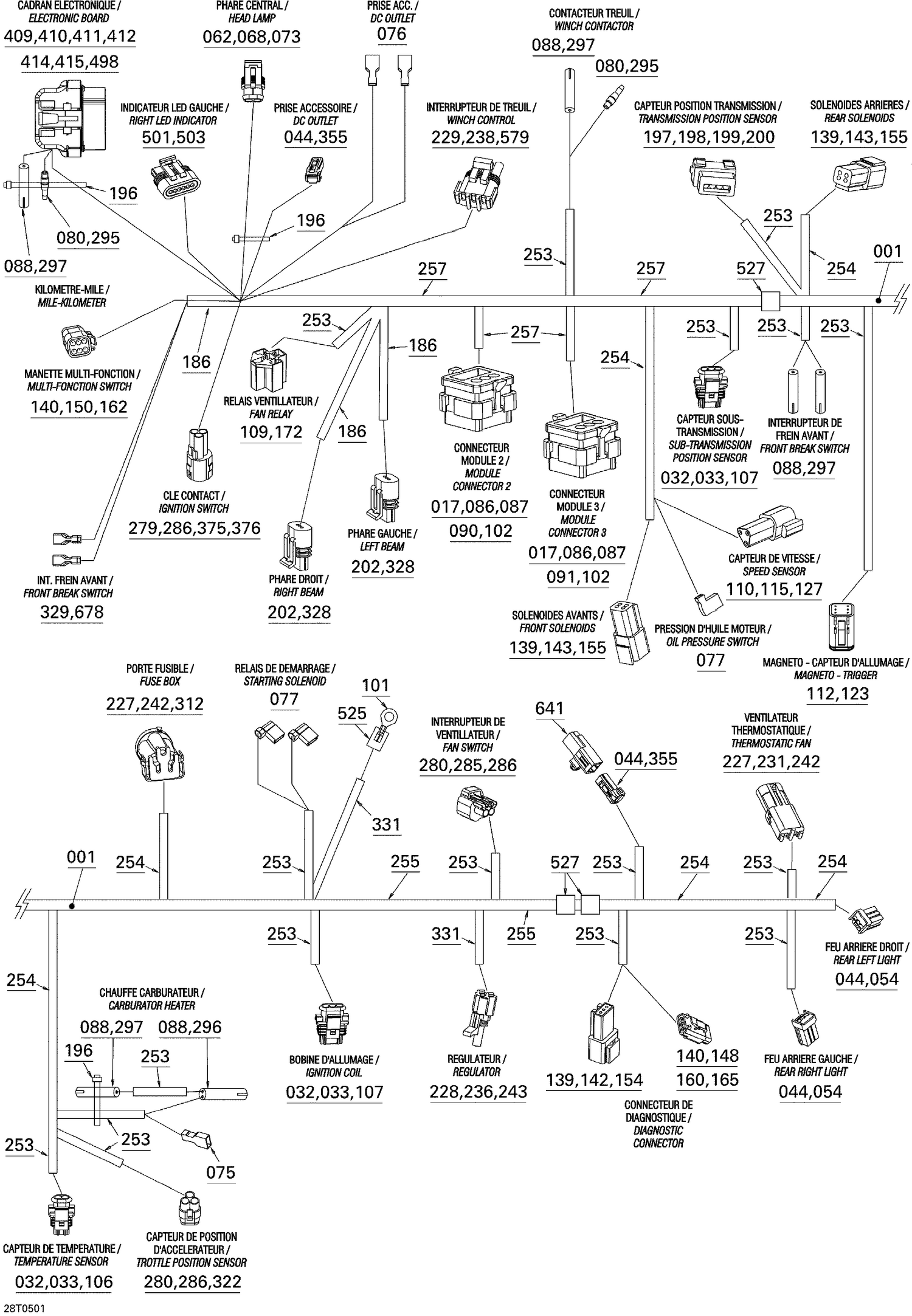

| Ref | Part Number | Description |
|---|
| 017 |
278000996 |
WIRE SEAL - Call your local BRP dealership |
| 032 |
278000998 |
Female Terminal |
| 033 |
278000999 |
Wire Seal |
| 044 |
515175231 |
Female Terminal |
| 054 |
515175495 |
Female Housing, 3 Circuits |
| 062 |
278001014 |
Female Terminal |
| 068 |
409209500 |
Female Housing, 2 Circuits |
| 073 |
278001013 |
Wire Seal |
| 075 |
409010700 |
Female Terminal |
| 076 |
409010800 |
Female Terminal |
| 077 |
409010300 |
Female Terminal |
| 080 |
278000230 |
Male Terminal |
| 086 |
278000995 |
FEMALE TERMINAL - Call your local BRP dealership |
| 087 |
278000994 |
FEMALE TERMINAL - Call your local BRP dealership |
| 088 |
278001009 |
Female Terminal |
| 090 |
278001062 |
Male Terminal Housing, 26 Circuits |
| 091 |
278001063 |
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership |
| 101 |
278001392 |
Open Barrel Terminal |
| 102 |
293000070 |
SEALING CAP - Call your local BRP dealership |
| 106 |
278001005 |
Male Housing, 2 Circuits |
| 107 |
278000997 |
Male Housing, 3 Circuits |
| 109 |
409209900 |
Female Housing, 5 Circuits |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 115 |
278002378 |
Male Housing This part replaces 409207000. |
| 123 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 139 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 140 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 142 |
710000044 |
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 143 |
710000045 |
MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 148 |
515175249 |
FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership |
| 150 |
409015400 |
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 154 |
710000043 |
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership |
| 155 |
710000046 |
MALE LOCK, 4 CIRCUITS - Call your local BRP dealership |
| 160 |
515175248 |
Female Lock, 3 Circuits |
| 162 |
409014900 |
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 165 |
515175303 |
PLUG - Call your local BRP dealership |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 186 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 197 |
710000051 |
Female Terminal |
| 198 |
710000032 |
Female Terminal Housing, 4 Circ. |
| 199 |
710000050 |
WIRE SEAL - Call your local BRP dealership |
| 200 |
710000049 |
Cap |
| 202 |
278001114 |
Female Terminal |
| 227 |
409004300 |
Male Terminal |
| 228 |
409007300 |
Female Terminal |
| 229 |
278000223 |
Female Terminal |
| 231 |
278000217 |
Female Housing, 2 Circuits |
| 236 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 238 |
278000273 |
Male Housing, 3 Circuits |
| 242 |
278000218 |
Wire Seal |
| 243 |
710000048 |
Wire Seal |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 279 |
409011300 |
Male Terminal |
| 280 |
409012100 |
Female Terminal |
| 285 |
710000078 |
HOUSING-TAB - Call your local BRP dealership |
| 286 |
409012300 |
Seal |
| 295 |
278001008 |
Insulated Sheath |
| 296 |
278000770 |
Insulated Sheath |
| 297 |
278001007 |
Insulated Sheath |
| 312 |
710000107 |
MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership |
| 322 |
710000153 |
Female Terminal Housing, 3 Circ. |
| 328 |
278001467 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 329 |
710000082 |
Female Terminal |
| 331 |
219704446 |
PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 375 |
710000218 |
Male Terminal |
| 376 |
710000219 |
HOUSING-TAB - Call your local BRP dealership |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 414 |
515175805 |
LOCK - Call your local BRP dealership |
| 415 |
515175806 |
Female Terminal |
| 498 |
710000399 |
Female Housing |
| 501 |
710000412 |
FEMALE TERMINAL - Call your local BRP dealership |
| 503 |
710000414 |
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 525 |
710000482 |
SHRINK TUBING - Call your local BRP dealership |
| 527 |
710000484 |
Shrink Tubing |
| 579 |
710000504 |
Wire Seal |
| 641 |
710000667 |
Male Housing, 2 Circuits |
