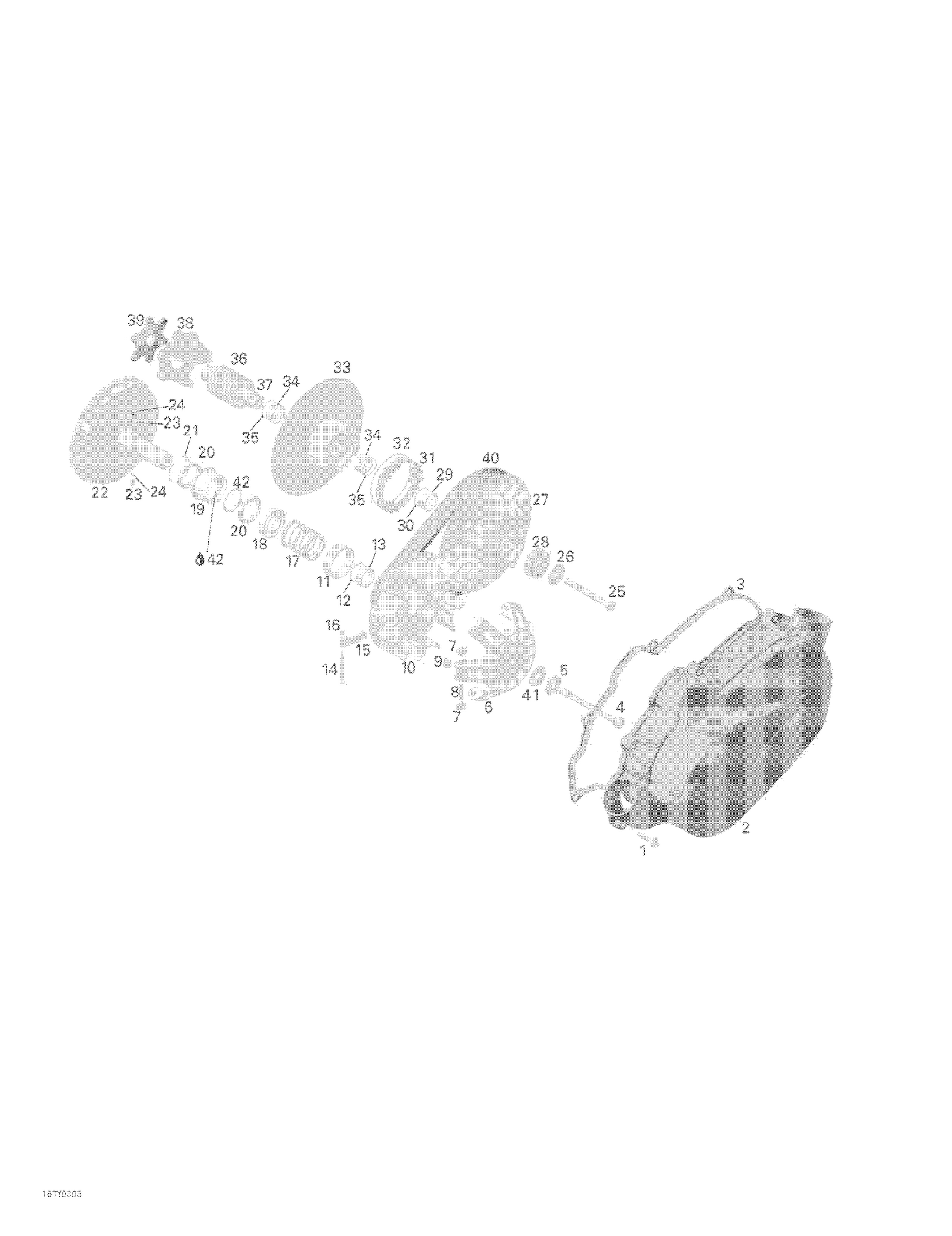

| Ref | Part Number | Description |
|---|
| 1 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420641268. |
| 2 |
420610420 |
CVT COVER - Call your local BRP dealership |
| 3 |
420630290 |
CVT Cover Gasket |
| 4 |
420641812 |
Hex. Screw M12 X 140 |
| 5 |
420627760 |
Spring Washer |
| 6 |
Not |
Available As Spare Part - Governor cup |
| 7 |
420281296 |
Slider Shoe Set This part replaces 420281290. |
| 8 |
417223257 |
Roller Axle This part replaces 420233890. |
| 9 |
417223767 |
Roller This part replaces 420229585. |
| 10 |
Not |
Available As Spare Part - Outer half |
| 11 |
Not |
Available As Spare Part - Bushing |
| 12 |
Not |
Available As Spare Part - Retaining ring |
| 13 |
Not |
Available As Spare Part - Bushing |
| 14 |
Not |
Available As Spare Part - Bearing screw M5 |
| 15 |
Not |
Available As Spare Part - Lever |
| 16 |
Not |
Available As Spare Part - Lock nut M5 |
| 17 |
420238166 |
Compression Spring This part replaces 420238161. |
| 18 |
420627578 |
Seat Spring This part replaces 420627574. |
| 19 |
420257439 |
Clutch This part replaces 420257430. |
| 20 |
420632377 |
Ball Bearing This part replaces 420632371. |
| 21 |
420245951 |
Retaining Ring This part replaces 420245950. |
| 22 |
420280245 |
Inner half ass'y |
| 23 |
420229577 |
Spring Sleeve This part replaces 420229576. |
| 24 |
420239131 |
COMPRESSION SPRING - Call your local BRP dealership This part replaces 420239130. |
| 25 |
420441485 |
Hex. Screw M10 X 110 This part replaces 420941906. |
| 26 |
420627594 |
Thrust Washer This part replaces 420627590. |
| 27 |
Not |
Available As Spare Part - Outer half |
| 28 |
420932421 |
Ball Bearing This part replaces 420932426. |
| 29 |
Not |
Available As Spare Part - Bushing |
| 30 |
Not |
Available As Spare Part - Retaining ring |
| 31 |
420660120 |
TORQUE GEAR - Call your local BRP dealership |
| 32 |
420245911 |
Retaining Ring This part replaces 420245910. |
| 33 |
Not |
Available As Spare Part - Inner half |
| 34 |
Not |
Available As Spare Part - Bushing |
| 35 |
Not |
Available As Spare Part - Retaining ring |
| 36 |
420238340 |
COMPRESSION SPRING - Call your local BRP dealership |
| 37 |
420220913 |
Driven Pulley Shaft This part replaces 420220911. |
| 38 |
420280250 |
Cam |
| 39 |
420627586 |
Cam Plate This part replaces 420627582. |
| 40 |
422280283 |
Drive Belt This part replaces 420280280. |
| 41 |
420627920 |
Thrust Washer |
