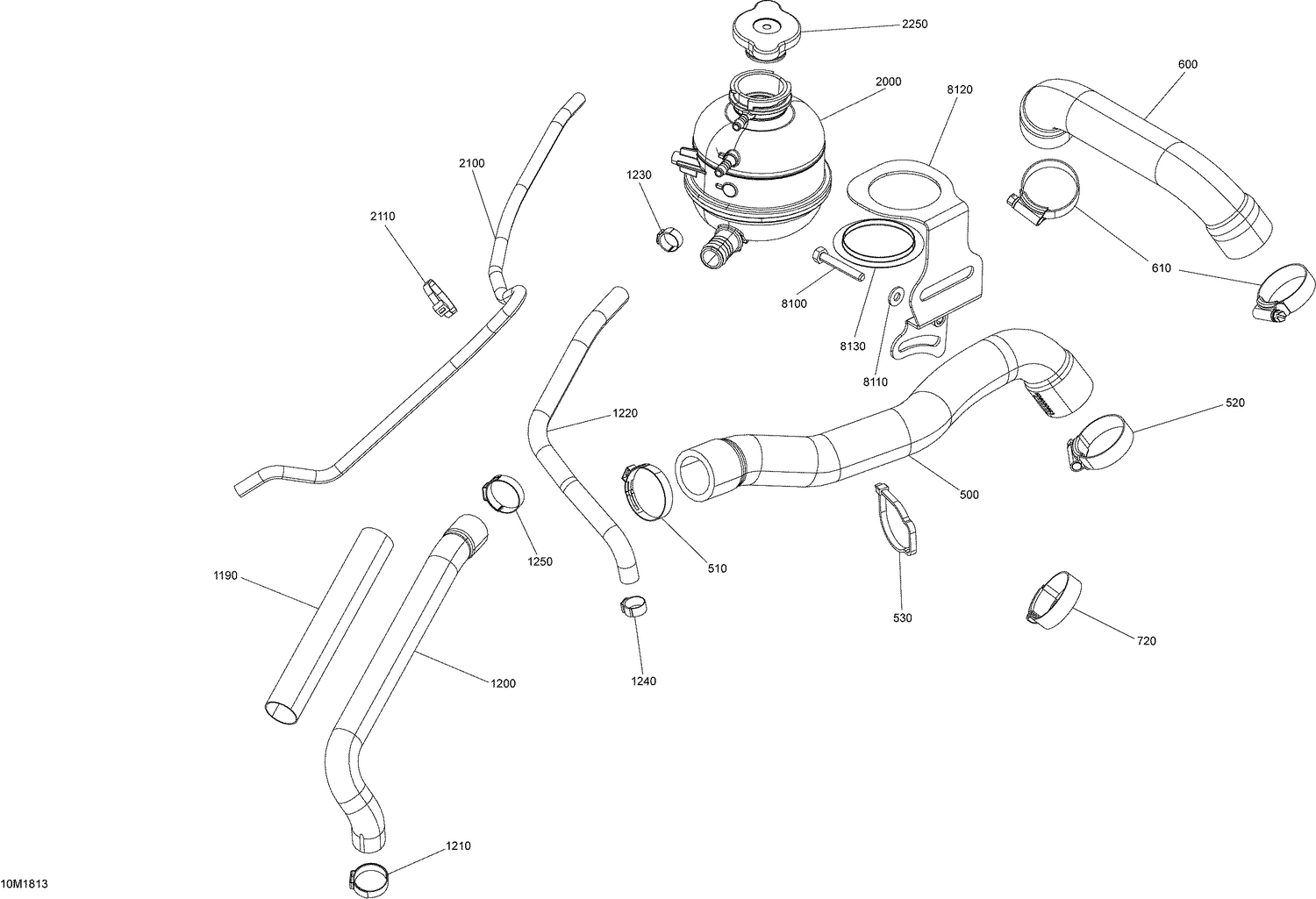

01- Cooling - 600 RS
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509000963 | Cooling Hose |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 530 | 293750008 | Tie Wrap 368 mm |
| 610 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1190 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1200 | 509001141 | Hose This part replaces 509000967. |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509000968 | Cooling Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 2000 | 509001055 | Coolant Tank |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2110 | 414115200 | Tie-Rap 180 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
| 8100 | 207064044 | Hex. Screw M6 X 40 |
| 8110 | 250200039 | Flat Washer |
| 8120 | 518330338 | COOLANT TANK SUPPORT - Call your local BRP dealership |
