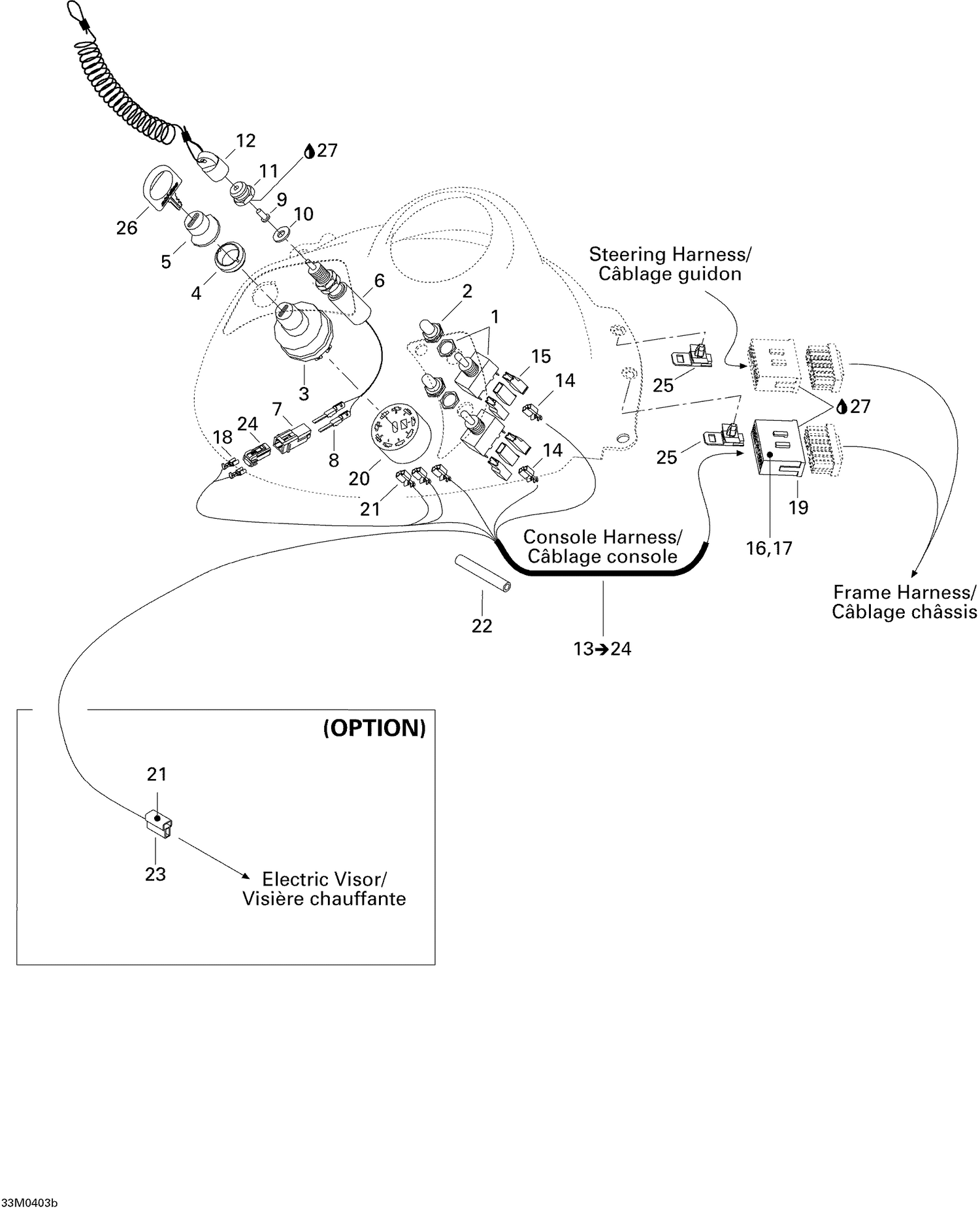

| Ref | Part Number | Description |
|---|
| 1 |
410107300 |
Switch (Heating Grip) |
| 2 |
515175281 |
Switch Cover |
| 3 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 4 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 5 |
570013700 |
Switch Boot |
| 6 |
515175653 |
Brake Switch |
| 7 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 8 |
515175232 |
Male Terminal |
| 9 |
570151100 |
Plunger Cap |
| 10 |
Not |
Available As Spare Part - Washer |
| 11 |
515145900 |
Switch Nut |
| 12 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 14 |
409010100 |
Female Terminal |
| 15 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 16 |
515175232 |
Male Terminal |
| 17 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 18 |
515175231 |
Female Terminal |
| 19 |
515175351 |
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 20 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 21 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 22 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 23 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 24 |
515175658 |
Female Housing, 2 Circuits |
| 25 |
515175283 |
Housing Support |
| 26 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
