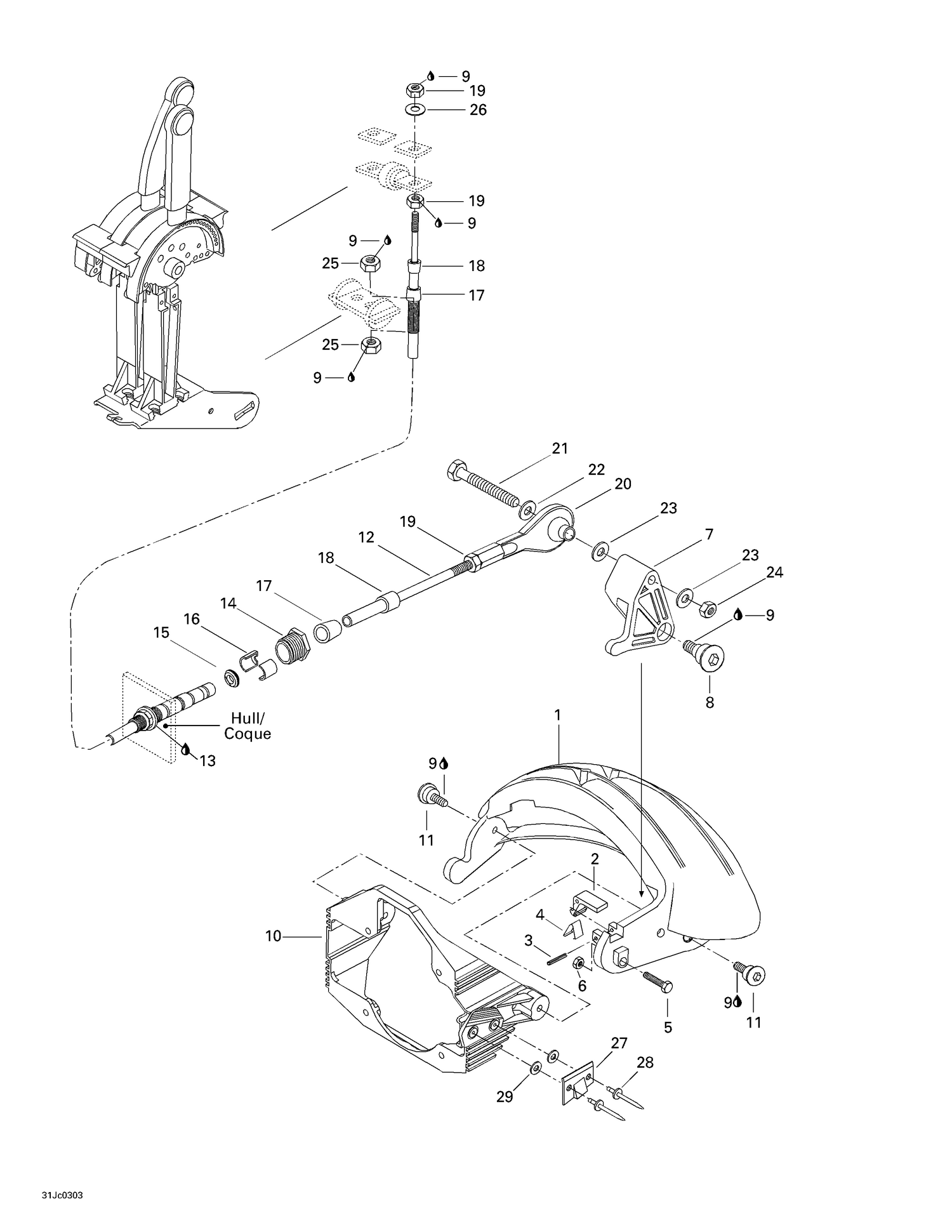

05- Reverse
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 271000947 | REVERSE GATE - Call your local BRP dealership |
| 2 | 271000430 | HOOK LEVER - Call your local BRP dealership |
| 3 | 211400009 | Pin |
| 4 | 271000431 | Spring |
| 5 | 207162060 | Hex. Forming Screw M6 X 20 |
| 6 | 232561600 | Hex. Elastic Stop Nut M6 |
| 7 | 271000583 | CABLE LEVER - Call your local BRP dealership |
| 8 | 211000077 | SCREW-SHOULDER M8 - Call your local BRP dealership |
| 9 | 293800060 | Loctite 243, 10 ml |
| 10 | 271000778 | REVERSE GATE SUPPORT - Call your local BRP dealership |
| 11 | 211000007 | Screw |
| 12 | 204170044 | RH REVERSE CABLE - Call your local BRP dealership |
| 13 | 296000309 | Silicone Sealant 51388, 300 ml |
| 14 | 277001729 | Steering Cable Lock This part replaces 277000052. |
| 15 | 211100009 | RUBBER WASHER - Call your local BRP dealership |
| 16 | 277000055 | Half Ring |
| 17 | 277000473 | Boot, Large |
| 18 | 277000466 | Boot, Small |
| 19 | 212100005 | Hex. Nut |
| 20 | 204170062 | BALL JOINT - Call your local BRP dealership |
| 21 | 207066060 | HEX. SCREW M6 X 60 - Call your local BRP dealership |
| 22 | 234062600 | Flat Washer M6, Stainless |
| 23 | 234061600 | Stainless Flat Washer M6 |
| 24 | 232561600 | Hex. Elastic Stop Nut M6 |
| 25 | 212100006 | Hex. Jam Nut |
| 26 | 211200019 | FLAT WASHER - Call your local BRP dealership |
| 27 | 271000485 | STOP PAWL - Call your local BRP dealership |
| 28 | 293150043 | Pop Rivet 3/16" |
