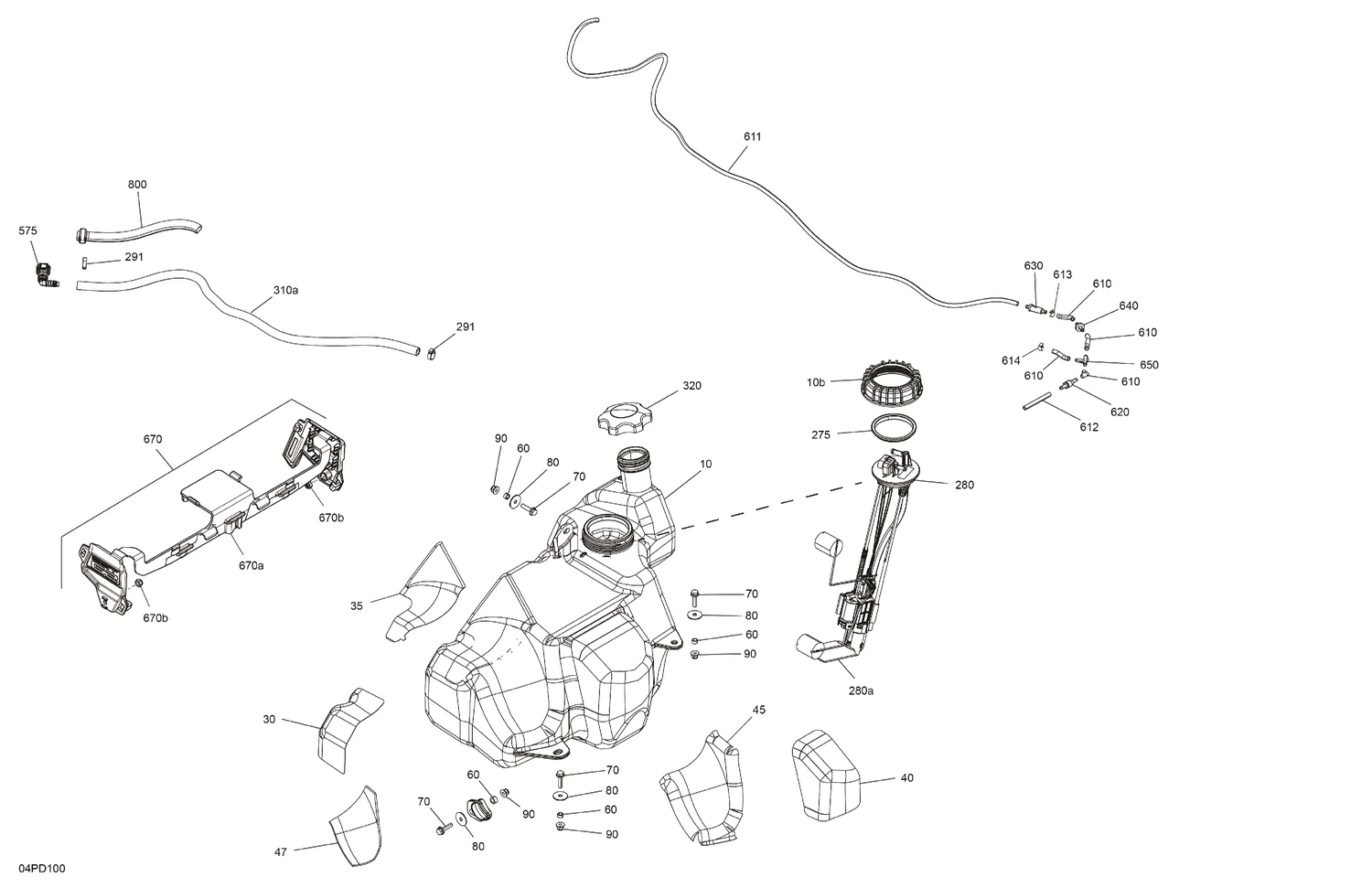

02- Engine - Fuel
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 709000328 | Fuel Pump Module Nut |
| 30 | 709000381 | Heat Reflective Sheet |
| 35 | 709000387 | Heat Reflective Sheet |
| 40 | 709001071 | Heat Reflective Sheet |
| 45 | 709000388 | Heat Reflective Sheet |
| 47 | 709000528 | Heat shield |
| 60 | 293900104 | Bushing |
| 70 | 207662544 | Hex. Flange Screw M6 X 25 |
| 80 | 224060251 | Washer |
| 90 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 275 | 709000208 | Seal |
| 280a | 715900677 | Prefilter Fuel Pump Kit 125mm Long |
| 291 | 293650053 | Crimp Clamp |
| 310a | 219704475 | Hose 7,94 MM ID 3000MM Long |
| 320 | 513033025 | Fuel Tank Cap |
| 575 | 275500700 | Quick Attach 90° |
| 610 | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704477. |
| 611 | 219704389 | Polyurethane Hose 4000MM Long |
| 612 | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704477. |
| 613 | 414415200 | Spring Clamp |
| 614 | 293650042 | Oetiker Clamp |
| 620 | 513033469 | Check Valve |
| 630 | 709001120 | Filter |
| 640 | 275500398 | Check Valve |
| 650 | 293710059 | Y-Fitting |
| 670a | 709000359 | Hose Support Ass'y |
| 670b | 232561600 | Hex. Elastic Stop Nut M6 |
