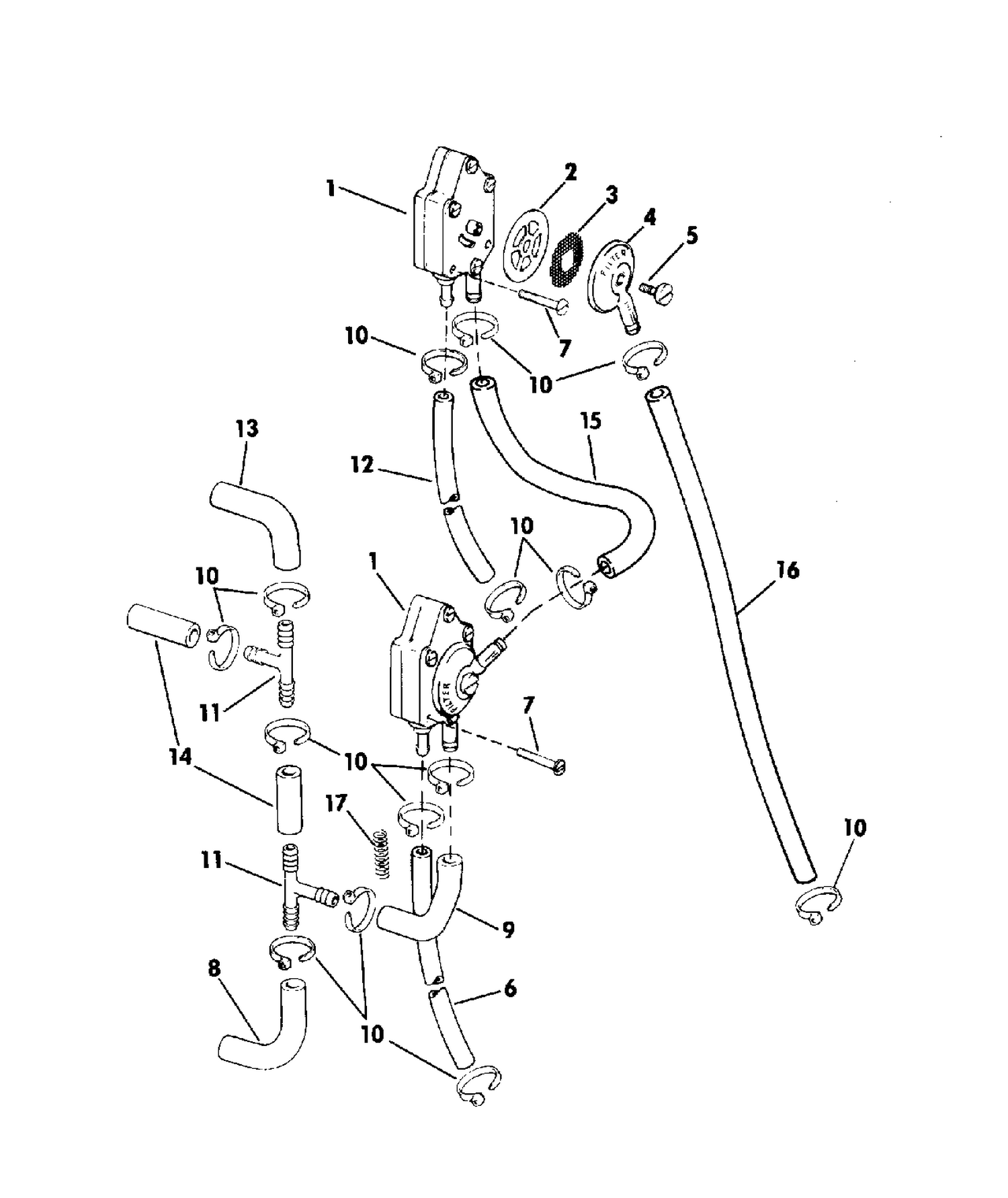

| Ref | Part Number | Description |
|---|
| 1 |
0389440 |
FUEL PUMP ASSY., Lower |
| 1 |
0438559 |
FUEL PUMP ASSY., Lower This part replaces 0388555. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 |
0322759 |
CAP, Filter |
| 6 |
HOSE, |
Pump to crankcase |
| 7 |
0328717 |
NUT, Ground lead This part replaces 0308777. |
| 8 |
0324079 |
HOSE, Carb to tee |
| 9 |
0333446 |
FLEXIBLE, entrée d'eau This part replaces 0320947. |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0319741 |
TEE |
| 13 |
0322701 |
HOSE, Carb to tee, upper |
| 14 |
HOSE, |
Tee |
| 15 |
HOSE, |
Upper to lower pump |
| 16 |
0333632 |
HOSE, Connector to filter This part replaces 0324370. |
