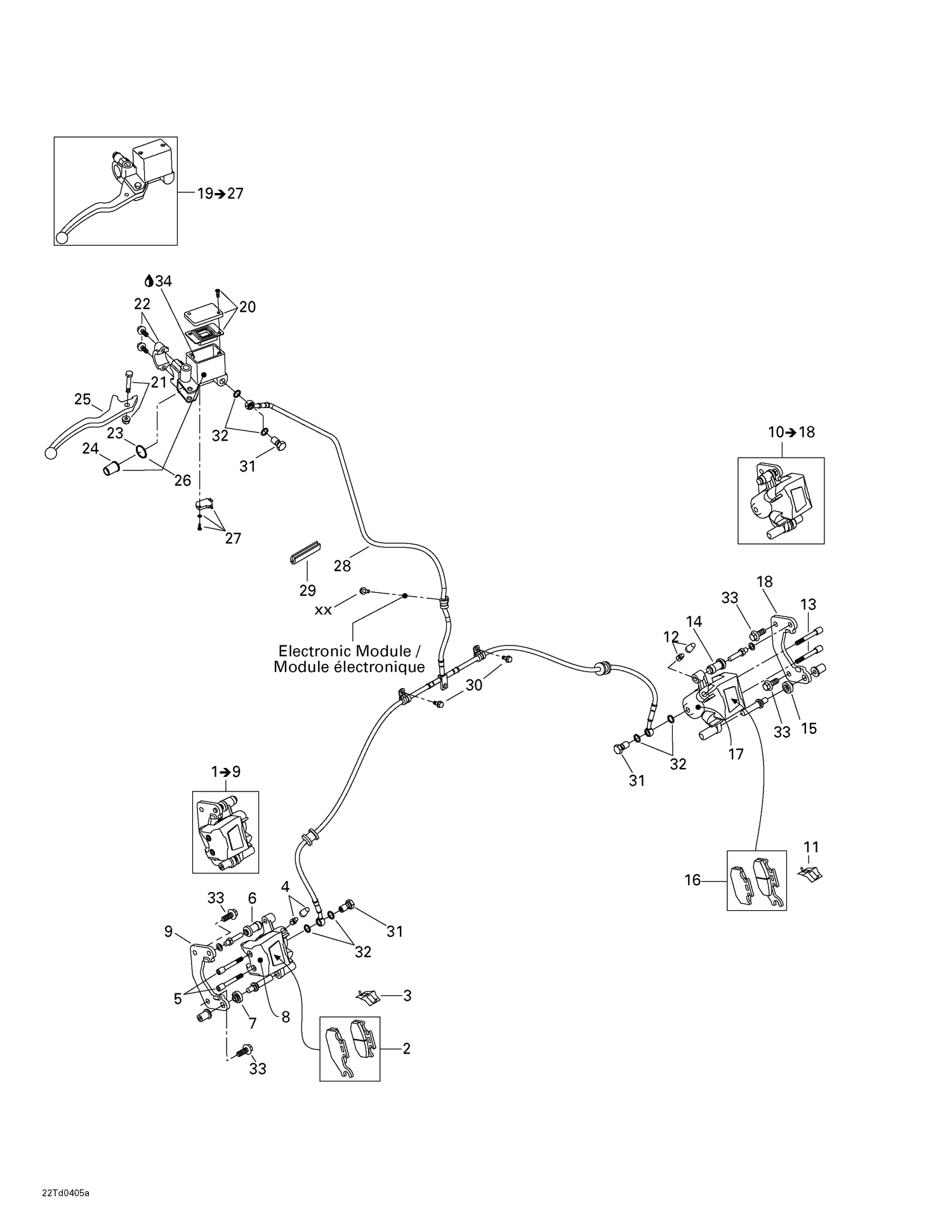

06- Hydraulic Front Brake
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705600004 | Brake Pad Kit |
| 3 | 705600079 | Spring |
| 4 | 705600080 | Bleeding Screw |
| 5 | 705600081 | Pin Set (2) |
| 6 | 705600082 | Compression Boot |
| 7 | 705600083 | Compression Boot |
| 8 | 705600078 | Piston Set |
| 9 | 705600149 | Lining Support |
| 11 | 705600079 | Spring |
| 12 | 705600080 | Bleeding Screw |
| 13 | 705600081 | Pin Set (2) |
| 14 | 705600082 | Compression Boot |
| 15 | 705600083 | Compression Boot |
| 16 | 705600014 | Brake Pad Kit |
| 17 | 705600078 | Piston Set |
| 18 | 705600149 | Lining Support |
| 20 | 705600084 | Cap Set |
| 21 | 705600085 | BOLT KIT - Call your local BRP dealership |
| 22 | 705600087 | BRACKET KIT - Call your local BRP dealership |
| 23 | 705600088 | CIRCLIP - Call your local BRP dealership |
| 24 | 705600089 | COMPRESSION BOOT - Call your local BRP dealership |
| 25 | 705600164 | LEVER ARM - Call your local BRP dealership |
| 26 | 705600152 | PISTON KIT - Call your local BRP dealership |
| 27 | 705600148 | SWITCH KIT - Call your local BRP dealership |
| 28 | 705600290 | Brake Hose |
| 29 | 219704405 | TRIM 30000MM LONG - Call your local BRP dealership |
| 30 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 31 | 705600609 | Banjo Bolt (M10 x 1.25 thread) This part replaces 705600056. |
| 32 | 414920600 | Washer |
| 33 | 250000057 | Hex. Screw M10 X 20, Scotch Grip |
| 34 | 293600063 | BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership |
