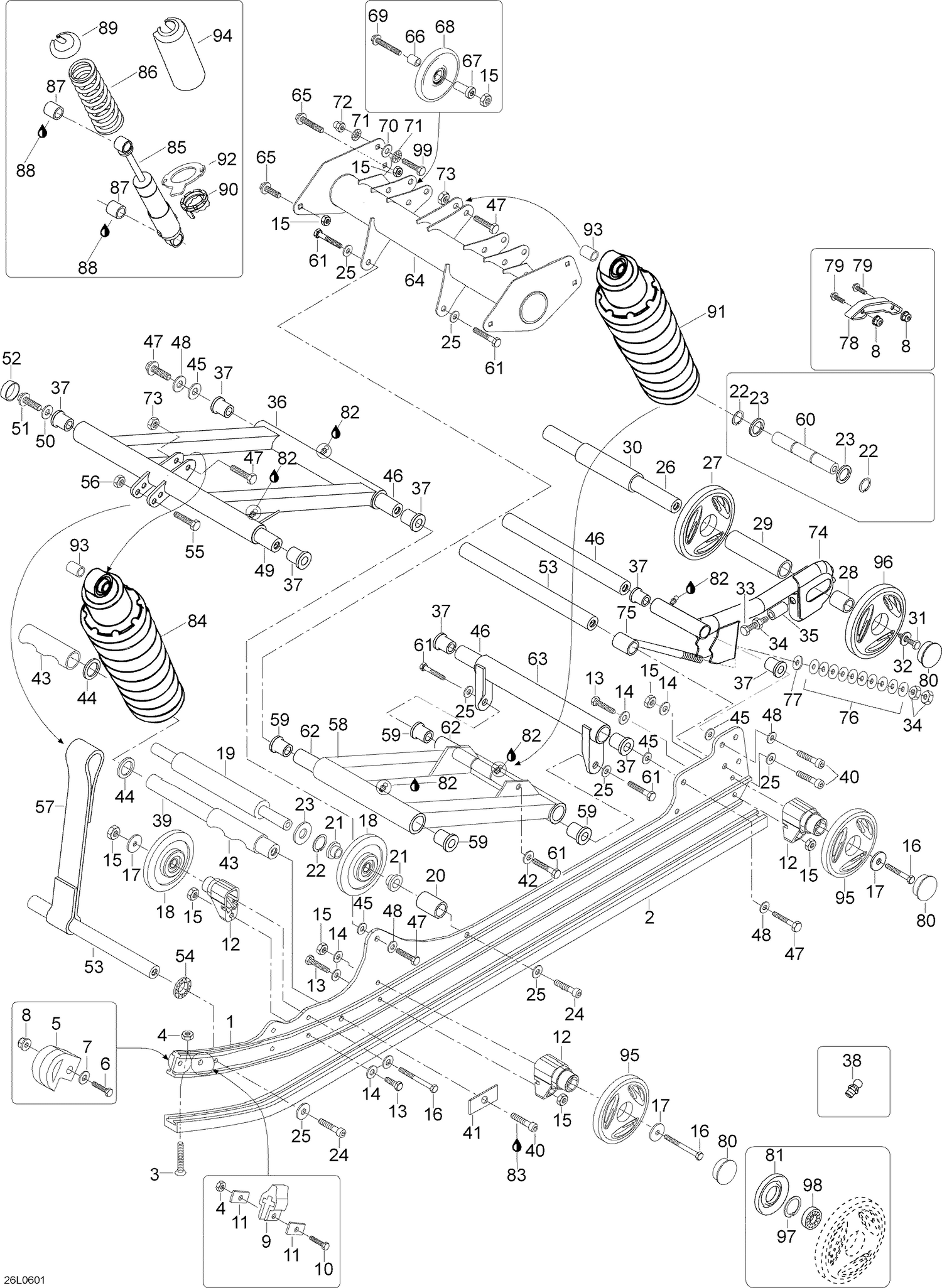

08- Rear Suspension

08- Rear Suspension

Parts (98)

RefPart NumberDescription
1 605253573 RAIL_SUSPENSION MACHINED - Call your local BRP dealership
2 605355362 Slider shoe This part replaces 5347724.
3 40059 Allen screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 Screw M6 x 25
7 20003 Washer
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Screw M6 x 30
11 548470 Support plate
12 605450182 SUPPORT - Call your local BRP dealership
13 40037 Screw M8 x 25
14 234081410 Flat Washer 8 mm This part replaces 20104.
15 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
16 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
17 503183100 Washer
18 503191029 Wheel 135/black
19 5347949 Shaft RCG-XLT - Call your local BRP dealership
20 5447951 Sleeve - Call your local BRP dealership
21 503189534 Insert
22 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
23 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
24 40134 Screw Socket HD.DIN 912
25 20105 Washer, hardened M10
26 5445986 Rear Shaft - Call your local BRP dealership
27 503189478 Idler Wheel 165/Black
28 5444098 Spacer - Call your local BRP dealership
29 5444096 Spacer
30 5444097 Spacer
31 40050 Hex. screw M10 x 35
32 503183300 Washer, hardened M10
33 40239 Hex. screw M10 x 100
34 232006414 Hex. Nut M10 This part replaces 33004.
35 605633002 Nut This part replaces 605452332.
36 5145588 Front arm
37 31024 Cushion
38 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
39 5347633 Shaft, shock
40 40134 Screw Socket HD.DIN 912 This part replaces 40536.
41 5447940 Support plate
42 20068 Lock washer D10
43 5346649 Sleeve - Call your local BRP dealership
44 31013 Shim Ring
45 20116 Washer
46 5346900 Shaft
47 40016 Hex. screw M10 x 45
48 512056700 Lock washer
49 5346135 Shaft
50 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
51 40243 Hex. screw M12 x 60
53 5343471 Shaft
54 4181158 Snapp ring
55 207084544 Hex. Screw M8 X 45 This part replaces 40008.
56 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
57 5447919 STOPPER STRAP - Call your local BRP dealership
58 605349313 Rear arm welded
59 31027 Cushion
60 605451897 REARSHOCK SHAFT - Call your local BRP dealership
61 40014 Hex. screw M10 x 40
62 5346865 SHAFT - Call your local BRP dealership
63 5345535 Rear arm welded
64 605249274 Upper arm
65 40058 Locking screw M8 x 20
66 5447945 Sleeve
67 5447946 Sleeve
68 46027 Idler Wheel - Call your local BRP dealership
69 207089044 Hex. Screw M8 x 90 This part replaces 40264.
70 20077 M8 Washer
71 20072 Lock washer
72 33044 Cap Nut M8 DIN1587-6 Zne(1=10pcs) - Call your local BRP dealership
73 33012 Elastic stop nut M10
74 605251779 EXTENSION SWING LH - Call your local BRP dealership
74 605251780 EXTENSION SWING RH - Call your local BRP dealership
75 5447373 Eye bolt adjuster
76 25004 Cup Spring
77 234002410 Flat Washer 10 mm This part replaces 20011.
78 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
79 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
80 570063600 Protector
81 572089000 LABYRINTH SEAL - Call your local BRP dealership
82 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
83 293800060 Loctite 243, 10ml
85 23159 Shock assy, front
85 23160 Shock assy, rear
86 25058 Spring, center
86 25063 SPRING - Call your local BRP dealership
87 31094 Cushion
88 320006 Loctite 641, 50ml
89 230076 Spring seat
90 230078 Adjusting Cam
92 605348748 ARM ADJUSTING ASS'Y - Call your local BRP dealership
93 5446652 Bushing
94 5346754 Shock protector
95 503190797 Idler wheel 135/Full Moon
96 503190856 Idler wheel 165/Full Moon
97 Not Available As Spare Part - Circlip
