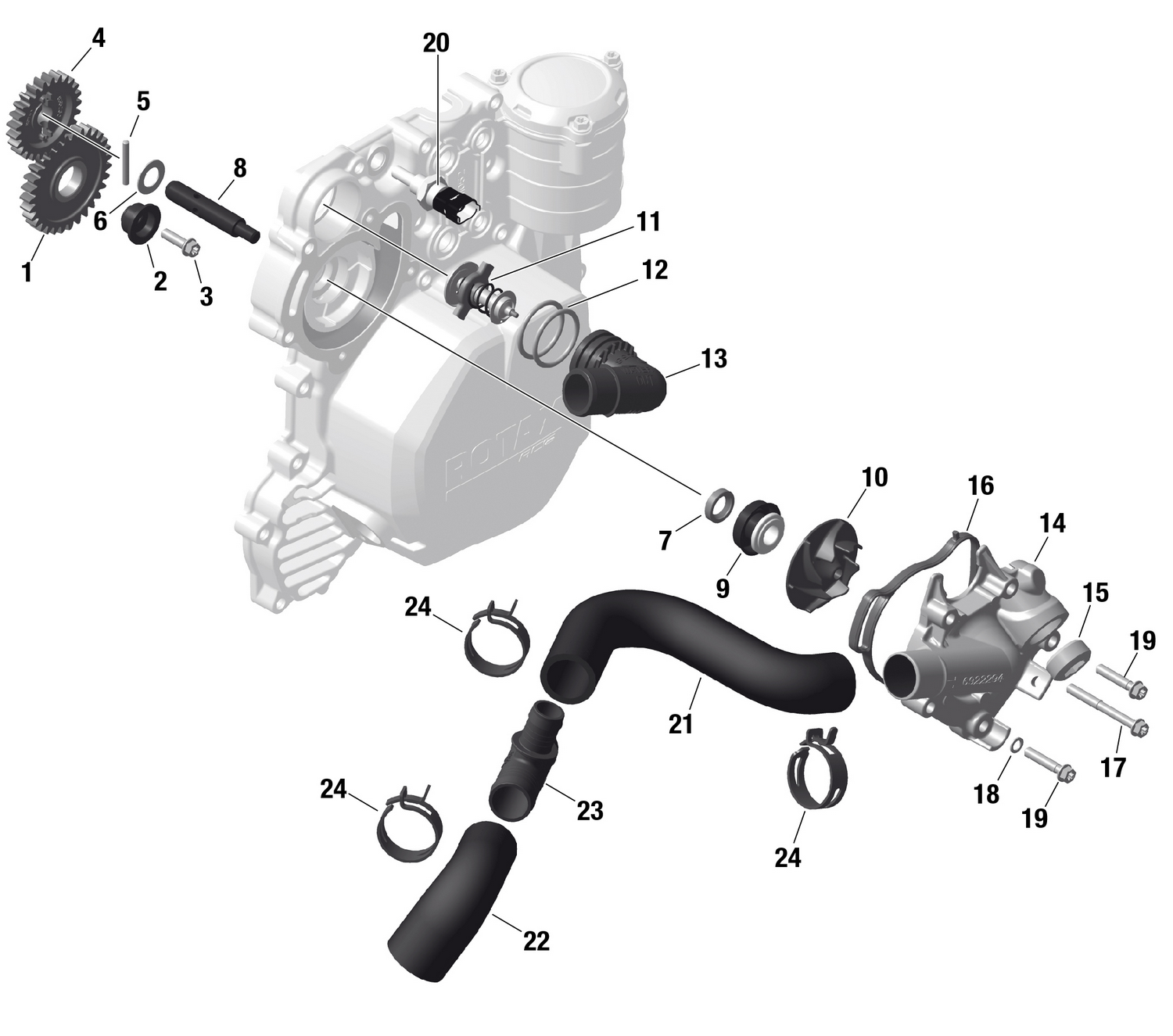

01- ROTAX - Engine Cooling
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420835067 | Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 | 420947394 | Spacer |
| 3 | 420440207 | Torx Flange Screw M6 X 20 |
| 4 | 420835230 | Water Pump Gear |
| 5 | 420232431 | Needle Pin |
| 6 | 420827261 | Thrust Washer |
| 8 | 420820150 | Waterpump Shaft |
| 10 | 420222880 | Water Impeller |
| 11 | 420822655 | Thermostat |
| 13 | 420922158 | Thermostat cover |
| 15 | XXX | Not Available As Spare Parts |
| 17 | 420440702 | Torx Flange Screw M6 X 55 |
| 19 | 420440647 | Torx Flange Screw M6 X 30 |
| 20 | 278002895 | Temperature Sensor |
| 21 | 420201502 | Molded Hose |
| 22 | 420201507 | Molded Hose |
| 23 | 420660551 | T Fitting |
