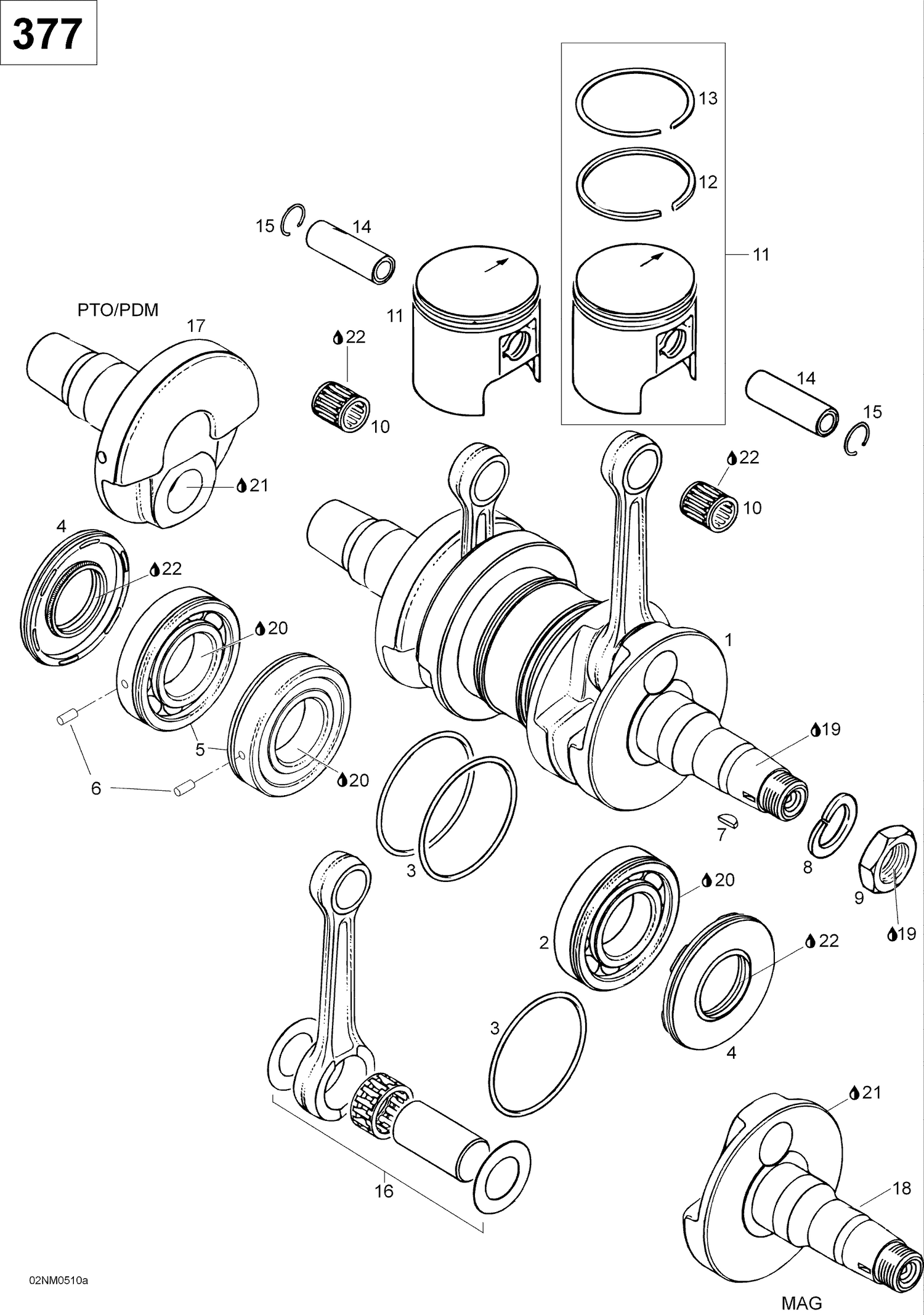

| Ref | Part Number | Description |
|---|
| 2 |
420832584 |
Bearing_Ball This part replaces 420832570. |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 |
420831952 |
Oil Seal This part replaces 290831950. |
| 6 |
420929972 |
Drive Pin |
| 7 |
420246055 |
Woodruff Key |
| 8 |
420945759 |
Lock Washer |
| 9 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 10 |
420932904 |
Needle cage |
| 12 |
420915895 |
RECTANGULAR RING, 62.0 MM - Call your local BRP dealership |
| 12 |
420915896 |
Piston ring 62.25 mm |
| 12 |
420915897 |
RECTANGULAR RING, 62.5 MM - Call your local BRP dealership |
| 13 |
420215215 |
SEMI-TRAPEZ RING, 62.0 MM - Call your local BRP dealership |
| 13 |
420215216 |
SEMI-TRAPEZ RING, 62.25 MM - Call your local BRP dealership |
| 13 |
420215217 |
SEMI-TRAPEZ RING, 62.5 MM - Call your local BRP dealership |
| 14 |
420916260 |
GUDGEON PIN - Call your local BRP dealership |
| 15 |
420945735 |
Circlip |
| 16 |
420889634 |
Rod repair kit |
| 17 |
420818204 |
Crankhalf P.T.O side |
| 18 |
420819010 |
MAG SIDE HALF-CRANK - Call your local BRP dealership |
| 19 |
293800060 |
Loctite 243, 10ml |
| 20 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 21 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
