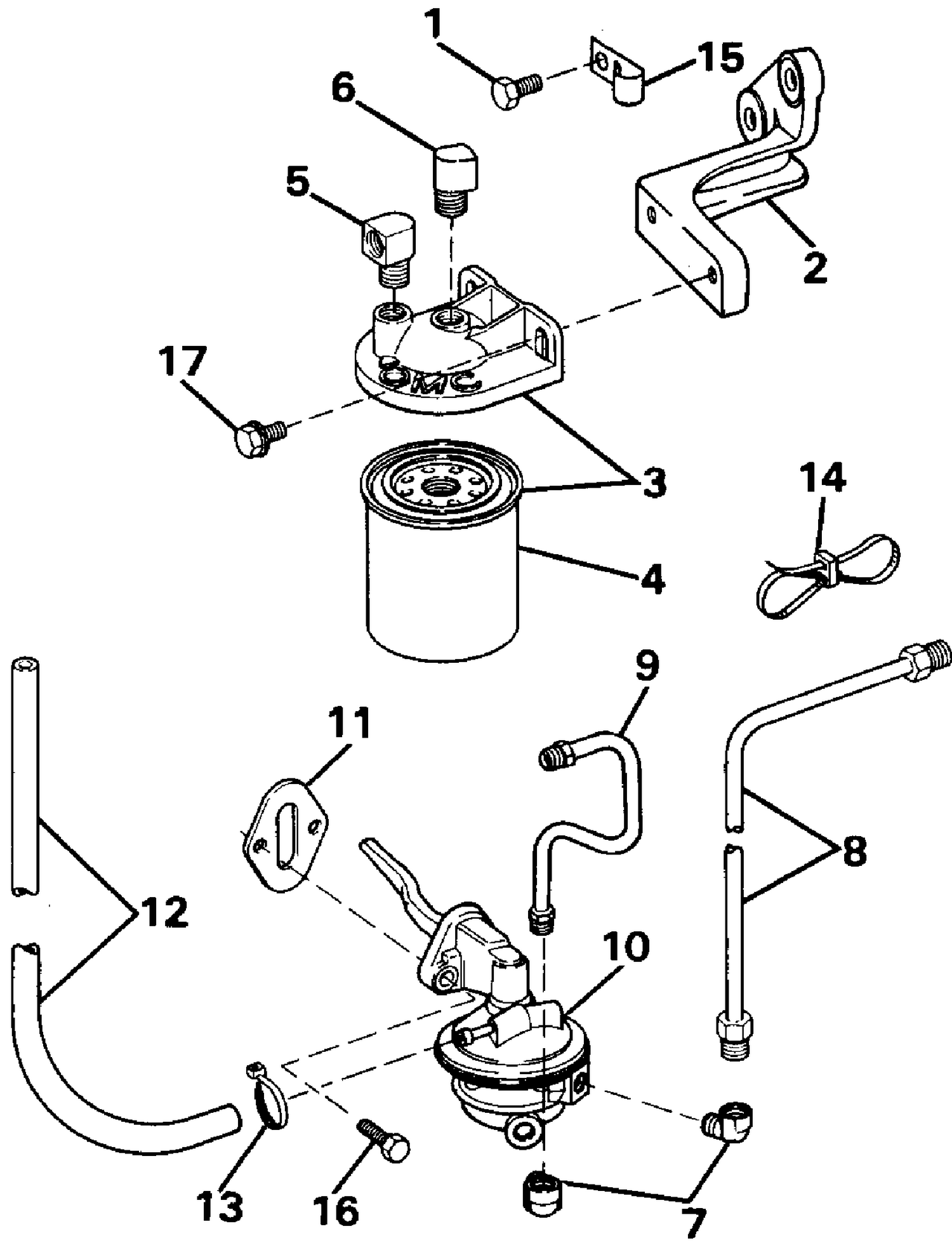

| Ref | Part Number | Description |
|---|
| 1 |
3853558 |
BOLT, Bracket to head This part replaces 0915791. |
| 2 |
3853379 |
BRACKET, Fuel filter This part replaces 0914969. |
| 3 |
3850861 |
COVER & FUEL FILTER ASSY This part replaces 0987256. |
| 4 |
5012363 |
Filter Ay This part replaces 0987754. |
| 5 |
0174179 |
ELBOW, Filter inlet |
| 6 |
3852702 |
FITTING, Filter outlet This part replaces 0913446. |
| 7 |
3852525 |
FITTING, Fuel pump This part replaces 0911455. |
| 8 |
3854058 |
FUEL LINE, Pump to carb This part replaces 0987060. |
| 9 |
3854024 |
FUEL LINE, Filter to pump This part replaces 0986848. |
| 10 |
3854053 |
FUEL PUMP ASSY. This part replaces 0987024. |
| 11 |
0311064 |
GASKET, Fuel pump |
| 12 |
0909938 |
HOSE, Fuel overflow |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 15 |
3853261 |
CLAMP, Fuel line This part replaces 0914531. |
| 16 |
3853326 |
SCREW, Bracket to engine This part replaces 0914764. |
| 200 |
511001755 |
Metallic Sage, Luggage Rack |
| 210 |
250000722 |
Torx Truss Screw M6 x 20 |
| 215 |
250000843 |
Torx Truss Screw M6 X 30 |
| 220 |
511001120 |
Short Insert |
| 230 |
511001463 |
Rear Support Rack |
| 250 |
511001314 |
Threaded Insert |
| 260 |
250000767 |
Torx Truss Screw M6 X 12 |
| 270 |
250000807 |
Torx Truss Screw M6 x 25 |
| 370 |
511001209 |
Multifonctional Plate |
| 380 |
250000843 |
Torx Truss Screw M6 X 30 |
| 390 |
250200164 |
Flat washer M6 |
| 400 |
511001756 |
Metallic Sage, RH Support Rack |
