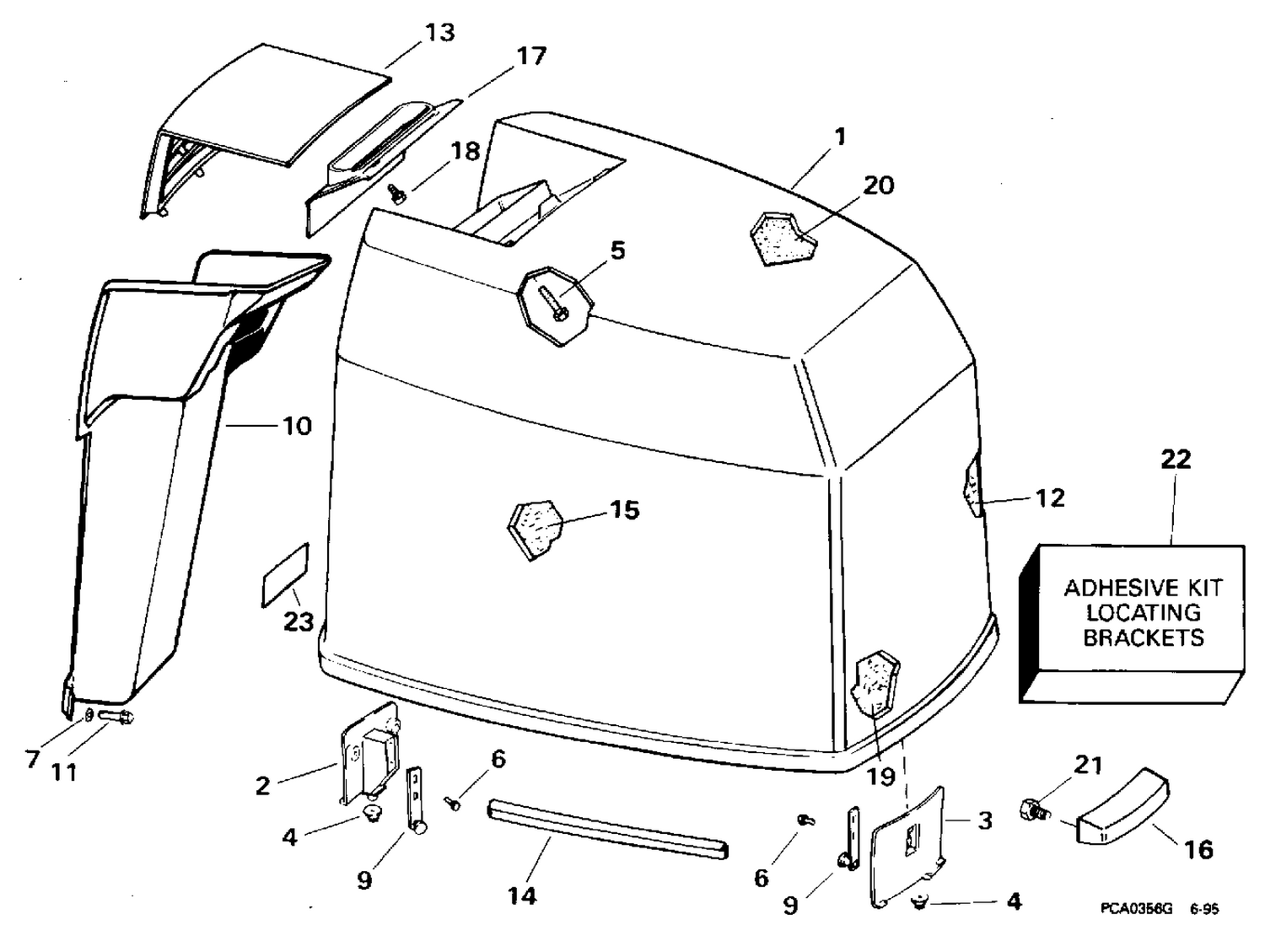

ENGINE COVER - JOHNSON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0435968 | ENGINE COVER ASSY. |
| 2 | 0336992 | BRACKET, Locating, rear |
| 9 | 0397630 | HOOK |
| 10 | 0336365 | BAFFLE, Air intake |
| 12 | 0341495 | SOUND BLANKET, Port |
| 13 | 0328009 | TILT HANDLE |
| 14 | 0912173 | SEAL, Engine cover |
| 15 | 0341500 | SOUND BLANKET, Stbd. |
| 16 | 0332607 | LIFT HANDLE |
| 17 | 0330012 | BAFFLE |
| 19 | 0341497 | SOUND BLANKET, Front |
| 20 | 0341499 | SOUND BLANKET, Top |
| 21 | 0334004 | SCREW, Hook to bracket |
| 22 | 0431929 | KIT ADHÉSIF, supports d'emplacement |
| 23 | 0211076 | DECAL, Counter rotation |
