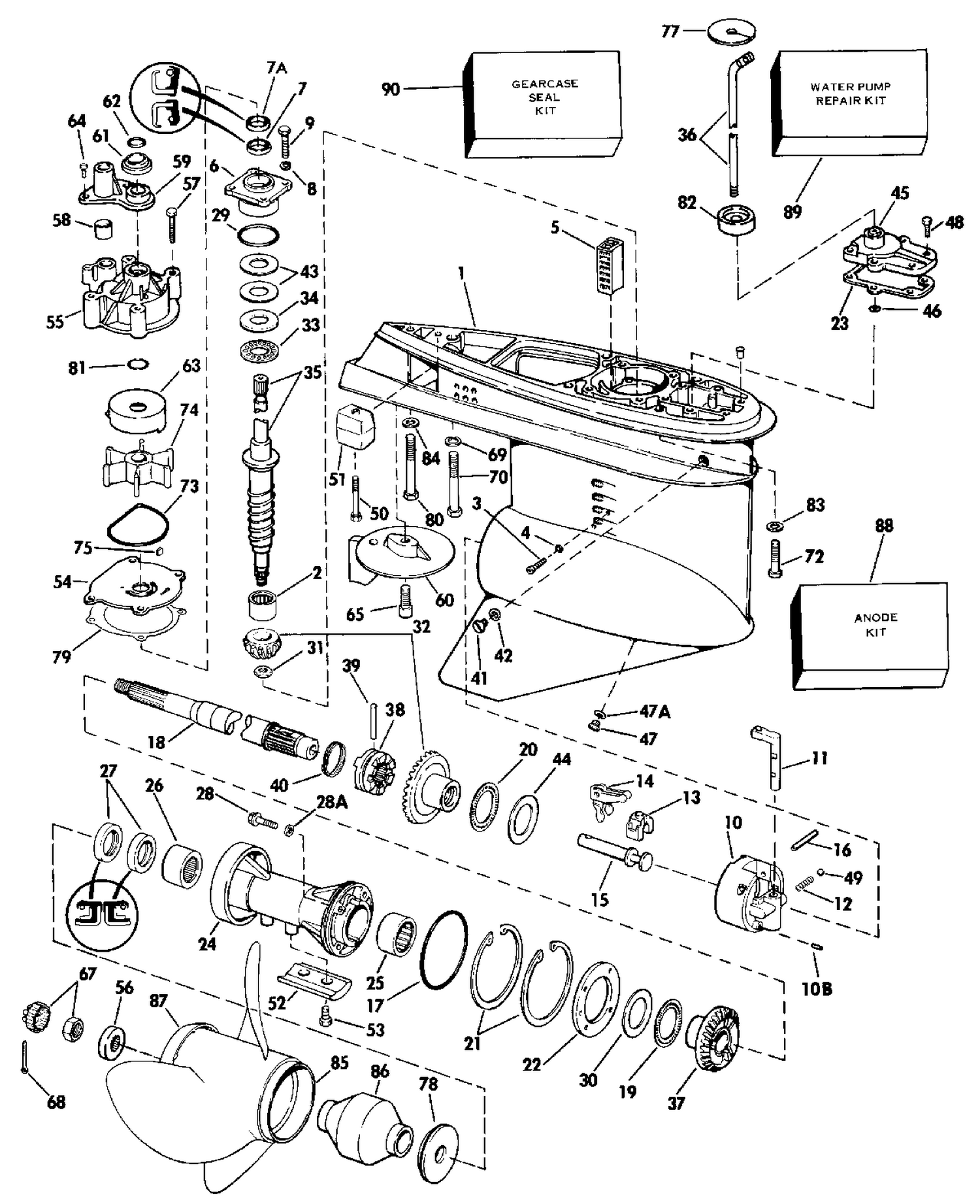

| Ref | Part Number | Description |
|---|
| 1 |
0393461 |
GEARCASE & BEARING ASSY. |
| 17 |
0305123 |
O RING This part replaces 0321119. |
| 18 |
0395209 |
PROP SHAFT ASSY |
| 21 |
0321171 |
RETAINING RING |
| 22 |
0321174 |
PLUG, Large |
| 24 |
0397094 |
BEARING HOUSING & SEAL ASSY |
| 28 |
0316563 |
SCREW |
| 28A |
0332583 |
SCREW & SEAL ASSY. |
| 32 |
0983141 |
FORWARD GEAR & PINION ASSY |
| 35 |
5000775 |
Kit Ayd/Shaft-20 This part replaces 0394615. |
| 36 |
0324407 |
SHIFT ROD |
| 37 |
0910211 |
BOOT, Battery cable |
| 38 |
0910198 |
SHIFTER, Clutch dog |
| 54 |
0435027 |
CUP & PLATE This part replaces 0330380. |
| 54 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330383. |
| 55 |
0435485 |
IMPELLER HOUSING ASSY. This part replaces 0395040. |
| 57 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0327810. |
| 63 |
0435027 |
CUP & PLATE This part replaces 0330379. |
| 63 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330384. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 77 |
0322302 |
SEAL, Adapter to frame |
| 78 |
0333592 |
THRUST BUSHING |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 81 |
0332000 |
SEAL RING |
| 84 |
0326785 |
WASHER |
| 85 |
0387158 |
PEOPELLER, 15-1/2 x 13 |
| 85 |
0387159 |
PROP,15-1/2x15 |
| 85 |
0387161 |
PROP,14-1/2x19 |
| 85 |
0387163 |
PROP,14-1/2x23 |
| 85 |
0387995 |
PROP, 14-1/2 x 24 sstr |
| 85 |
0387996 |
PROP, 14-1/2 x 26 sstr |
| 85 |
0387997 |
PROP.14-1/2X28SSTR |
| 85 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 85 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 85 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 85 |
0389925 |
PROP, 15 x 16 SST |
| 85 |
0390725 |
PROP, 14 x 25 SST |
| 85 |
0390831 |
PROP, 14-1/2 x 14 SST |
| 85 |
0391201 |
PROP, 14-1/2 x 19 |
| 85 |
0391202 |
PROP, 14-1/2 x 21 |
| 85 |
0391290 |
PROP, 15 x 17 SST |
| 85 |
0391863 |
PROPELLER, 14 1/2 X 27 OMC SRX |
| 85 |
0391864 |
PROPELLER, 14 1/2 x 29 OMC SRX |
| 85 |
0765187 |
PROPELLER, WDEX Models This part replaces 0387160. |
| 88 |
0392160 |
ANODE KIT |
| 89 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0395060. |
| 0398012 |
0434417 |
GEARCASE ASSY., Complete This part replaces 0398012. |
