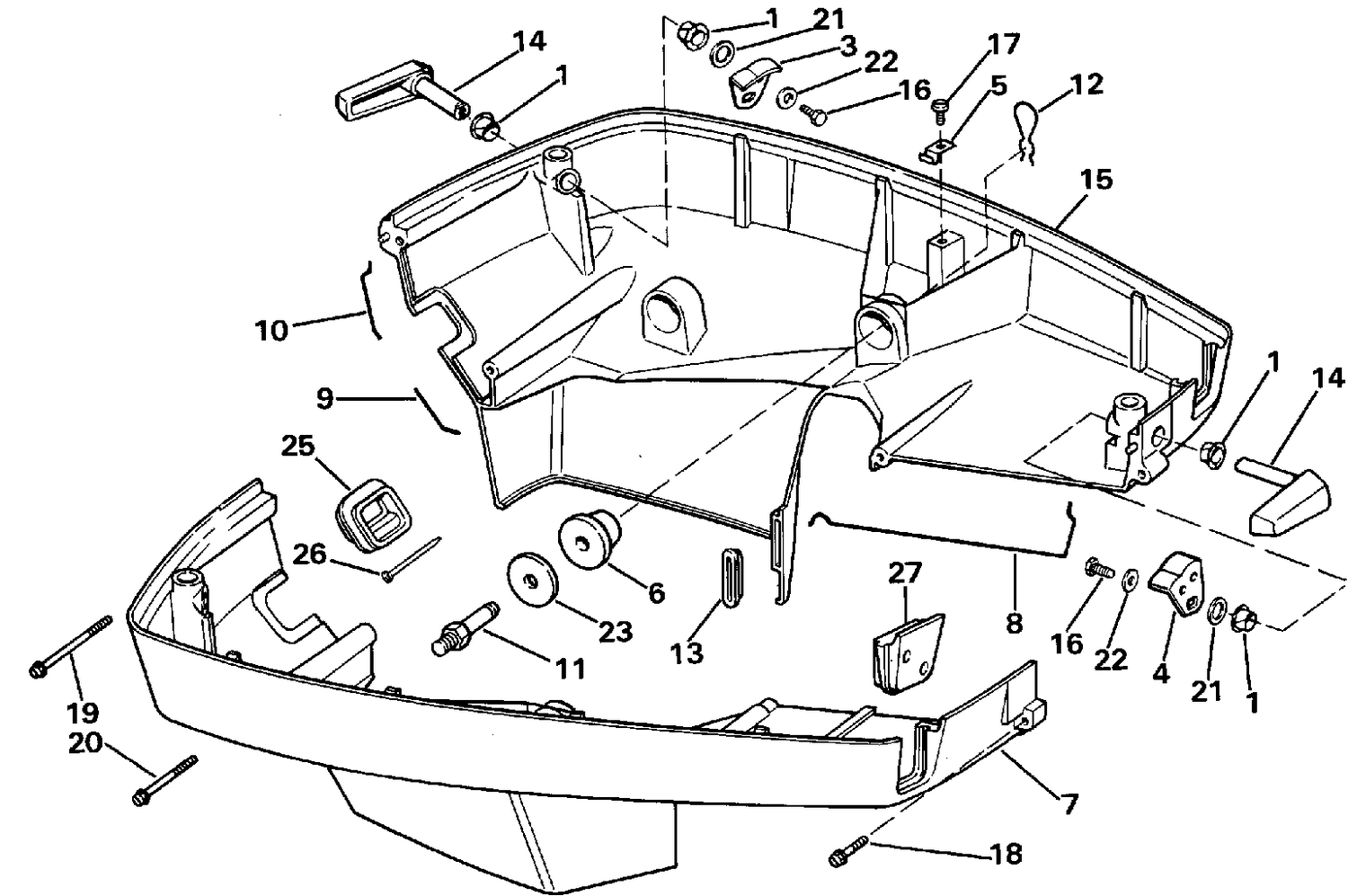

| Ref | Part Number | Description |
|---|
| 3 |
0323169 |
HOOK, Lower rear port |
| 4 |
0323170 |
HOOK Front and stbd., rear |
| 6 |
0349557 |
MOUNT This part replaces 0328584. |
| 7 |
0432782 |
ENGINE COVER & SEAL ASSY., Stbd |
| 11 |
0329743 |
STUD, Cover mount |
| 12 |
0330288 |
SPRING PIN, Mount, front |
| 14 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 15 |
0432405 |
ENGINE COVER, Port |
| 16 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 18 |
0328597 |
SCREW, Engine cover |
| 19 |
0329750 |
SCREW, Cover, rear |
| 20 |
0330978 |
SCREW, Cover, rear top |
| 23 |
0349556 |
Washer This part replaces 0329749. |
| 25 |
0333679 |
GROMMET, Adapter |
