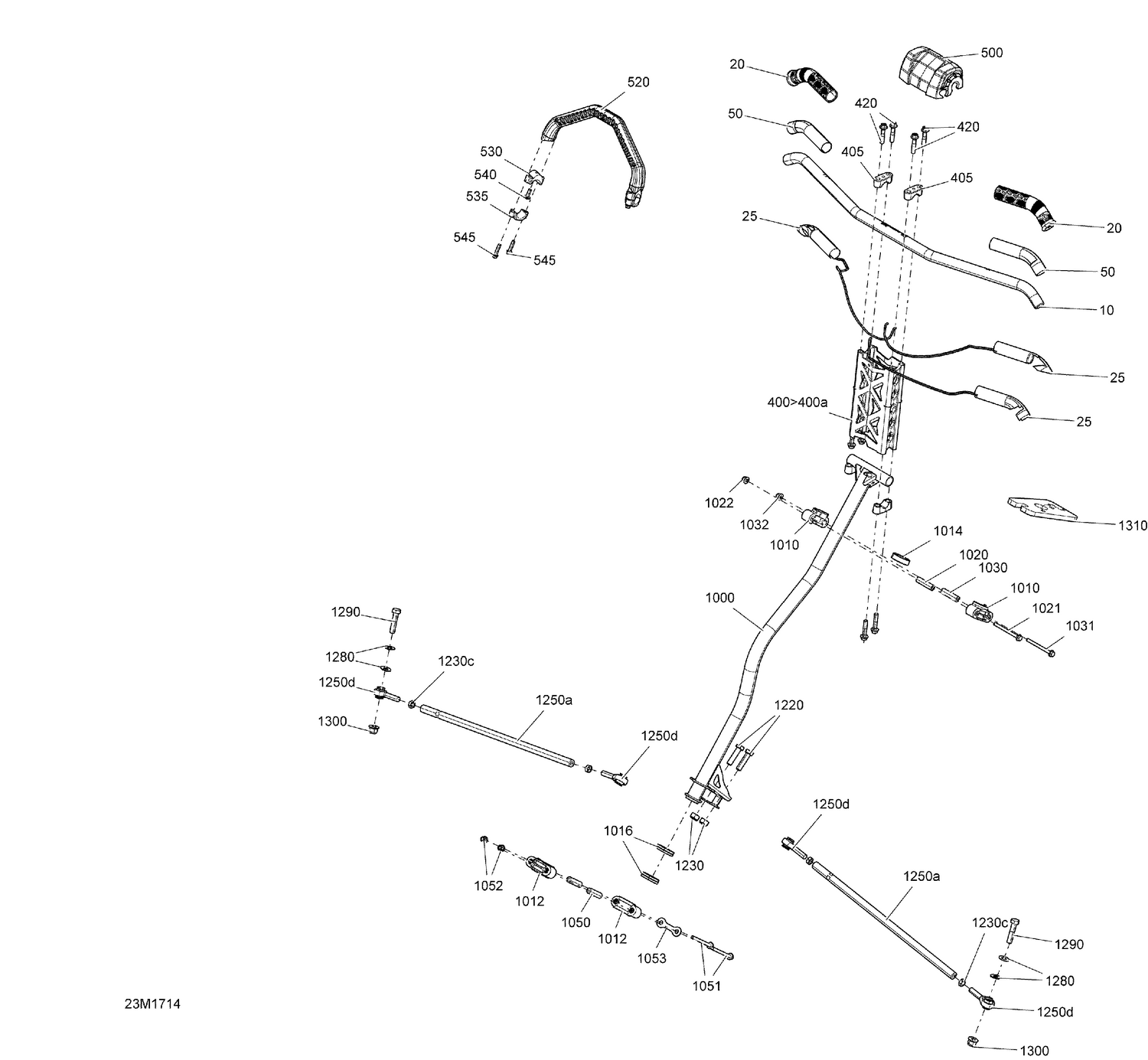

07- Steering - All Models

07- Steering - All Models

Parts (41)

RefPart NumberDescription
10 506152709 Handle Bar, Non Dyed Clear Anodizing
20 506152560 Grip 148mm
25 506152758 Heating Element 32 Watt 2 Wires
30 506152799 RH Heating Element 32 Watt This part replaces 506152764.
50 506153176 Thermal Insulation This part replaces 506152548.
400a 250000352 Hex. Flange Screw M8 X 40
405 506152751 Steering Support This part replaces 506152750.
410a 506152751 Steering Support This part replaces 506152750.
420 250000852 Hex. Flange Screw M8 X 1.25 x 40
430 250000852 Hex. Flange Screw M8 X 1.25 x 40
500 506152541 Deep Black, Steering Pad
520 506152460 Moulding Strap
530 506152703 Black Support Plate
535 719000049 Clamps
540 250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip
545 250000447 Hex. Flange Screw M6 X 25
1000 506152964 Steering Column
1010 506152508 Upper Half-Housing
1012 506152217 Lower Half-Housing
1014 506152509 Upper Anti-Vibration Gasket
1016 506152518 Lower Vibration Ring
1020 506152297 Housing Bushing
1021 207667056 Hex. Flange Screw M6 X 70 This part replaces 207667086.
1022 233261416 Elastic Flange Nut M6 X 1.0
1030 506152297 Housing Bushing
1031 207667056 Hex. Flange Screw M6 X 70 This part replaces 207667086.
1032 233261416 Elastic Flange Nut M6 X 1.0
1050 506152388 Lower Housing Bushing
1051 207686534 Hex. Flange Screw M8 x 65
1052 233281414 Hex. Flange Elastic Nut M8
1053 506152389 Stopper Plate
1220 207004034 Hex. Screw M10 X 1.5 X 40
1230 233601466 Elastic Locking Nut M10
1250a 506152377 ROD_LINK - Call your local BRP dealership
1250c 250100016 LH Threaded Hex. Jam Nut M10
1250c 732610010 RH Threaded Hex. Jam Nut M10
1250d 506152019 RH Threaded Ball Joint
1250d 506152081 LH Thread Ball Joint
1280 506152582 Washer
1290 207004544 Hex. Screw M10 X 45
1300 233201464 Hex. Flange Elastic M10 x 1.5
