Home / BRP / 2005 / Ranger 600, 2005 / 01- Cylinder, 593

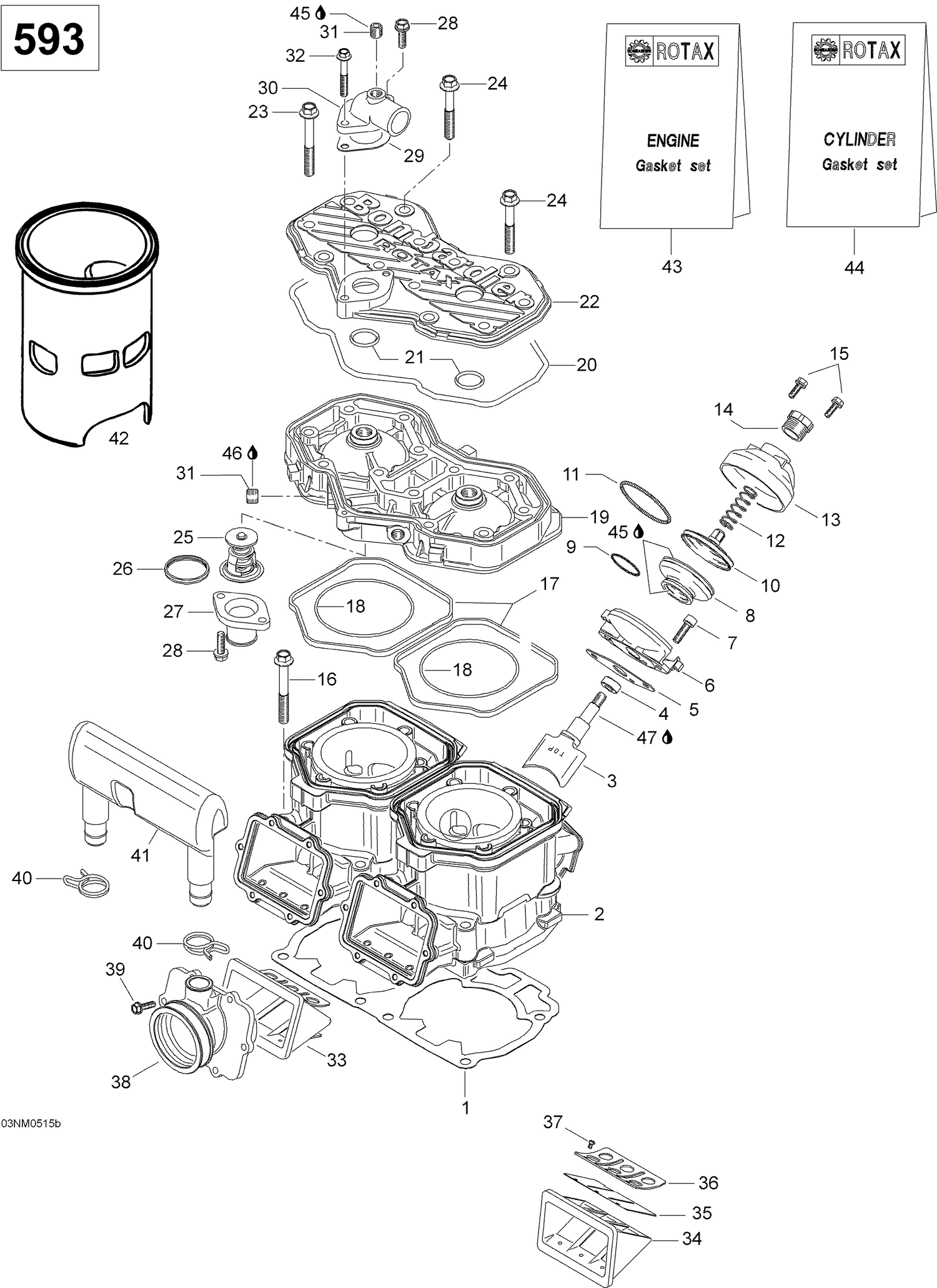

01- Cylinder, 593

01- Cylinder, 593

Parts (49)

RefPart NumberDescription
1 420431420 Joint *Gasket 0.5Mm This part replaces 420931583.
1 420431421 Joint *Gasket 0.6Mm This part replaces 420931582.
1 420431422 Joint *Gasket 0.7Mm This part replaces 420931962.
1 420431423 Double Gasket 0.8 mm This part replaces 420931584.
1 420931581 GASKET 0.4 MM - Call your local BRP dealership
2 420613628 Cylinder With Sleeve This part replaces 420613627.
3 420854371 Exhaust Valve This part replaces 420854370.
4 420950732 Oil Seal This part replaces 420950730.
5 420250239 Packning
6 420854266 Ventilhus
7 205062044 Insexskruv M6 x 20
8 420260723 Bälg
9 420838255 Fjäder
10 420854449 Kolv
11 420939281 Hose Spring This part replaces 420939280.
12 420239954 Spring This part replaces 420239944.
13 420911552 Ventilskåpa
14 420241221 Adjuster screw This part replaces 420241220.
15 420841555 Skruv M5 x 20
16 420640959 Collar Hex Screw M8 X 68.5 This part replaces 420640951.
17 420931590 Tätning ring
18 293300026 O-Ring This part replaces 420850540.
19 420923459 CYLINDER HEAD - Call your local BRP dealership This part replaces 420923452.
20 420950320 O-ring
21 420430782 O-ring
22 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
23 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
24 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
25 420922519 Thermostat This part replaces 420922518.
26 420931272 Packning
27 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
28 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
29 420850339 Gasket This part replaces 420850338.
30 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
31 420240480 PLUG SCREW - Call your local BRP dealership
32 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
34 Not Available As Spare Part - Reed ventil hus
35 420924532 Reed Pedal
36 420924539 Reed Pedal Stop
37 420941215 Skruv M3 x 5
38 420867882 CARBURETOR SOCKET - Call your local BRP dealership
39 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
40 420851440 CLAMP - Call your local BRP dealership
41 420867815 Insugs resonator
42 420923443 Cylinderrör
43 420893070 Gasket Set, Engine This part replaces 420888584.
44 420893075 Gasket Set, Cylinder This part replaces 420888588.
45 413707000 Molykote 111
46 293800060 Loctite 243, 10 ml This part replaces 420899785.
