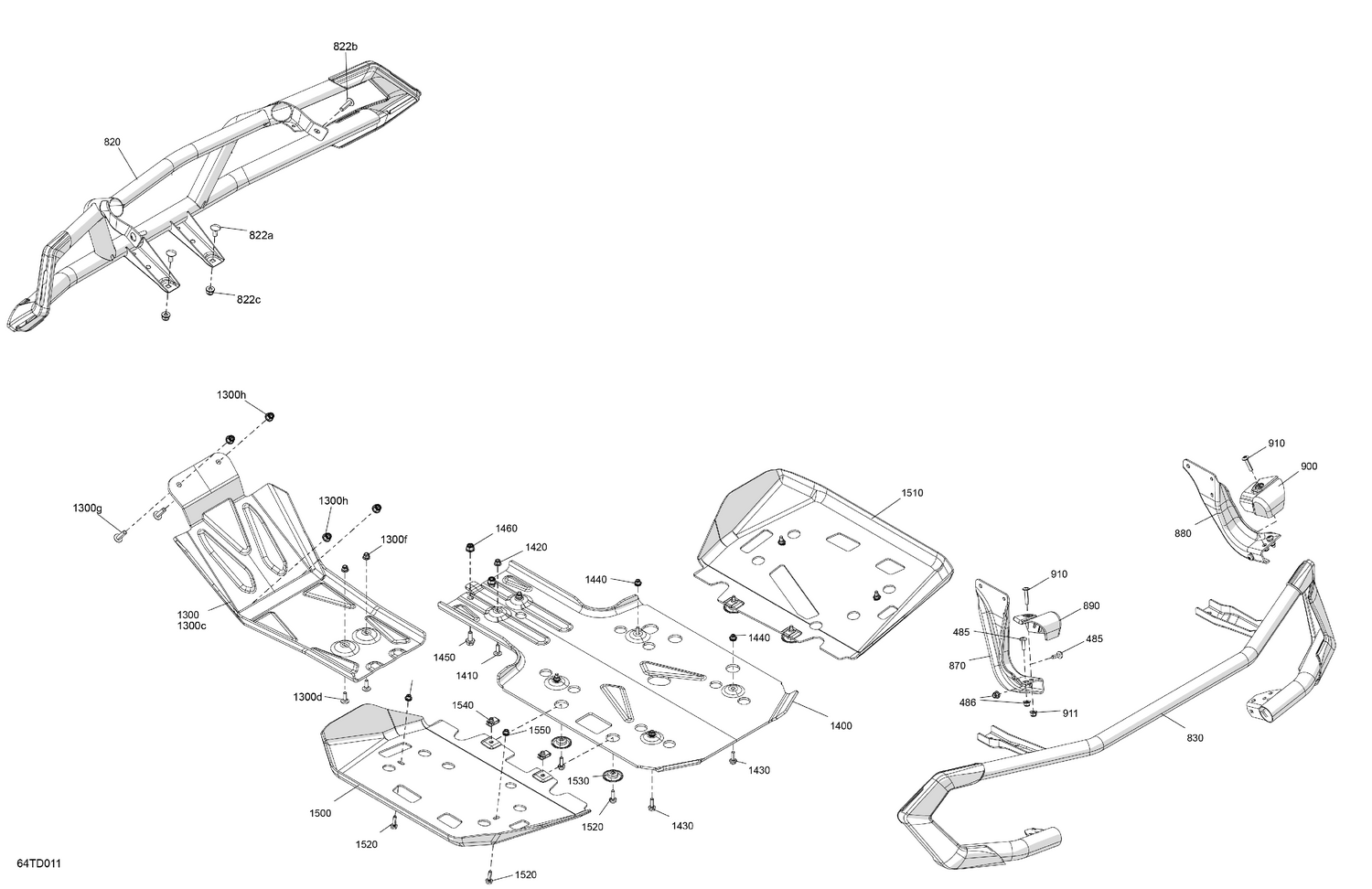

07- Body - Skid Plate and Bumper
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 485 | 207762044 | Carriage Bolt M6 X 20 |
| 486 | 233261434 | Flange Elastic Nut M6 |
| 820 | 715004837 | Deep Black, Bumber Kit |
| 822a | 207782044 | Carriage Bolt, M8 X 20 |
| 822b | 250000886 | Torx Screw M8 X 30 |
| 822c | 233281414 | Hex. Flange Elastic Nut M8 |
| 830 | 715004920 | Rear Bumper |
| 870 | 705008164 | LH Rear Bracket |
| 880 | 705008165 | RH Rear Bracket |
| 890 | 705017676 | LH Rear Bumper Trim |
| 900 | 705017677 | RH Rear Bumper Trim |
| 910 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 911 | 233261434 | Flange Elastic Nut M6 |
| 1300c | 715000926 | Front Skid Plate |
| 1300d | 207762044 | Carriage Bolt M6 X 20 |
| 1300f | 233261434 | Flange Elastic Nut M6 |
| 1300g | 250000745 | Hex Torx Truss M8 X30 |
| 1300h | 233281414 | Hex. Flange Elastic Nut M8 |
| 1400 | 705204031 | Central Skid Plate |
| 1410 | 207762044 | Carriage Bolt M6 X 20 |
| 1420 | 233261434 | Flange Elastic Nut M6 |
| 1430 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1440 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1450 | 207682544 | Hex. Flange Screw M8 X 25 |
| 1460 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1500 | 705010659 | LH Skid Plate |
| 1510 | 705010660 | RH Skid Plate |
| 1520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1530 | 705007171 | Cup |
| 1540 | 250100198 | Panel Nut M6 X 1.0 |
