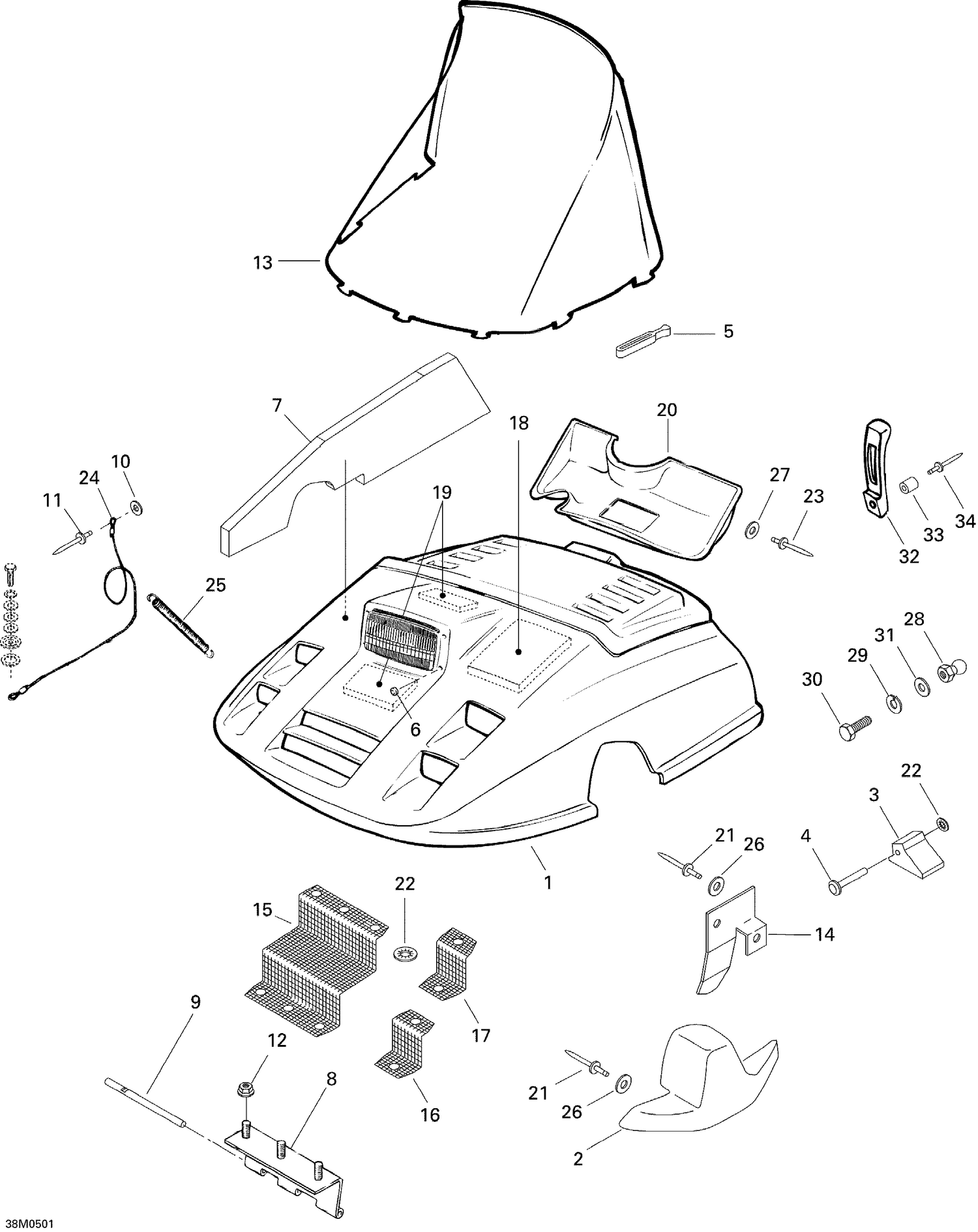

09- Hood
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 572038800 | LH Hood Moulding |
| 2 | 572038900 | RH Hood Moulding |
| 3 | 570038700 | Hood Guide |
| 4 | 390907000 | Steel Rivet |
| 7 | 414867100 | LH Foam |
| 7 | 517302204 | RH Foam |
| 8 | 517182200 | Welded Hinge |
| 9 | 517279800 | Pivot Pin |
| 10 | 517124300 | Washer |
| 11 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 414829400 | Windshield |
| 14 | 517251500 | LH Hood Guide |
| 14 | 517261300 | RH Hood Guide |
| 15 | 517251700 | Paint Central Front Grill |
| 16 | 517251800 | Front Grill |
| 17 | 517270600 | RH Up Side Grill |
| 17 | 517270700 | LH Up Side Grill |
| 18 | 414829600 | Side Foam |
| 19 | 414829800 | Front Foam |
| 20 | 414804000 | AIR DUCT - Call your local BRP dealership |
| 21 | 390407200 | Pop Rivet 3/16” |
| 22 | 389804300 | Push Nut |
| 24 | 414581400 | Retainer Cable |
| 25 | 414763300 | Spring |
| 26 | 517225900 | Flat Washer |
| 27 | 517225900 | Flat Washer |
| 28 | 517245800 | Knob |
| 29 | 234151401 | Lock Washer 5 mm |
| 30 | 207151444 | Hex. Screw M5 X 14 |
| 31 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 32 | 570025900 | BLACK LATCH - Call your local BRP dealership |
| 33 | 293900112 | Bushing This part replaces 517245900. |
