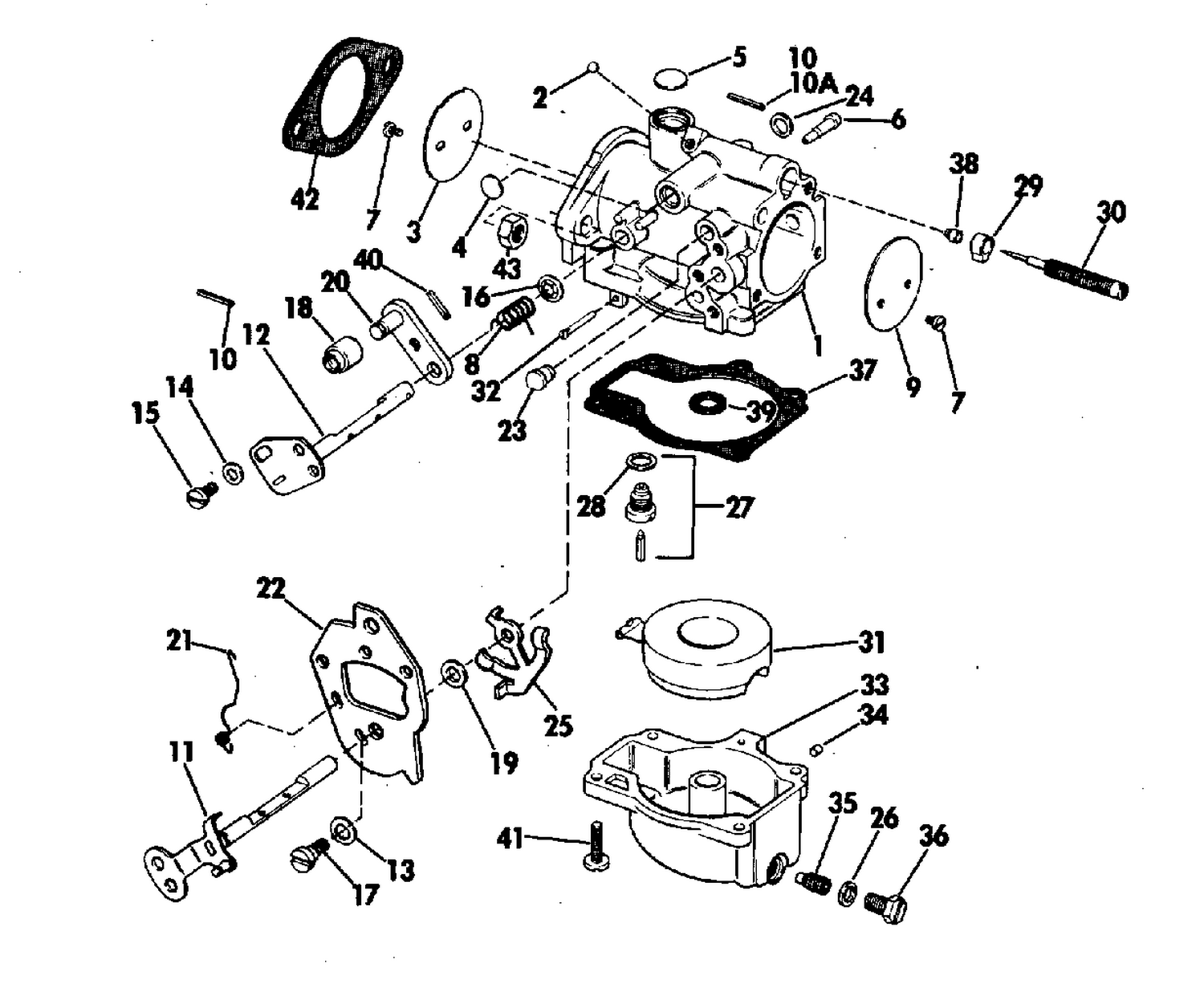

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386514 | BODY ASSY., Upper |
| 1 | 0386516 | BODY ASSY., Lower |
| 9 | 0322182 | CHOKE VALVE This part replaces 0313359. |
| 11 | 0387811 | CHOKE SHAFT ASSY This part replaces 0384237. |
| 29 | 0315232 | RETAINER , Needle valve stbd |
| 33 | 0383318 | FLOAT CHAMBER ASSEMBLY |
| 33 | 0383319 | FLOAT CHAMBER ASSEMBLY |
| 36 | 0307832 | PLUG, Screw |
| 38 | 0314166 | BEARING, Needle valve |
| 42 | 0325092 | GASKET This part replaces 0314477. |
| 0386367 | 0386367 | CARB ASSY., Upper |
| 0386369 | 0386369 | CARB ASSY., Lower |
