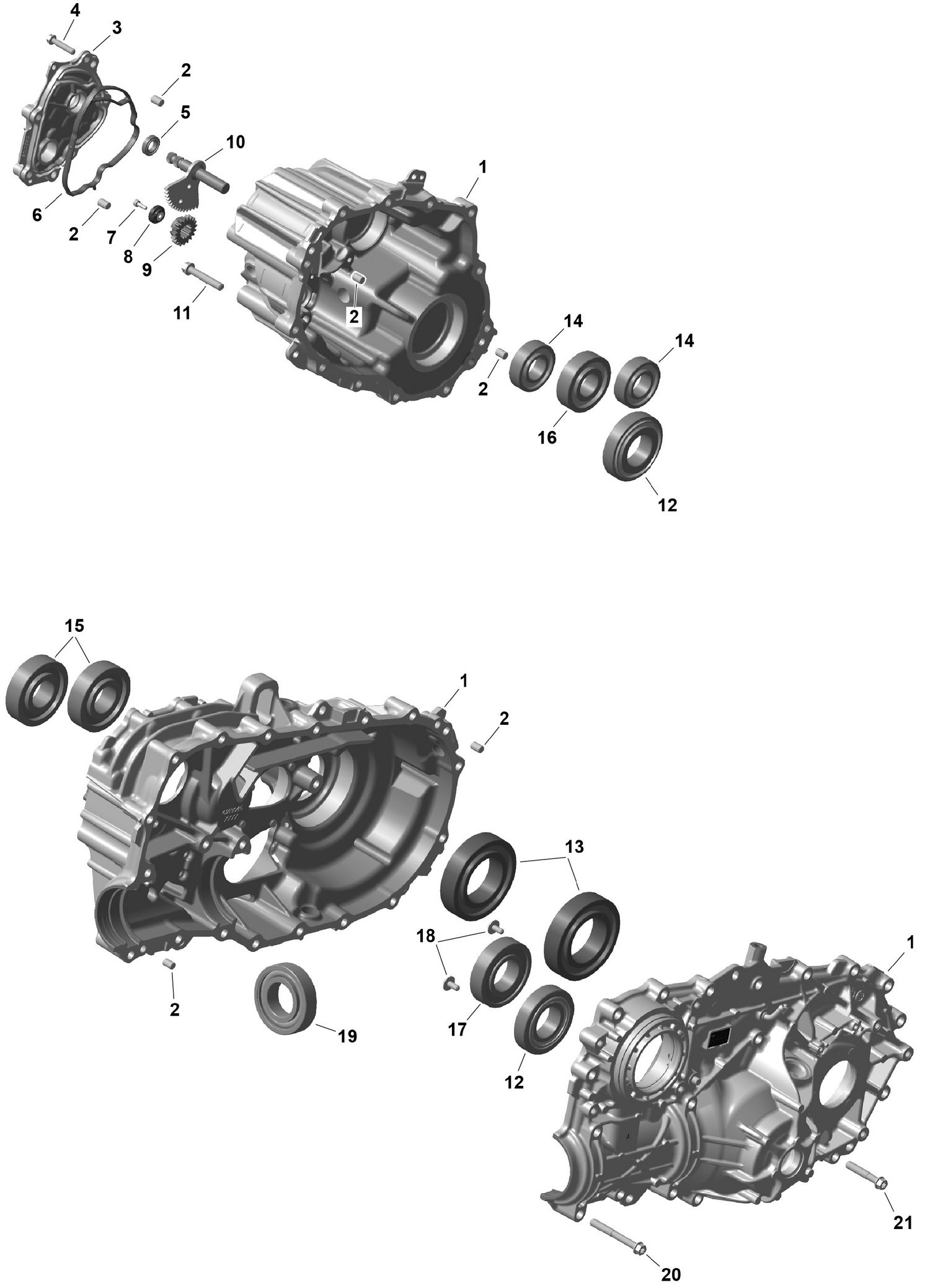

01- ROTAX - GearBox 1
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | XXX | Not Available As Spare Parts |
| 2 | 420632014 | Center Pin 8 X 12 |
| 3 | 420212393 | Gearbox Cover |
| 4 | 420440647 | Torx Flange Screw M6 X 30 |
| 5 | 420932329 | Ball Bearing |
| 6 | 420431685 | Gearbox Cover Gasket |
| 7 | 420440297 | Allen Screw M4X12 8.8 MK |
| 8 | 420256000 | Magnet |
| 9 | 420234096 | Drive Gear 19T |
| 10 | 420820348 | Shift Shaft Ass'y |
| 11 | 420641208 | Hex. Flange Screw M8 X 45 This part replaces 420940077. |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 420632872 | Ball Bearing |
| 14 | 420232771 | Ball Bearing This part replaces 420232760. |
| 15 | 420932574 | Ball Bearing |
| 16 | 420932822 | Ball Bearing |
| 17 | 420632748 | Ball Bearing |
| 18 | 420241537 | Hex Flat Head Screw M6 X 13 T30 |
| 19 | 420632745 | Ball Bearing |
| 20 | 420440402 | Torx Flange Screw M8 X 65 |
