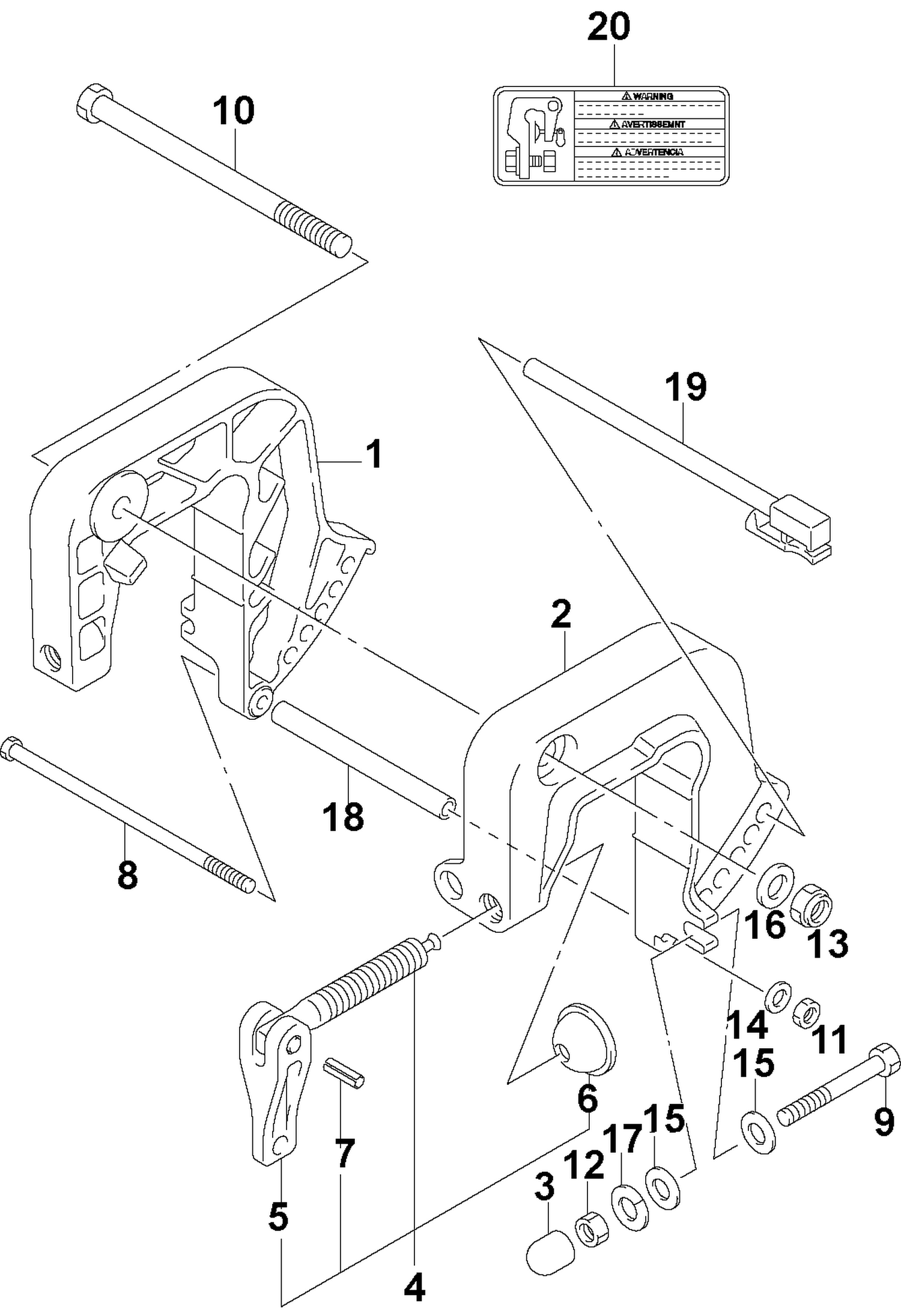

STERN BRACKET
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033405 | BRACKET, CLAMP STBD |
| 2 | 5033406 | BRACKET, CLAMP PORT |
| 3 | 5033498 | CAP, TRANSOM BOLT |
| 4 | 5030232 | CLAMP, SCREW & HANDE ASSY. |
| 8 | 5030026 | BOLT (6X140) |
| 9 | 5033468 | BOLT (8X90mm) |
| 10 | 5030027 | BOLT (10X150mm) |
| 13 | *5030054 | NUT |
| 15 | 5033287 | WASHER (8.5X23X1.5mm) |
| 16 | 5030057 | WASHER |
| 18 | 5032262 | ENTRETOISE |
| 19 | 5034242 | PIN, TILT LOCK |
