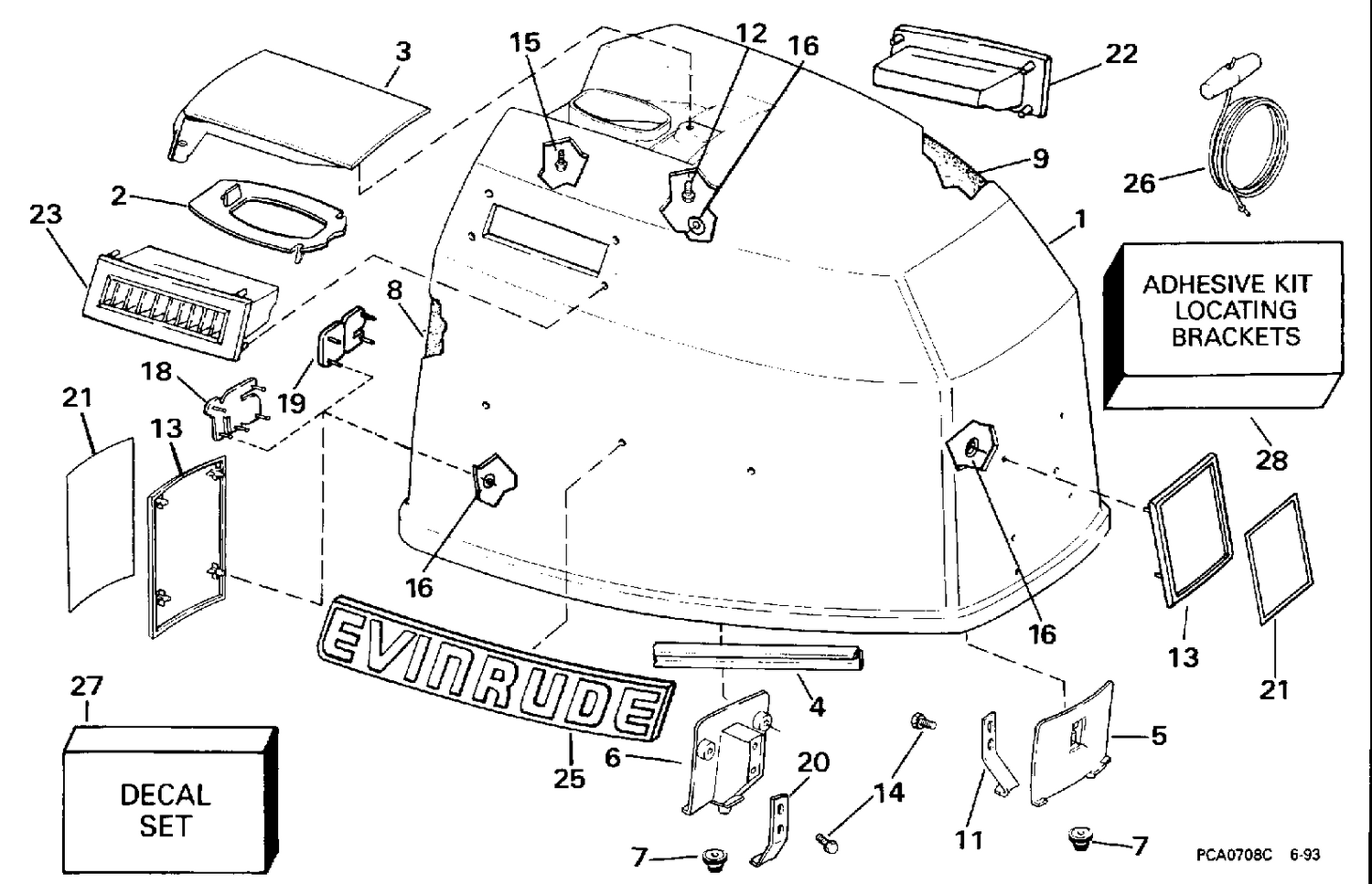

| Ref | Part Number | Description |
|---|
| 1 |
0284187 |
ENGINE COVER ASSY. |
| 1 |
0284480 |
ENGINE COVER ASSY., 90 models |
| 1 |
0284481 |
ENGINE COVER ASSY., 115 |
| 1 |
0284482 |
ENGINE COVER ASSY., 100 models |
| 1 |
0284585 |
ENGINE COVER ASSY., 90 Jet, (65) |
| 1 |
0284586 |
ENGINE COVER ASSY., 115 Jet, (80) |
| 4 |
0329548 |
SEAL |
| 5 |
0336991 |
BRACKET, Locating, front |
| 6 |
0336992 |
BRACKET, Locating, rear |
| 8 |
0341534 |
SOUND BLANKET, Side This part replaces 0208509. |
| 8 |
0911532 |
SOUND BLANKET, Side, 100 |
| 9 |
0208510 |
SOUND BLANKET, Top |
| 9 |
0911531 |
SOUND BLANKET, Top, 100 |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 13 |
0211966 |
FRAME, Front & rear |
| 13 |
0335035 |
APPLIQUE, Front |
| 18 |
0211752 |
APPLIQUE, Rear, 115 models |
| 19 |
0211745 |
APPLIQUE, Rear, 90 models |
| 21 |
0211703 |
PLATE, Front, 90/115 Jet |
| 21 |
0211965 |
PLATE, Front & rear |
| 22 |
0432828 |
AIR INLET, Port |
| 23 |
0398445 |
AIR INLET, Star This part replaces 0432829. |
| 25 |
0211688 |
APPLIQUE, Evinrude This part replaces 0211749. |
| 26 |
0378347 |
CORDE DE LANCEUR |
| 27 |
0283782 |
DECAL SET |
| 27 |
0284344 |
DECAL SET |
| 27 |
0284349 |
DECAL SET, 100 |
| 27 |
0284671 |
DECAL SET, 90 Jet (65) |
| 27 |
0284672 |
DECAL SET, 115 Jet (80) |
