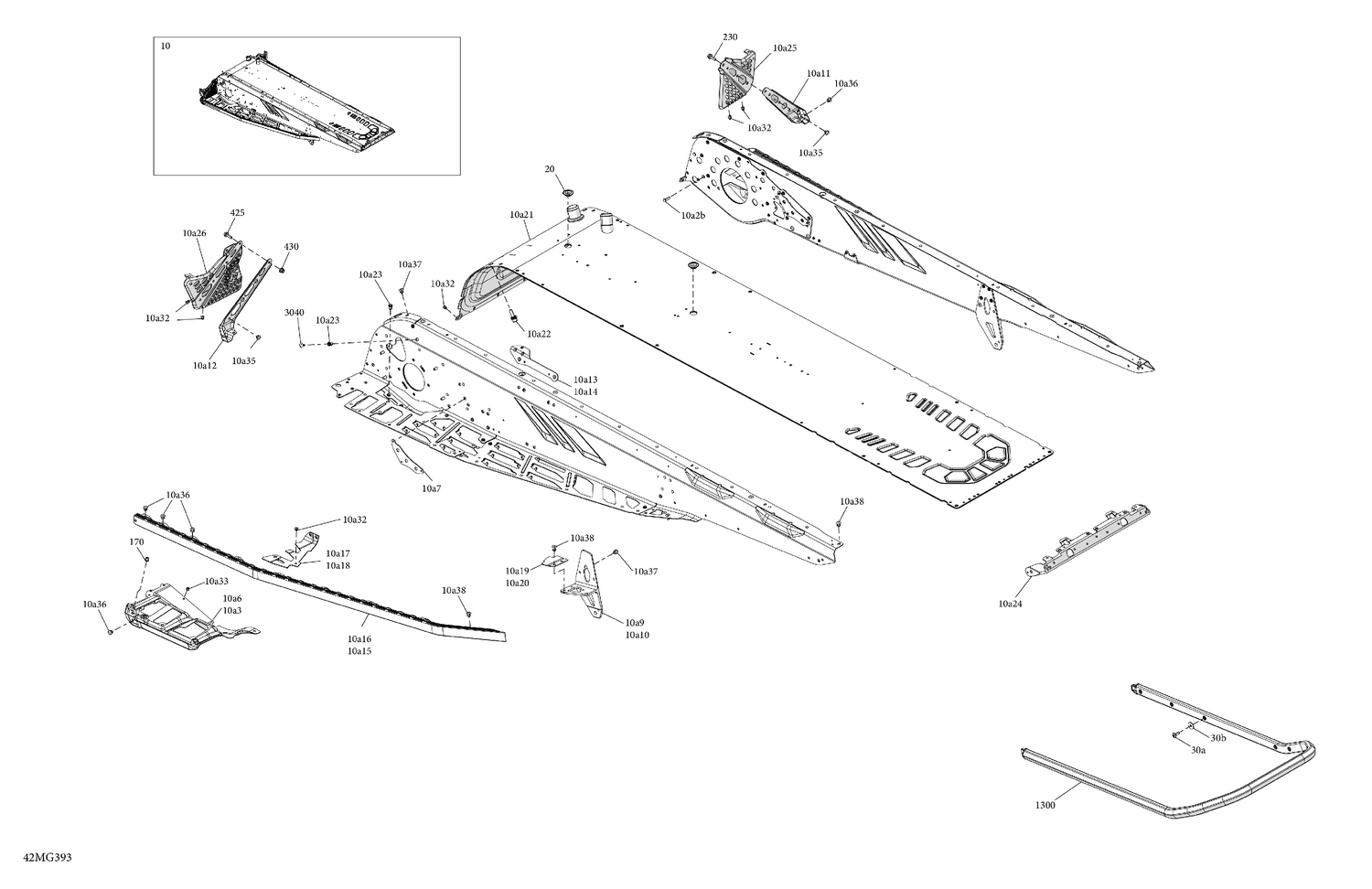

| Ref | Part Number | Description |
|---|
| 10 |
415131147 |
Deep Black, Chassis Tunnel Module 146 |
| 10a10 |
518329633 |
RH Bracket This part replaces 518329633. |
| 10a11 |
518334507 |
Stirrup Reinforcement |
| 10a12 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a13 |
518330299 |
LH Member Fixation Plate |
| 10a14 |
518331745 |
RH Under Chassis Reinforcement |
| 10a15 |
518328451 |
RH Roller |
| 10a16 |
518328452 |
LH Roller |
| 10a17 |
518332296 |
LH Footrest Reinforcement |
| 10a18 |
518332297 |
RH Footrest Reinforcement |
| 10a19 |
518329088 |
LH Reinforcement Plate |
| 10a20 |
518329089 |
RH Reinforcement Plate |
| 10a21 |
518336164 |
Radiator Tunnel 146 |
| 10a22 |
250300652 |
Protruding Stud M8 x 22 |
| 10a23 |
605636003 |
Clinch Nut M6 Hexsert |
| 10a24 |
518328990 |
Rear Cap |
| 10a25 |
518333006 |
RH Footrest |
| 10a26 |
518333858 |
LH Footrest |
| 10a2b |
250300027 |
Clinch Stud M6 X 20 |
| 10a3 |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10a32 |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 10a33 |
293150313 |
Rivet Ornit 4,8 X 8,8 |
| 10a35 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a36 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a37 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10a38 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a6 |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10a7 |
518337017 |
Front Suspension Arm Reinforcement |
| 10a9 |
518329632 |
LH Bracket |
| 20 |
293730052 |
Black, Plug |
| 30a |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1300 |
518329553 |
Rear Bumper 146 |
| 3040 |
293730079 |
Dart |
