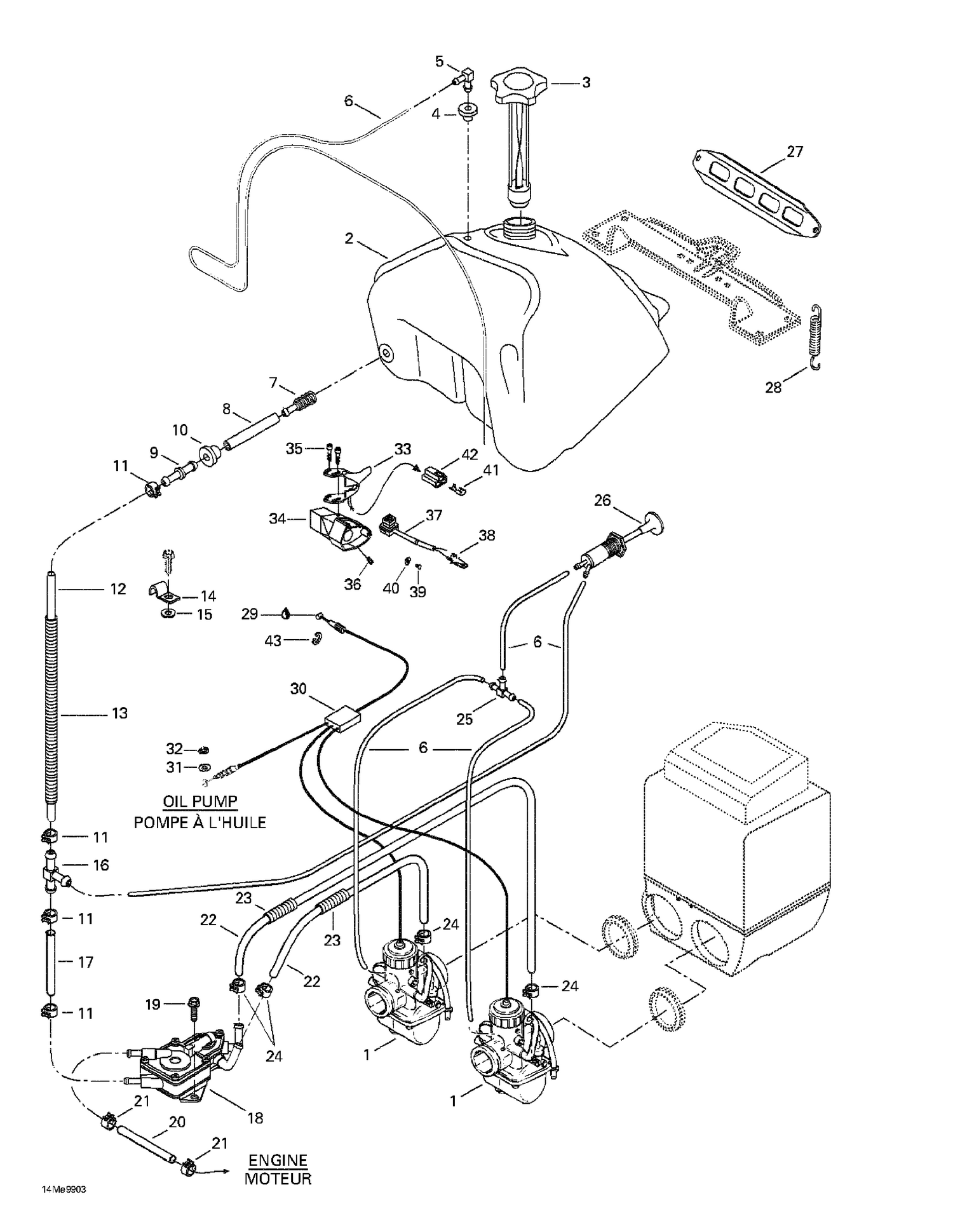

02- Fuel System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 572109000 | Fuel Tank |
| 3 | 513033025 | Fuel Tank Cap This part replaces 572039600. |
| 4 | 709200285 | Grommet This part replaces 570135100. |
| 5 | 414814100 | Male Connector |
| 6 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 14 | 415018200 | CLIP - Call your local BRP dealership |
| 16 | 414222500 | T-fitting |
| 19 | 732601120 | Hex. Screw M6 x 12 |
| 20 | 219704549 | Hose This part replaces 219704439. |
| 21 | 414415200 | Spring Clamp |
| 22 | 415117800 | Tube |
| 23 | 219704407 | Tubing 10 MM 1000MM Long |
| 24 | 414420700 | Spring Clamp |
| 25 | 414222400 | T-Fitting |
| 26 | 415060500 | Primer |
| 27 | 517249200 | Fuel Tank Bracket |
| 28 | 517182100 | SPRING - Call your local BRP dealership |
| 29 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 30 | 414968801 | Throttle Cable and Housing (38 mm) |
| 31 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 32 | 414753500 | Circlip |
| 33 | 512059348 | Handle Ass'y This part replaces 572056900. |
| 34 | 572028600 | Throttle Handle Housing |
| 35 | 732601143 | Flange Screw |
| 36 | 414440800 | Socket Set Screw M8 X 10 |
| 37 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 38 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 39 | 414473200 | Screw |
| 40 | 391300700 | WASHER-FLAT - Call your local BRP dealership |
| 41 | 515175253 | FEMALE TERMINAL - Call your local BRP dealership |
| 42 | 409008500 | Female Terminal Housing (3 circuits) |
| 415119300 | Raccord | En T 415119300 |
