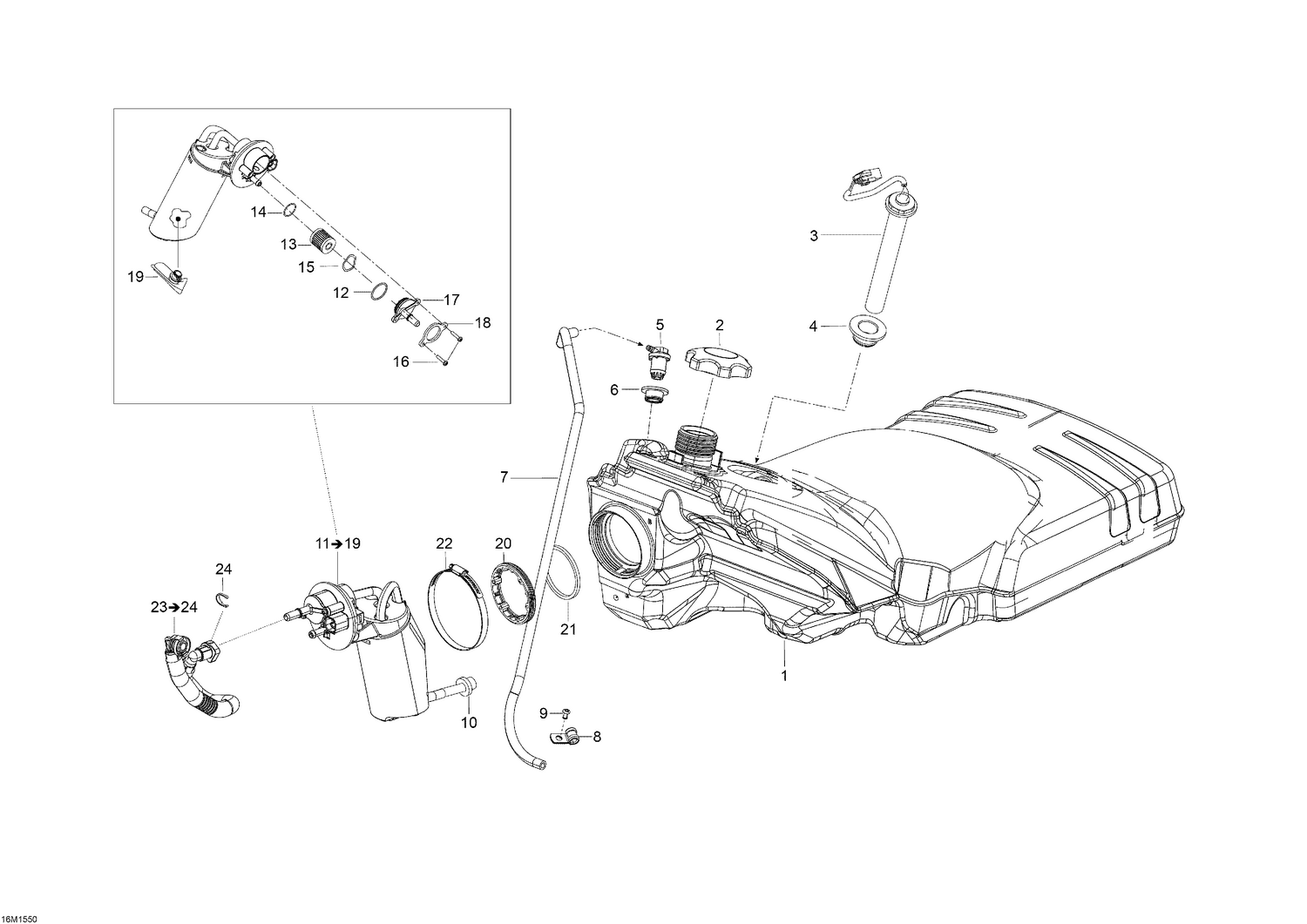

02- Fuel System _16M1550
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033635 | FUEL TANK - Call your local BRP dealership |
| 3 | 513033538 | Fuel Sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8 | 293650256 | Clamp This part replaces 715900250. |
| 9 | 390909200 | Avex Rivet |
| 10 | 280000674 | Grommet |
| 12 | 415129509 | O-Ring |
| 13 | 415129510 | Fuel Filter |
| 14 | 415129511 | O-Ring |
| 15 | 415129512 | Wave Washer |
| 16 | 415129513 | Screw |
| 17 | 415129685 | Cover |
| 18 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 19 | 415129451 | Fuel Filter |
| 20 | 513033180 | Ring |
| 21 | 513033334 | Gasket |
| 22 | 513033628 | Clamp |
