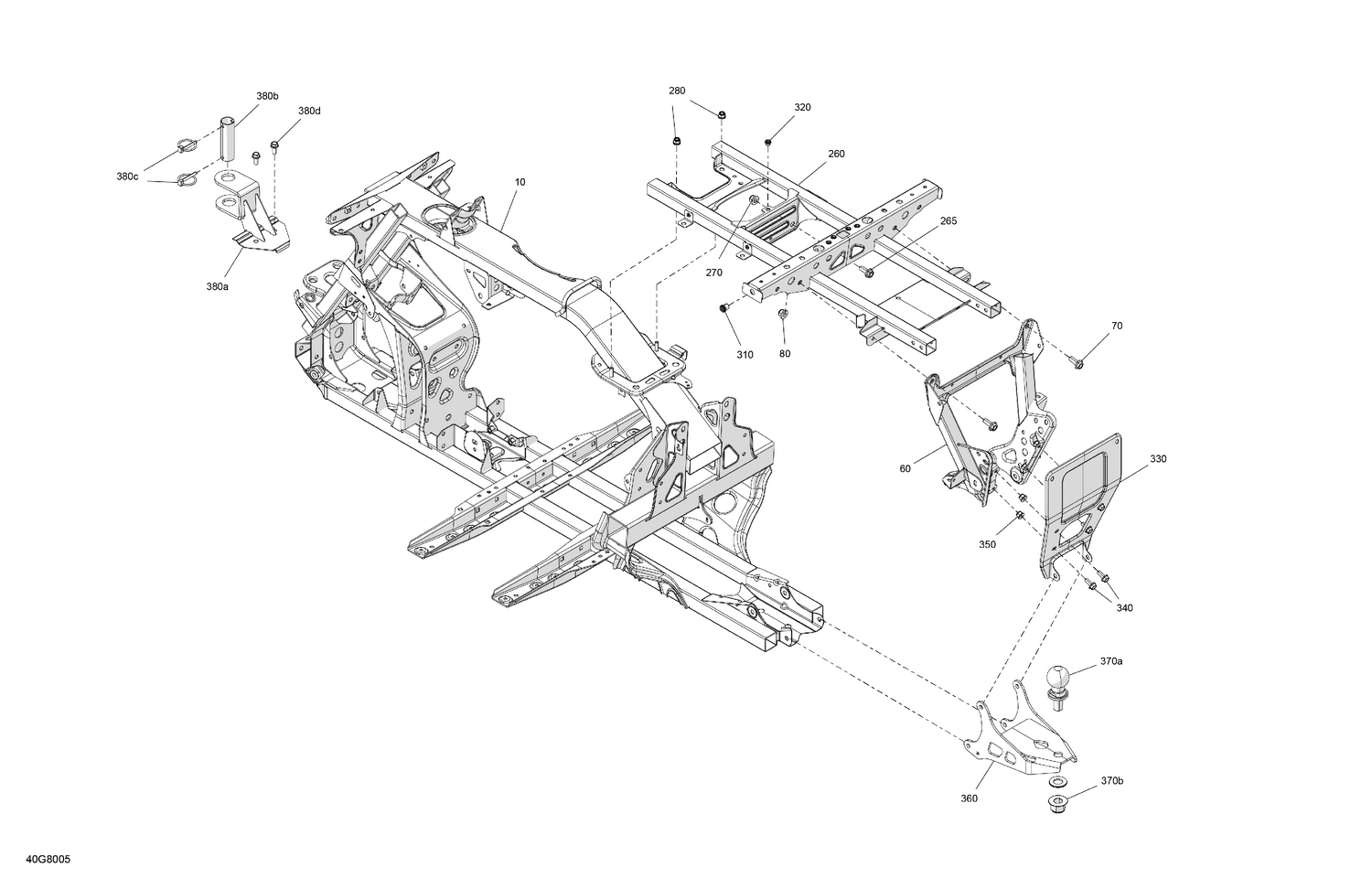

06- Frame - System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705206365 | Black Frame |
| 60 | 705210818 | Rear Pillar This part replaces 705203387. |
| 70 | 207602546 | Hex. Flange Screw M10 X 25 |
| 80 | 233201436 | Hex. Flange Elastic Nut M10 |
| 260 | 705203362 | Black, Frame Extension |
| 265 | 207602546 | Hex. Flange Screw M10 X 25 |
| 270 | 233201436 | Hex. Flange Elastic Nut M10 |
| 280 | 233281414 | Hex. Flange Elastic Nut M8 |
| 310 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 320 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 330 | 705203541 | Rear Support |
| 340 | 207682046 | Hex. Flange Screw M8 X 20 |
| 350 | 233281416 | Hex. Elastic Flange Nut M8 |
| 360 | 715001925 | Black Trailer Hitch Kit |
| 370a | 705204974 | Coupling Ball Ass'y |
| 370b | 250100104 | Elastic Flange Nut M20 |
| 380a | 705204970 | Front Coupling Device |
| 380b | 605456511 | Pin |
| 380c | 605456518 | Pin |
