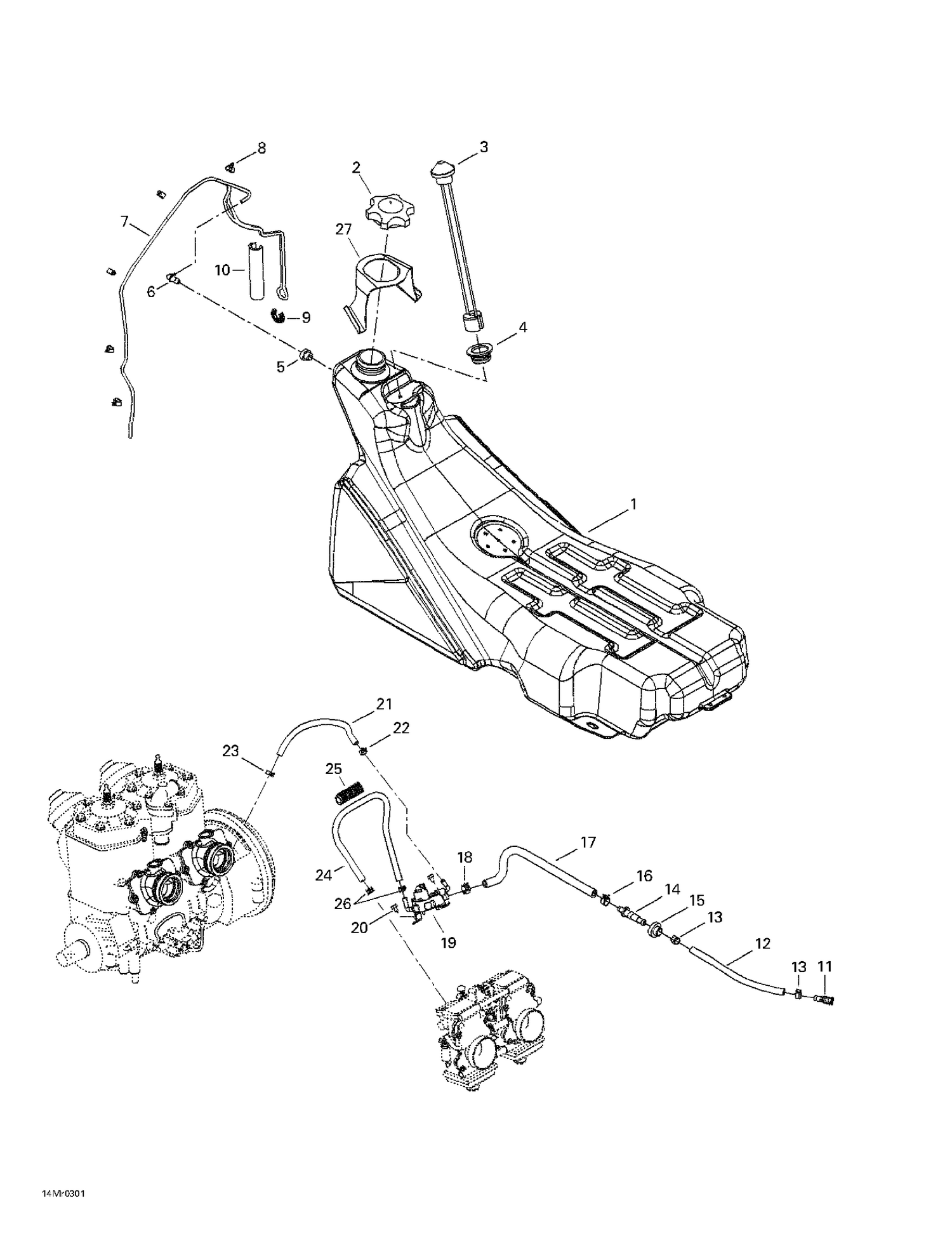

02- Fuel System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033080 | Fuel Tank |
| 2 | 513033025 | Fuel Tank Cap |
| 3 | 513033358 | FUEL GAUGE - Call your local BRP dealership This part replaces 513033067. |
| 4 | 293720058 | Grommet |
| 5 | 513032908 | Grommet |
| 6 | 414814100 | Male Connector |
| 7 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 8 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 9 | 414818200 | SPRING - Call your local BRP dealership |
| 10 | 512059750 | PROTECTOR - Call your local BRP dealership |
| 11 | 414872100 | Fuel Filter Strainer |
| 12 | 513033070 | Hose |
| 13 | 513033010 | Norma Spring Clamp |
| 14 | 414872700 | Male Connector |
| 15 | 707800347 | Grommet This part replaces 570273900. |
| 16 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 17 | 513033374 | Formed Hose This part replaces 513033027. |
| 18 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 20 | 210361280 | HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 21 | 513033035 | HOSE - Call your local BRP dealership |
| 22 | 414415200 | Spring Clamp |
| 23 | 513033029 | Universal Spring Clamp |
| 24 | 415117800 | Tube |
| 25 | 219704407 | Tubing 10 MM 1000MM Long |
| 26 | 414420700 | Spring Clamp |
