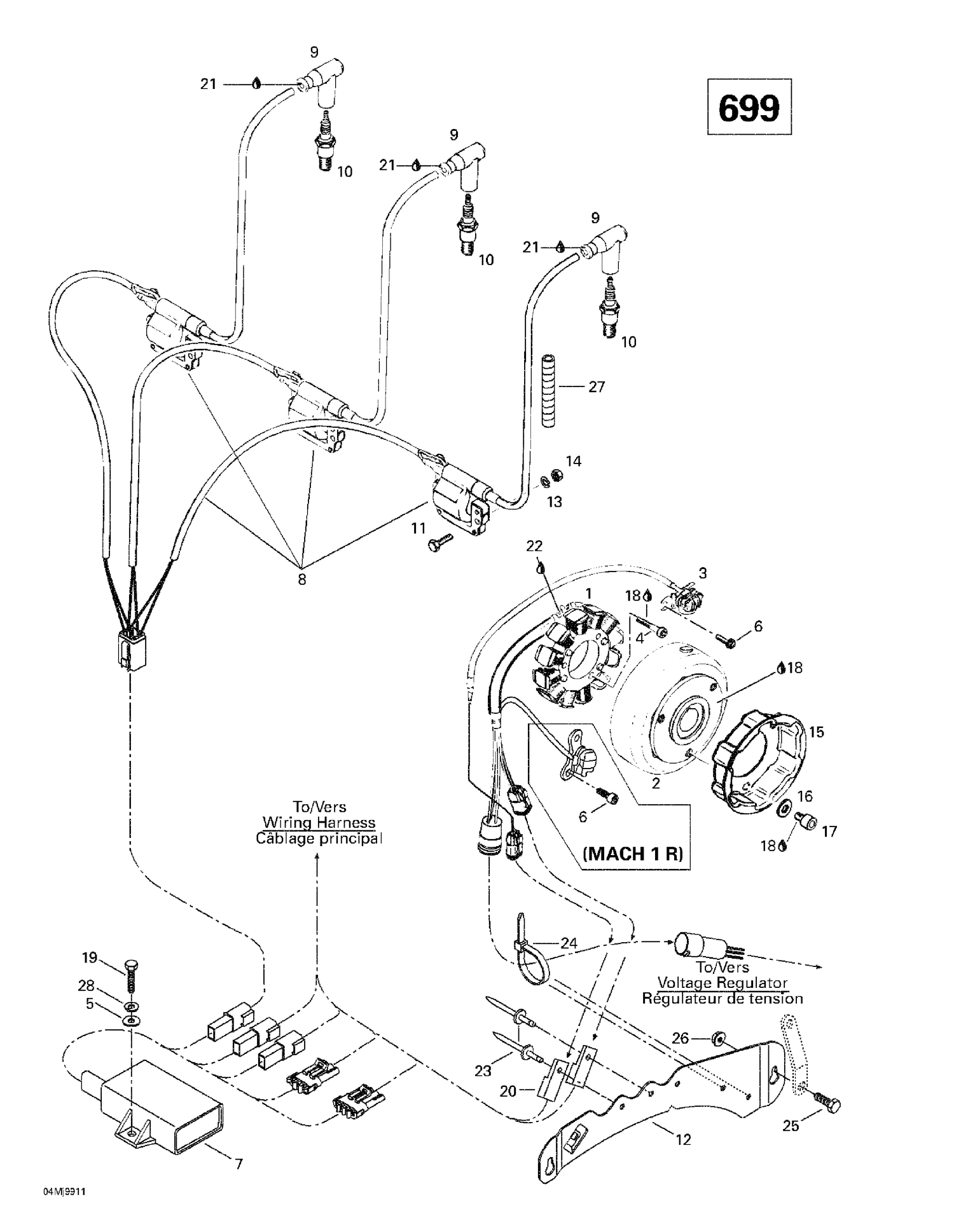

| Ref | Part Number | Description |
|---|
| 3 |
410922918 |
Pick Up Ass'y |
| 4 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 5 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 6 |
420840391 |
Allen Screw M6 X 14 |
| 9 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 10 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 11 |
207162044 |
Hex. Screw M6 X 20 |
| 12 |
515175148 |
Housing Support |
| 13 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 15 |
420852418 |
Starting Pulley |
| 16 |
420827405 |
Flat Washer |
| 17 |
420841520 |
Socket Head Screw M8 X 12 |
| 18 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 19 |
207161644 |
Hex. Screw M6 X 16 |
| 20 |
270000141 |
Clip |
| 21 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 22 |
Not |
Available As Spare Part - Silastic 732 RTV ,100 gr |
| 23 |
Not |
Available As Spare Part - Rivet |
| 24 |
414115200 |
Tie-Rap 180 mm |
| 25 |
207151444 |
Hex. Screw M5 X 14 This part replaces 222051465. |
| 26 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 27 |
219704407 |
Tubing 10 MM 1000MM Long |
