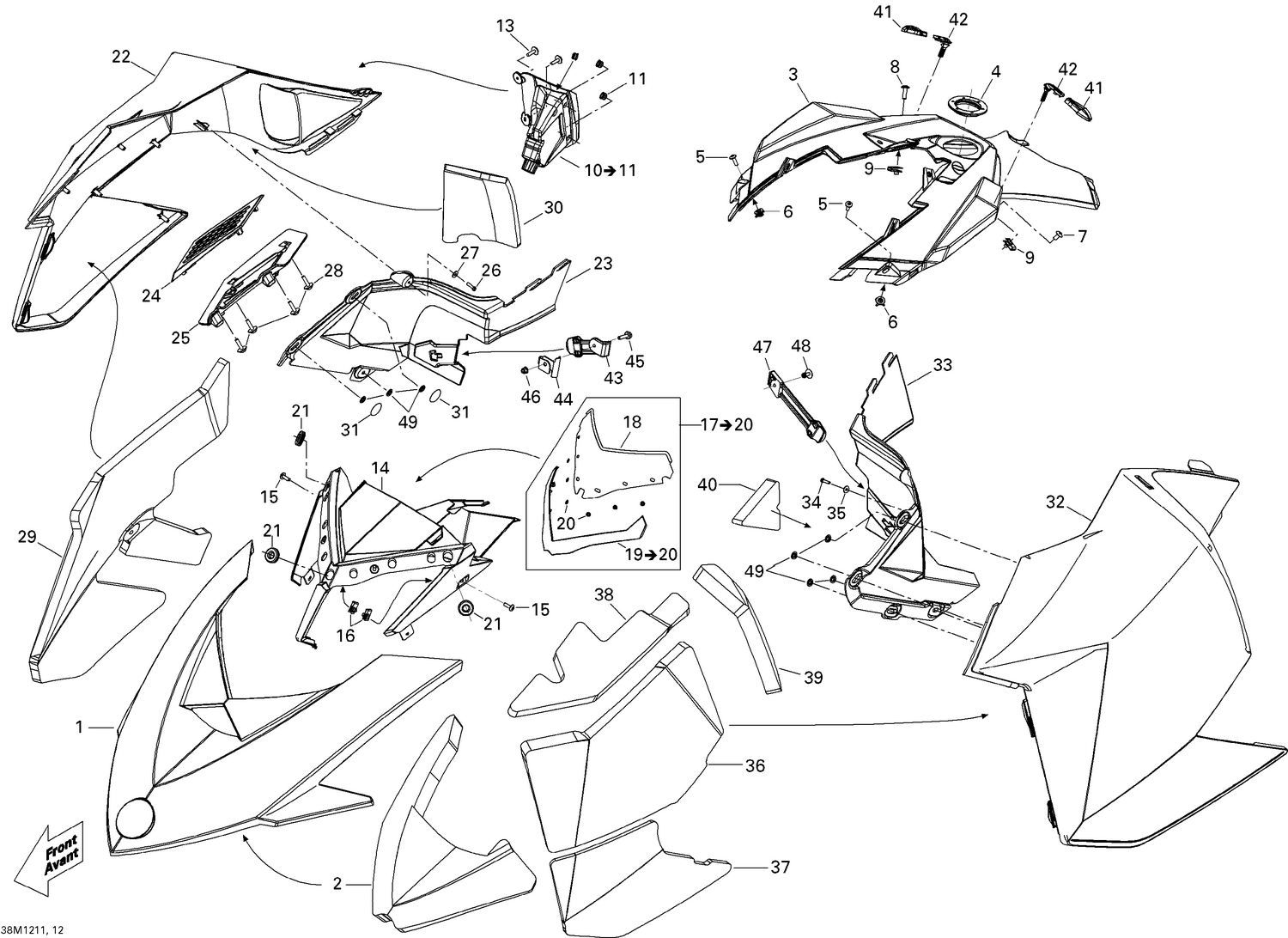

| Ref | Part Number | Description |
|---|
| 2 |
517304913 |
Hood Foam |
| 4 |
517304518 |
Console Nut |
| 5 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 6 |
732610057 |
JACK NUT M6 - Call your local BRP dealership |
| 7 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 8 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 9 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 11 |
275500241 |
Black, Cap |
| 13 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 14 |
517304581 |
GAUGE SUPPORT - Call your local BRP dealership |
| 15 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 16 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 18 |
Not |
Available As Spare Part - Low Windshield 140 |
| 19 |
860200089 |
Windshield Support Kit This part replaces 517303757. |
| 20 |
732610072 |
Push Nut |
| 21 |
517303756 |
Grommet |
| 22 |
517304422 |
PANEL_BODY RH B-229 - Call your local BRP dealership |
| 23 |
517303671 |
Deep Black RH Moulding Panel |
| 24 |
517304763 |
EXTERNAL GRILL - Call your local BRP dealership |
| 25 |
517304764 |
INTERNAL GRILL - Call your local BRP dealership |
| 26 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 27 |
234042600 |
Flat Washer 4 mm, Stainless |
| 28 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 29 |
517304883 |
RH Center Foam |
| 30 |
517304884 |
RH Panel Rear Foam |
| 31 |
518325560 |
Adhesive Patch |
| 32 |
517304426 |
PANEL_BODY LH B-229 - Call your local BRP dealership |
| 33 |
517303673 |
Deep Black, LH Moulding Panel |
| 34 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 35 |
234042600 |
Flat Washer 4 mm, Stainless |
| 36 |
517304887 |
LH Panel Center Foam |
| 37 |
517304888 |
LH Panel Lower Foam |
| 38 |
517304889 |
LH Panel Upper Foam |
| 39 |
517304890 |
LH Panel Rear Foam |
| 40 |
517304891 |
Foam |
| 41 |
517304435 |
END PIECE LATCH - Call your local BRP dealership |
| 42 |
517303981 |
Panel Latch |
| 43 |
517303612 |
RH Panel Latch |
| 44 |
517304221 |
Latch Support |
| 45 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 46 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 47 |
517303808 |
LH Panel Latch |
