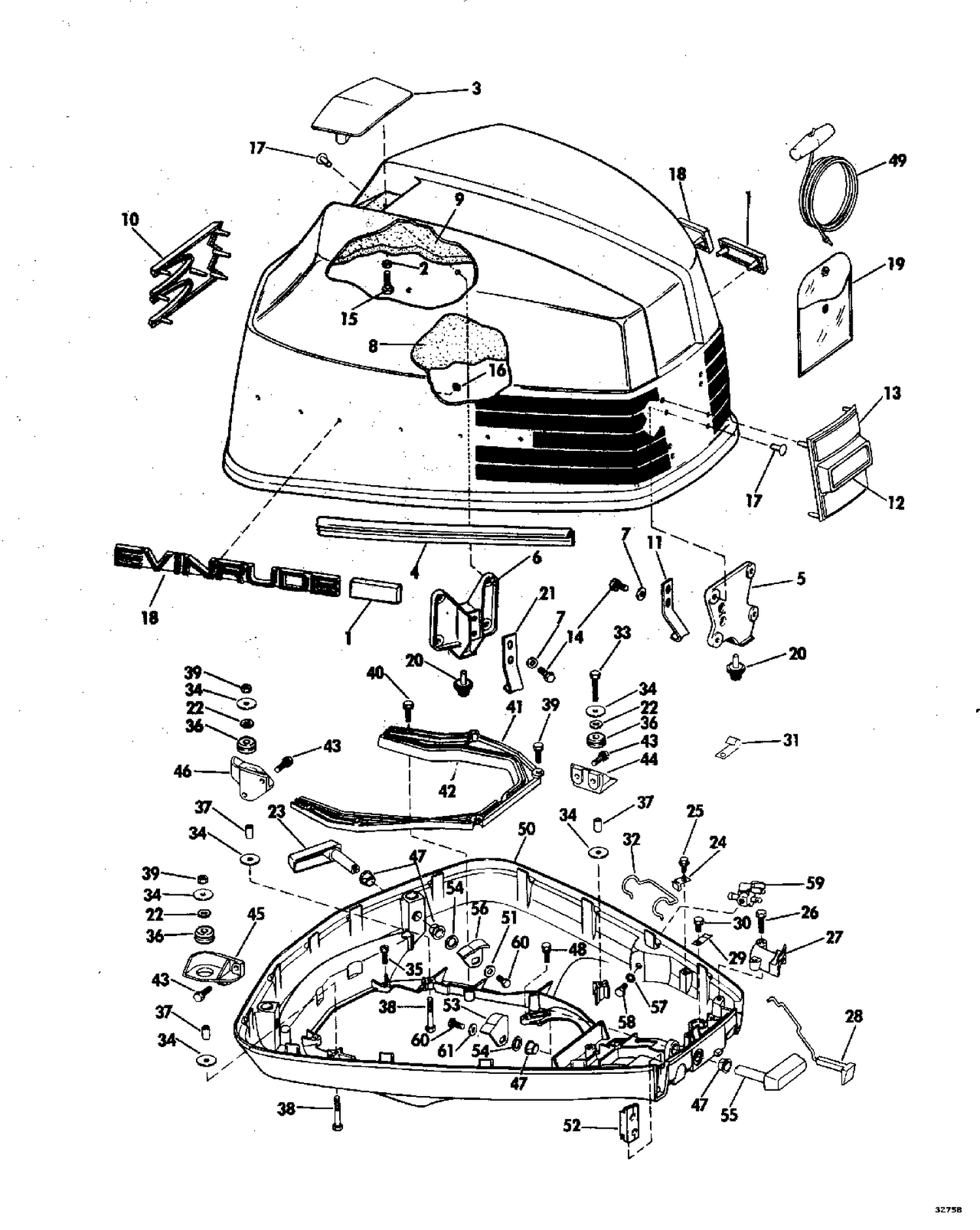

| Ref | Part Number | Description |
|---|
| 1 |
0207029 |
APPLIQUE, Port & stbd |
| 2 |
0301814 |
WASHE,Tilt handle |
| 3 |
0206317 |
TILT HANDLE |
| 4 |
0206320 |
SEAL, Motor cover |
| 5 |
0389971 |
LOCATING BARCKET, Front This part replaces 0206321. |
| 6 |
0394976 |
LOCATING BRACKET, Rear This part replaces 0206322. |
| 7 |
0306407 |
LOCCKWASHER,Cover latch |
| 8 |
0206325 |
SOUND BLANKET, Side |
| 9 |
0206326 |
SOUND BLANDKET. TOP |
| 10 |
0206998 |
APPLIQUE, Rear |
| 11 |
0323175 |
HOOK , Motor Cover, Front This part replaces 0315199. |
| 12 |
0207013 |
PLATE, Front |
| 13 |
0207004 |
APPLIQ UE, Front |
| 14 |
0315382 |
SCREW, Hook |
| 15 |
0312299 |
VIS, serre-câble |
| 17 |
0314135 |
RIVER, Locating bracket |
| 18 |
0207003 |
APPLIQUE, 40 hp |
| 19 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 23 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 27 |
0318849 |
CLAMP, Instrument cable This part replaces 0206318. |
| 28 |
0383639 |
CHOKE KNOB & ROD ASSY. |
| 29 |
0315135 |
DETENT, Choke knob |
| 30 |
0313117 |
SCR,Clamp,eng cable |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 33 |
0308995 |
SCREW, Front mount |
| 35 |
0551793 |
SCREW |
| 36 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 37 |
0302406 |
SLEEVE |
| 38 |
0306493 |
SCREW, Regulator mounting |
| 39 |
0311375 |
NUT |
| 40 |
0309405 |
SCREW |
| 41 |
0383640 |
FRAME AND SEAL ASSEMBLY |
| 42 |
0315115 |
SEAL, Frame |
| 43 |
0553556 |
SCREW, Housing to cylinder |
| 44 |
0315111 |
SUPPORT, Front |
| 45 |
0315113 |
SUPORT, Stbd, rear |
| 46 |
0315112 |
SUPPORT, Port rear |
| 48 |
0308753 |
SCREW, Fram to c'case |
| 49 |
0378347 |
CORDE DE LANCEUR |
| 50 |
0207049 |
MOTOR COVER, Lower |
| 52 |
0323428 |
GROMMET This part replaces 0318368. |
| 53 |
0323170 |
HOOK Front and stbd., rear This part replaces 0315178. |
| 55 |
0383641 |
LATCH HANDEL ASSY., Front |
| 56 |
0323169 |
HOOK, Lower rear port This part replaces 0315177. |
| 58 |
0306419 |
SCREW |
| 59 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 60 |
0552062 |
SCREW, Clamp |
| 0279536 |
0279536 |
MOTOR COVER ASSY |
| 0279557 |
0279557 |
DECAL SET |
