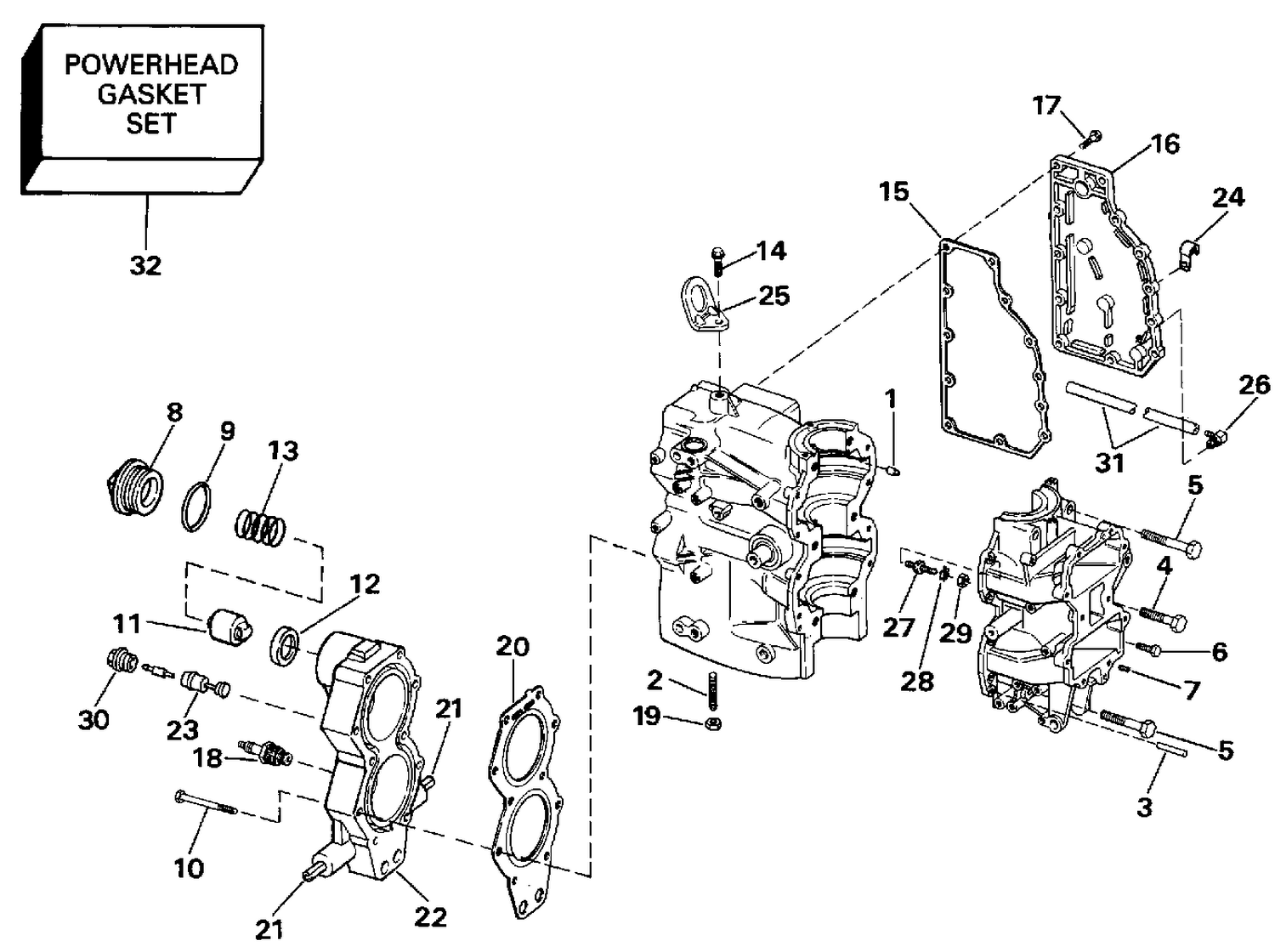

| Ref | Part Number | Description |
|---|
| 8 |
0332944 |
COVER, Thermostat |
| 9 |
0331188 |
O-Ring |
| 10 |
0322323 |
SCREW |
| 11 |
0433379 |
THERMOSTAT |
| 12 |
0334742 |
GASKET, Thermostat |
| 13 |
0331186 |
SPRING |
| 14 |
0314515 |
SCREW |
| 15 |
0325211 |
GASKET |
| 16 |
0437506 |
COVER & PLUG Assy, Water passage This part replaces 0433561. |
| 17 |
0302288 |
BOLT |
| 18 |
0432921 |
SPARK PLUG, Champion, L78C |
| 18 |
0432981 |
SP PLG QL78C |
| 19 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 20 |
0335359 |
GASKET, Cylinder head |
| 22 |
0432619 |
CYL HEAD AY |
| 23 |
0584592 |
SWITCH, Temperature |
| 24 |
0330151 |
CLAMP, Harness to oil tank boss |
| 25 |
0326023 |
LIFT BRACKET |
| 31 |
HOSE, |
Overboard indicator, 28" |
| 0397517 |
0397517 |
CYL,CRKC,DWL AY |
