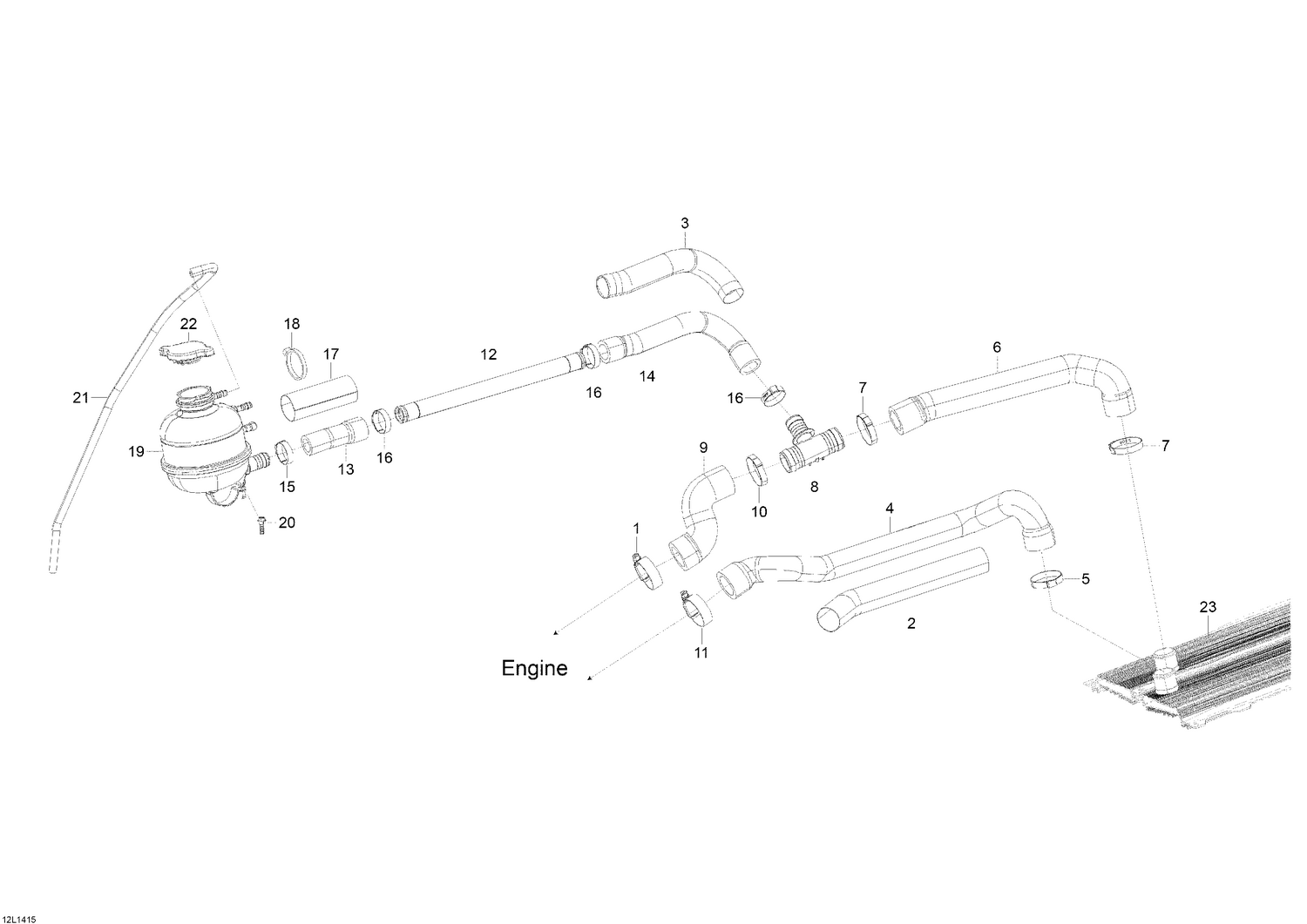

01- Cooling System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 2 | 509000513 | Protector Tube |
| 3 | 509000513 | Protector Tube |
| 4 | 509000836 | Radiator Hose |
| 5 | 509000529 | Crimp Clamp |
| 6 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 7 | 509000529 | Crimp Clamp |
| 8 | 509000372 | T-Fitting |
| 9 | 509000565 | Radiator Hose |
| 10 | 509000529 | Crimp Clamp |
| 11 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 12 | 509000644 | PIPE - Call your local BRP dealership |
| 13 | 509000698 | HOSE - Call your local BRP dealership |
| 14 | 509000563 | HOSE - Call your local BRP dealership |
| 15 | 509000442 | Crimp Clamp |
| 16 | 293650099 | Crimp Clamp |
| 17 | 707001349 | Protector Tube |
| 18 | 414115200 | Tie-Rap 180 mm |
| 19 | 509000421 | Coolant Tank |
| 20 | 241151640 | Hex. Flange Screw K50 x 16 |
| 21 | 276000048 | Hose |
| 22 | 509000180 | Radiator Pressure Cap |
