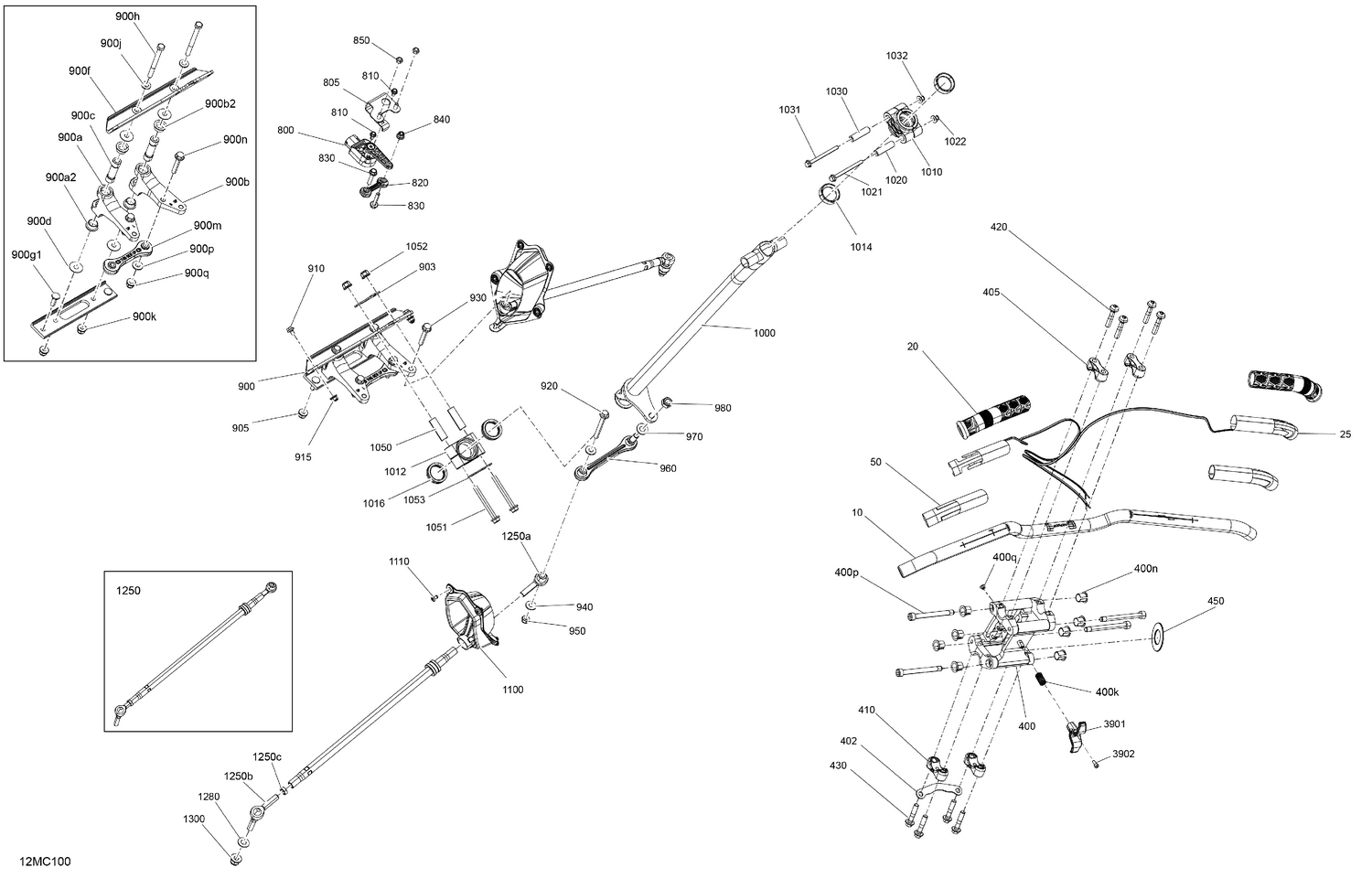

03- Mechanic - Steering
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506153209 | Black, Handle Bar |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152856 | Heated Film |
| 50 | 506153176 | Thermal Insulation |
| 400k | 506152820 | Spring |
| 400n | 506152520 | Cushion |
| 400p | 205588554 | Socket Head Screw M8 X 85 |
| 400q | 390402200 | Pop Rivet 3/16" |
| 402 | 506153028 | Steering Stopper |
| 405 | 506152894 | Steering Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 450 | 506152992 | Washer |
| 800 | 710004740 | Suspension Sensor |
| 805 | 506153200 | Central Sensor Support |
| 810 | 207551044 | Hex. Flange Screw M5 X 10 |
| 820 | 505074754 | Ball Joint |
| 830 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 840 | 233261466 | Hex. Flange Elastic Nut M6 |
| 850 | 232561434 | Elastic Stop Nut M6 |
| 900a2 | 503194671 | Bushing |
| 900b2 | 503194671 | Bushing |
| 900c | 506152792 | Swivel Pivot |
| 900d | 503191800 | Washer |
| 900f | 506153198 | Steering Support |
| 900g1 | 250300038 | Clinch Stud |
| 900h | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 900j | 503192494 | Washer |
| 900k | 233281466 | Elastic Flange Nut M8 |
| 900m | 506152755 | Ball Joint |
| 900n | 250001028 | Hex. Flange Screw M6 X 45 |
| 900p | 506151245 | Washer |
| 900q | 233281466 | Elastic Flange Nut M8 |
| 903 | 506153157 | Steering Stopper |
| 905 | 233281416 | Hex. Elastic Flange Nut M8 |
| 910 | 207662044 | Hex. Flange Screw M6 X 20 |
| 915 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 920 | 207687044 | Hex. Flange Screw M8 X 70 |
| 930 | 207685044 | Hex. Flange Screw M8 X 50 |
| 940 | 506151245 | Washer |
| 950 | 233281416 | Hex. Elastic Flange Nut M8 |
| 960 | 506152753 | Ball Joint |
| 970 | 506152582 | Washer |
| 980 | 232500416 | Elastic Stop Nut M10 |
| 1000 | 506153026 | Main Tube |
| 1010 | 506152219 | Upper Half Housing |
| 1012 | 506153048 | Lower Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506153249 | Housing Bushing |
| 1021 | 250001114 | Hex. Flange Screw M6 x 75 |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1030 | 506153249 | Housing Bushing |
| 1031 | 250001114 | Hex. Flange Screw M6 x 75 |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1050 | 506153248 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1250a | 506152344 | LH Threaded Ball Joint |
| 1250b | 506152684 | RH Threaded Ball Joint |
| 1250c | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
| 1300 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 3901 | 506152821 | Handle |
