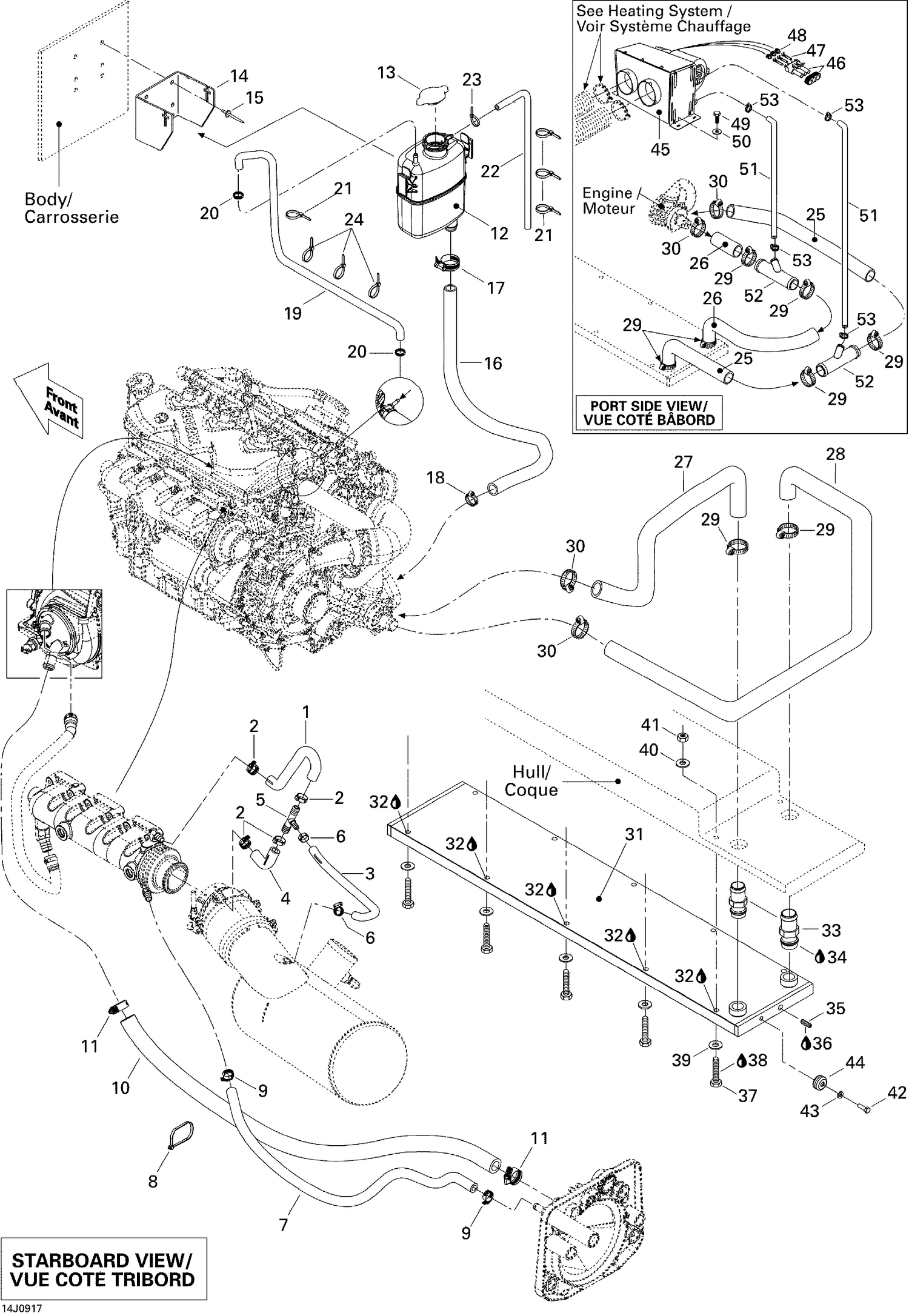

01- Cooling System — Parts Catalog

Parts (47)

Ref	Part Number	Description
1	276000484	Hose, Bypass Upper This part replaces 276000191.
2	293650172	Tridon Gear Clamp
3	276000246	Formed Hose This part replaces 276000209.
4	276000455	Hose, Bypass Lower This part replaces 276000137.
5	293710116	T-Fitting
6	293650171	Tridon Gear Clamp
7	219704394	Was 276000001 Hose 12.5 mm
8	293750008	Tie Wrap 368 mm
9	293650172	Tridon Gear Clamp
10	219704361	Hose 19.0Mm. 2000Mm Long
11	293650051	Tridon Gear Clamp
12	276000086	Coolant Tank
13	276000100	Pressure Cap
14	204300213	COOLANT TANK BRACKET - Call your local BRP dealership
15	204000081	Pop Rivet 3/16"
16	219704361	Hose 19.0Mm. 2000Mm Long
17	293650051	Tridon Gear Clamp
18	293650019	Tridon Gear Clamp
19	219704357	Was 275500549 Hose 1/4"
20	293650025	Oetiker Gear Clamp
21	293750002	Tie Wrap 142 mm
22	219704410	Polyurethane Hose 10000Mm Long
23	293750001	Tie Wrap 94 mm
24	293750002	Tie Wrap 142 mm
29	293650045	Tridon Gear Clamp
30	293650045	Tridon Gear Clamp
31	204300235	HEAT EXCHANGER - Call your local BRP dealership
32	219701421	Instant Gasket This part replaces 293800088.
33	204300133	Hose Fitting - Call your local BRP dealership
35	211500001	Pipe Plug Socket Head 1/8-27 Npt
36	219704454	Was 293800013 Loctite 56765
37	205405060	SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
38	293800060	Loctite 243, 10 ml
39	234000600	Flat Washer 10 mm, Stainless
40	234002600	Flat Washer 10 mm, Stainless
41	232001600	HEX. NUT M10 - Call your local BRP dealership
42	207362060	Hex. Screw M6 X 20, Scotch Grip
43	234061600	Stainless Flat Washer M6
44	271001813	Anode Zinc This part replaces 271001487.
45	204300198	HEATER UNIT - Call your local BRP dealership
46	278000273	Male Housing, 3 Circuits
47	278000223	Female Terminal
48	278000218	Wire Seal
49	211000021	PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
50	234052600	Flat Washer 5 mm, Stainless
51	204300204	HOSE 16 MM - Call your local BRP dealership
52	204130174	Y-Fitting
