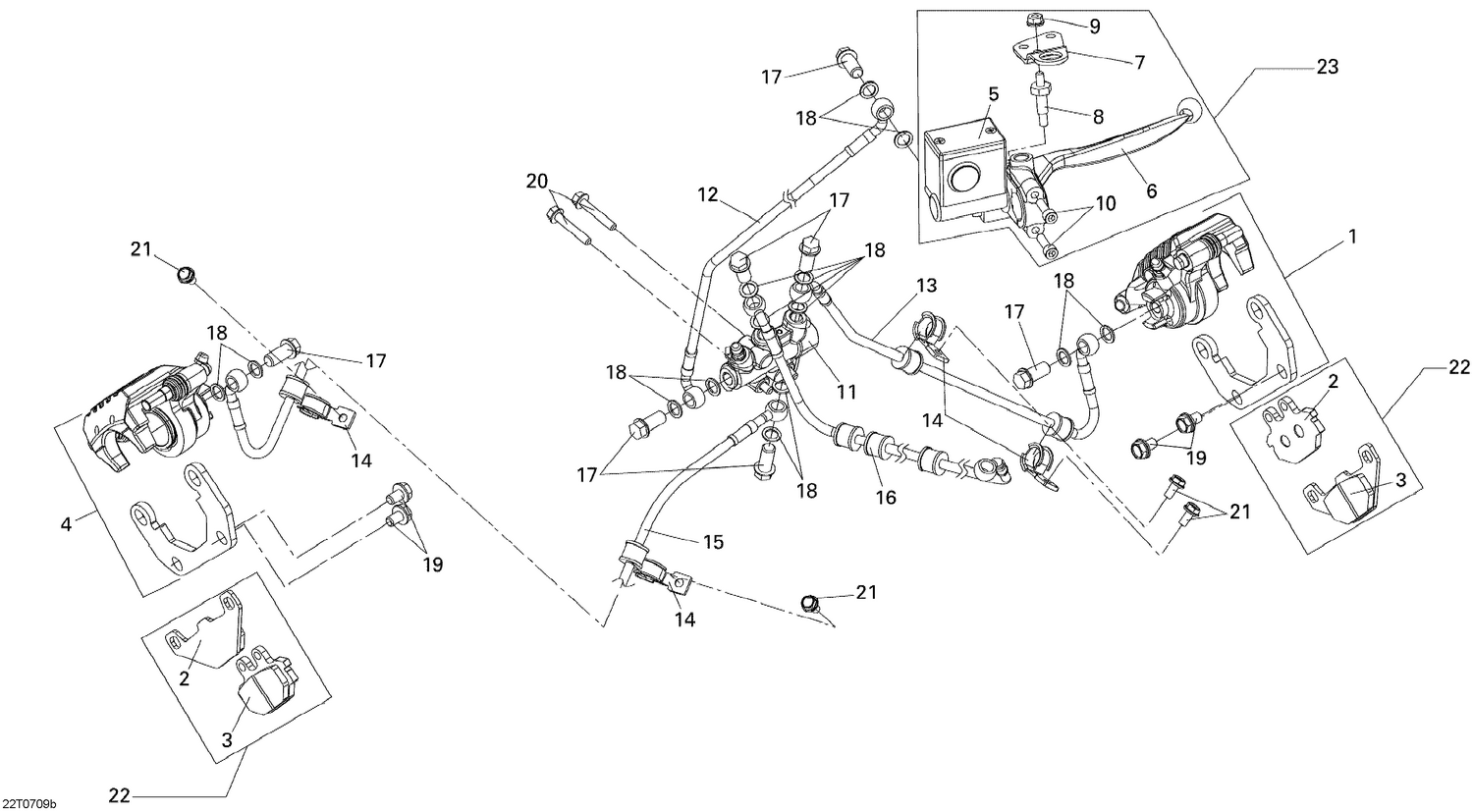

06- Brakes Front
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S45100RCA000 | RH Front Brake Caliper Ass'y |
| 2 | NASP/NDPR | Not Available As Spare Parts |
| 3 | NASP/NDPR | Not Available As Spare Parts |
| 4 | S45200RCA000 | LH Front Brake Caliper Ass'y |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | S53178RCA000 | PARKING STAY - Call your local BRP dealership |
| 8 | S90116RCA000 | Pivot Screw Lever |
| 9 | S9405006070 | Flanged Nut 6 mm |
| 10 | S967000602507 | Socket Bolt M6 X 25 |
| 11 | S46200RA10000 | Pressure Control Valve B |
| 12 | S46201RCA000 | RH.M/C HOSE - Call your local BRP dealership |
| 13 | S46203RCA000 | RH Front Caliper Hose |
| 14 | S45156H3C000 | Hose Clamp |
| 15 | S46204RCA000 | LH Front Caliper Hose |
| 16 | S46207RCA000 | Control Valve Hose |
| 17 | S90145M9Q000 | Banjo Bolt |
| 18 | S90545M9Q000 | Washer |
| 19 | S958010801607 | Flanged Bolt M8 X 16 |
| 20 | S958010603507 | Flanged Bolt M6 X 35 |
| 21 | S958010601207 | Flanged Bolt M6 X 12 |
| 22 | S45105BAA000A | Pad_Brake Kit This part replaces S4511ARA1000. |
