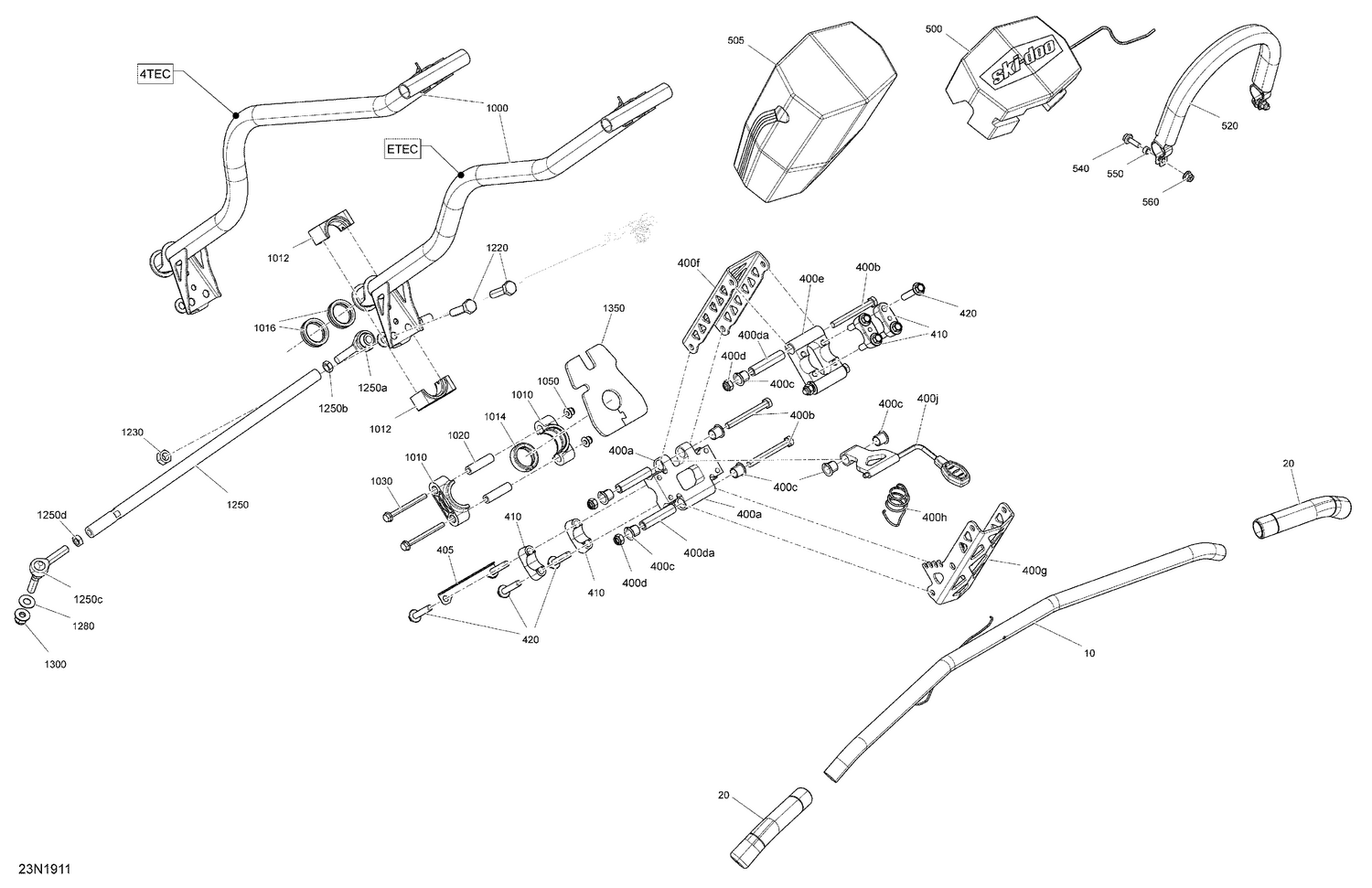

07- Steering - 600HO E-TEC SE
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152722 | Handle Bar |
| 20 | 506152483 | Grip |
| 400a | 506152177 | Machined Base |
| 400b | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 400c | 506152520 | Cushion |
| 400d | 233281414 | Hex. Flange Elastic Nut M8 |
| 400da | 506152267 | Aluminum Bushing |
| 400e | 506152268 | Bride Usinée |
| 400f | 506152533 | Front Extension |
| 400g | 506152534 | Rear Extension |
| 400h | 506152184 | Spring |
| 400j | 506152414 | Handle |
| 405 | 506152415 | Limiter Plate |
| 410 | 506152751 | Steering Support This part replaces 506152750. |
| 420 | 250000285 | Hex. Flange Screw M8 x 40 |
| 500 | 506152761 | Foam |
| 505 | 506152381 | Steering Cover |
| 520 | 506152115 | Strap Ass'y |
| 540 | 207662054 | Hex. Flange Screw M6 X 20 |
| 550 | 506152156 | Bushing |
| 560 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 506152962 | Steering Column |
| 1010 | 506152508 | Upper Half-Housing |
| 1012 | 506152217 | Lower Half-Housing |
| 1014 | 506152509 | Upper Anti-Vibration Gasket |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1030 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1050 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1220 | 207004044 | Hex. Screw M10 X 40 |
| 1230 | 232500416 | Elastic Stop Nut M10 |
| 1250 | 506152498 | Tie-Rod |
| 1250a | 506152081 | LH Thread Ball Joint |
| 1250b | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250c | 506152684 | RH Threaded Ball Joint |
| 1250d | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
| 1300 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
