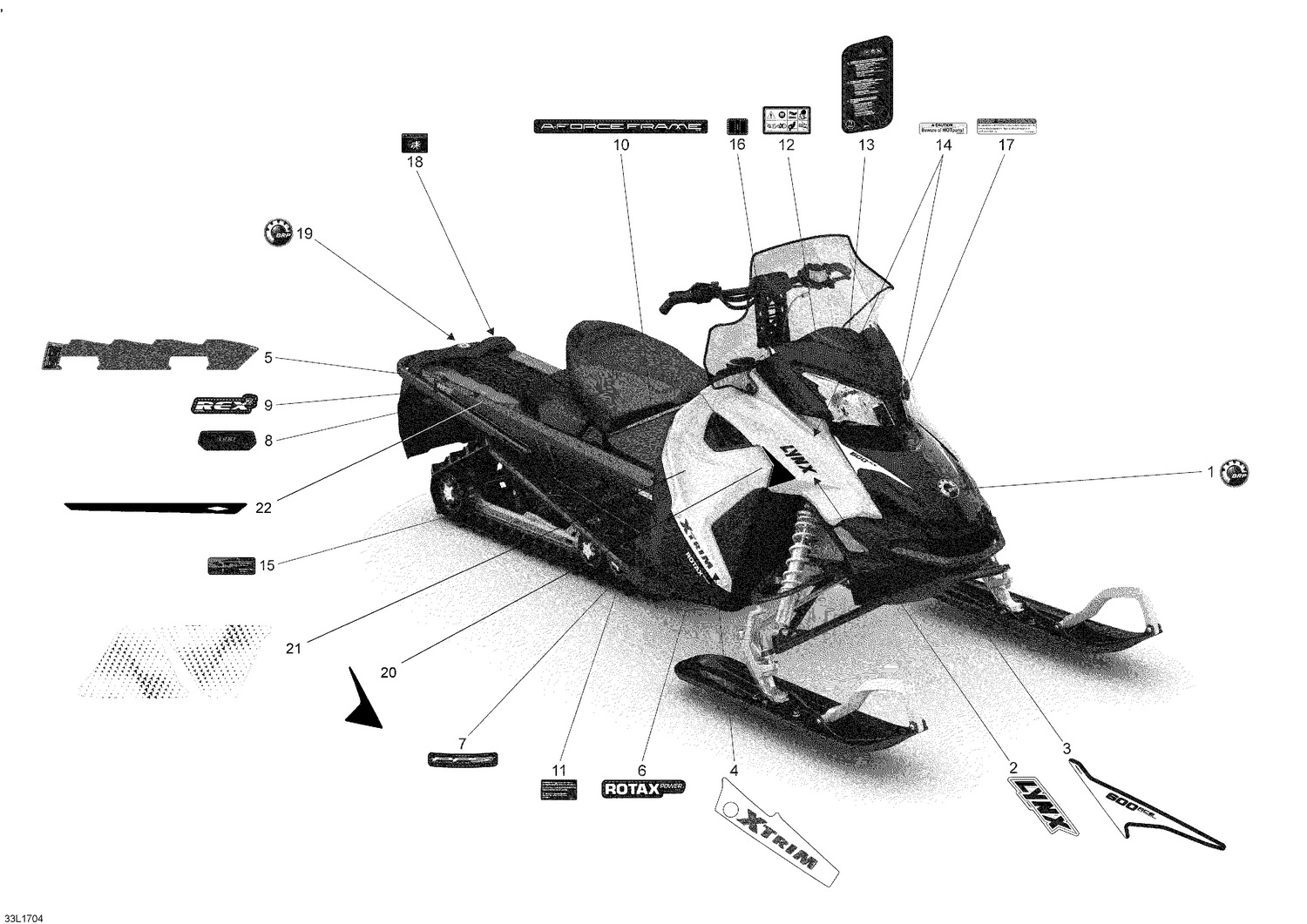

09- Decals
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516007549 | Gold Upper Side Panel Decal |
| 3 | 516006681 | LH Hood Decal |
| 3 | 516006682 | RH Hood Decal |
| 4 | 516007552 | Side Panel Decal |
| 5 | 516007557 | Top Tunnel Decal |
| 6 | 516006331 | Rotax Power Decal |
| 7 | 516006805 | PPS2 Decal |
| 8 | 516006485 | Q-Link Decal |
| 9 | 516007534 | REX II Platform Decal |
| 10 | 516007559 | A-Force Frame Decal |
| 11 | 5447012 | Oil Checking Label |
| 12 | 516003919 | Warning Decal |
| 13 | 516004607 | Label EN/FI/SWE |
| 14 | 516006903 | Hot Parts Decal |
| 15 | 516007588 | Track Tension Decal |
| 16 | 516006361 | Cover Decal |
| 17 | 516006900 | Security Label, Belt Guard |
| 18 | 516007584 | Warning Decal |
| 19 | 516008738 | Logo 48mm "BRP" This part replaces 516006887. |
| 20 | 516007551 | Upper Side Panel |
| 21 | 516007553 | Side Panel Decal |
