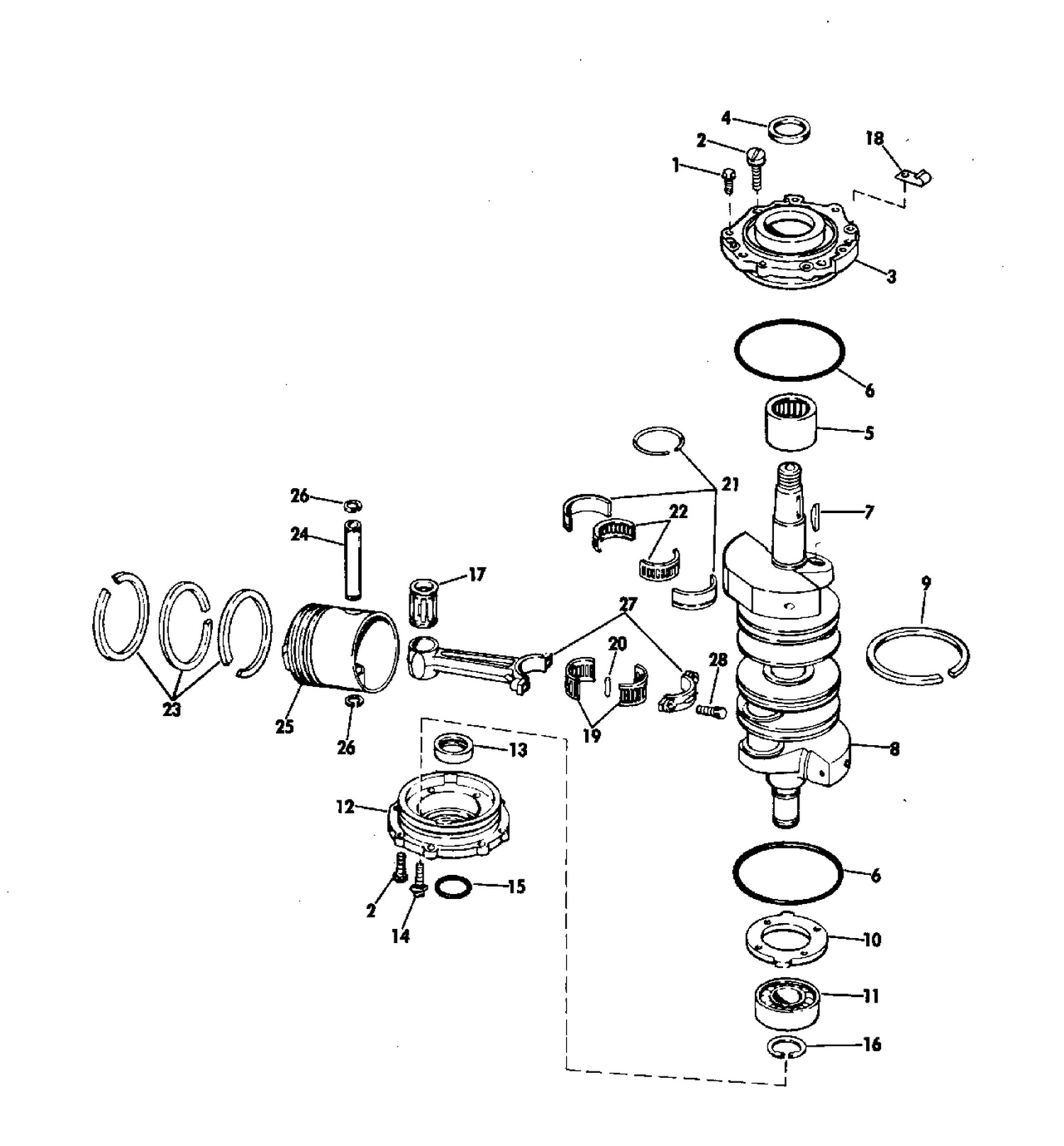

| Ref | Part Number | Description |
|---|
| 1 |
0308111 |
SCREW, C' case head upper |
| 2 |
0309924 |
SCREW |
| 3 |
0383502 |
C' CASE HEAD ASSY. |
| 5 |
0382398 |
BEARING, Roller |
| 6 |
0305123 |
O RING |
| 8 |
0383671 |
CRANKSHAFT AND RING ASSEMBLY |
| 9 |
0310044 |
SEAL RING (1 STRIPE) |
| 9 |
0310045 |
SEAL RING (2 STRIPES) |
| 9 |
0310046 |
SEAL RING (3 STRIPES) |
| 10 |
0308865 |
PLATE |
| 12 |
0383417 |
C' CASE HEAD ASSY. |
| 14 |
0311539 |
SCREW, Bearing plate |
| 17 |
0378251 |
BEARING SET, Needle, wrist pin |
| 18 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 19 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 20 |
0378515 |
BEARING SET, Needle,connecting rod |
| 21 |
0310433 |
SLEEVE |
| 22 |
0378252 |
BEARING ASSY., Needle |
| 23 |
0382825 |
PISTON RING SET, Standard |
| 23 |
0382826 |
PISTON RING SET, .020 o.s |
| 23 |
0382827 |
PISTON RING SET, .040 o.s |
| 24 |
0307145 |
PIN, Wrist |
| 25 |
0383698 |
PISTON AND DOWEL PIN ASSY., .040 O.S. |
| 25 |
0385282 |
PISTON, Std This part replaces 0383674. |
| 25 |
0385288 |
PISTON, .020 o.s. This part replaces 0383697. |
| 26 |
0302577 |
RETAINING RING |
| 27 |
0378260 |
CONN. ROD ASSEMBLY |
