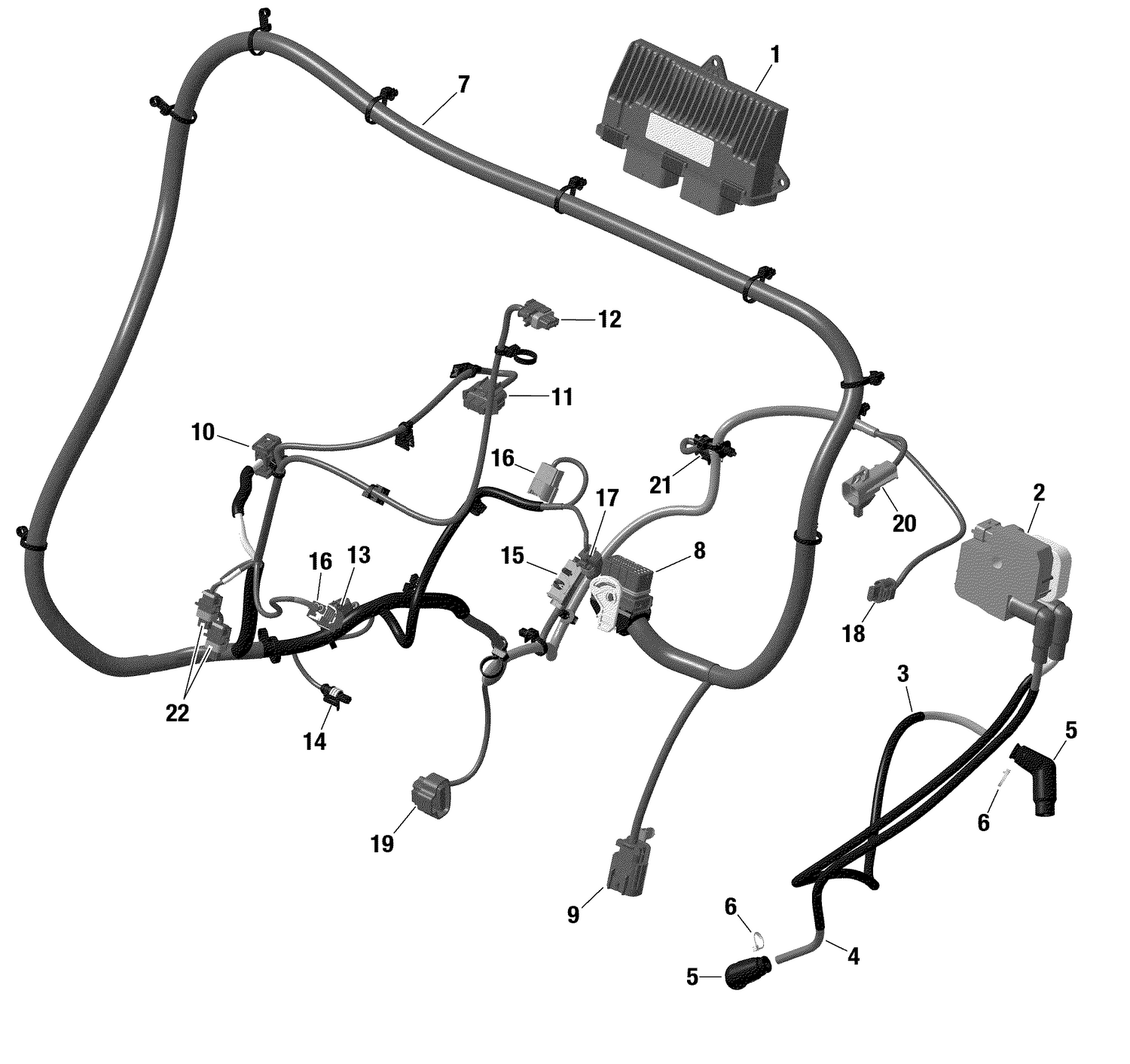

10- Engine Harness And Electronic Module
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666064 | Electronic Module Programmable |
| 2a | 710000568 | Housing |
| 3 | 420665333 | Spark Plug Cable, 790 mm, Rear |
| 4 | 420665335 | Ignition Cable, Mag Side |
| 5 | 420265020 | Spark Plug Connector |
| 6 | 420866710 | Tie Rap |
| 11 | 515176410 | Male Connector |
| 12 | 278000997 | Male Housing, 3 Circuits |
| 13 | 278001005 | Male Housing, 2 Circuits |
| 15 | 278002378 | Male Housing |
| 17 | 278001005 | Male Housing, 2 Circuits |
| 18 | 278000997 | Male Housing, 3 Circuits |
| 19 | 710000329 | Male Housing, 4 Circuits |
| 20 | 710002466 | Housing |
