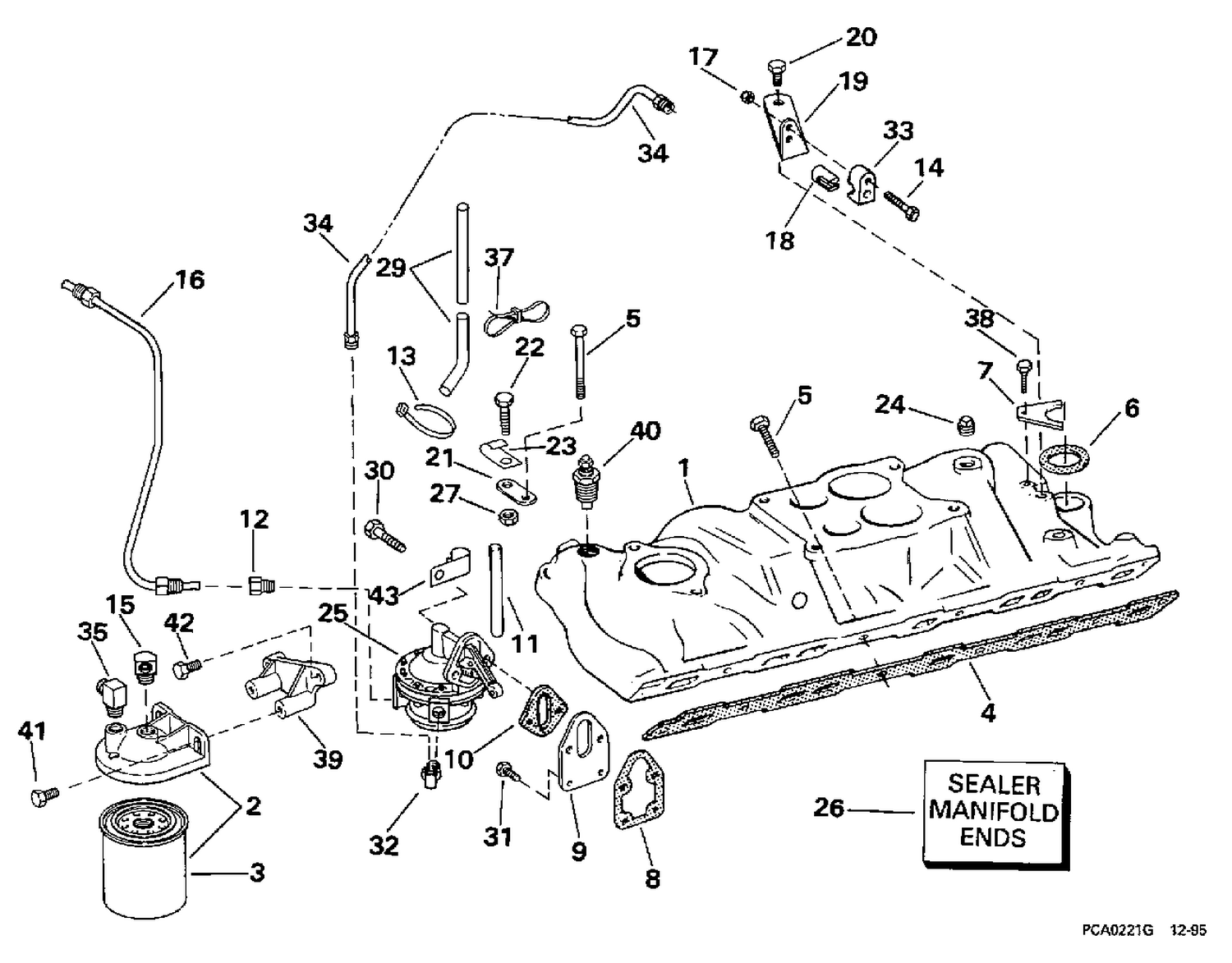

| Ref | Part Number | Description |
|---|
| 1 |
3854268 |
MANIFOLD, Intake |
| 1 |
3854532 |
INTAKE MANIFOLD |
| 2 |
3850861 |
COVER & FUEL FILTER ASSY |
| 3 |
5012363 |
Filter Ay This part replaces 0502906. |
| 4 |
3854269 |
GASKET SET, Intake manifold |
| 5 |
3856131 |
BOLT, Intake manifold, long |
| 5 |
3856132 |
BOLT, Intake manifold, short |
| 6 |
0312780 |
GASKET, Dist. to manifold This part replaces 3852109. |
| 7 |
3852108 |
CLAMP, Distributor |
| 8 |
3852113 |
GASKET, Plate to engine |
| 9 |
0312801 |
PLATE, Fuel pump mounting This part replaces 3852114. |
| 10 |
0311064 |
GASKET, Fuel pump This part replaces 3852095. |
| 11 |
3852112 |
PUSH ROD, Fuel pump |
| 12 |
3852017 |
ADAPTER, Fuel line |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 14 |
0303459 |
ECREW,Exhaust cover,1-1/2"long This part replaces 3852048. |
| 15 |
3852702 |
FITTING, Filter outlet |
| 16 |
3853997 |
FUEL LINE, Filter to pump |
| 18 |
3852019 |
TRUNNION, S.A.E. Cable |
| 19 |
3856728 |
ANCHOR BRACKET |
| 20 |
3853428 |
SCREW, Anchor bracket |
| 21 |
3852621 |
BRACKET, Fuel line clamp |
| 23 |
0511514 |
CLAMP, Cable This part replaces 3852231. |
| 24 |
3852075 |
PLUG, Intake manifold |
| 25 |
3855276 |
FUEL PUMP ASSY. |
| 26 |
3853169 |
SEALER, Manifold ends |
| 27 |
0311375 |
NUT This part replaces 3852099. |
| 29 |
0909938 |
HOSE, Fuel overflow This part replaces 3854242. |
| 30 |
3853393 |
SCREW, Bracket to manifold |
| 32 |
3852453 |
FITTING, Cover, return line |
| 33 |
3850266 |
ANCHOR BLOCK |
| 34 |
3854104 |
FUEL LINE, Pump to carburetor |
| 34 |
3857650 |
FUEL PUMP, High pressure This part replaces 3854280. |
| 35 |
3852013 |
ELBOW, Filter inlet |
| 38 |
3853557 |
SCREW, Brace to alterntr bracket |
| 39 |
3853310 |
BRACKET, Fuel filter |
| 40 |
3852029 |
SENDER, Water temperature |
| 41 |
3853266 |
BOLT, Distributor |
| 42 |
3853326 |
SCREW, Bracket to engine |
