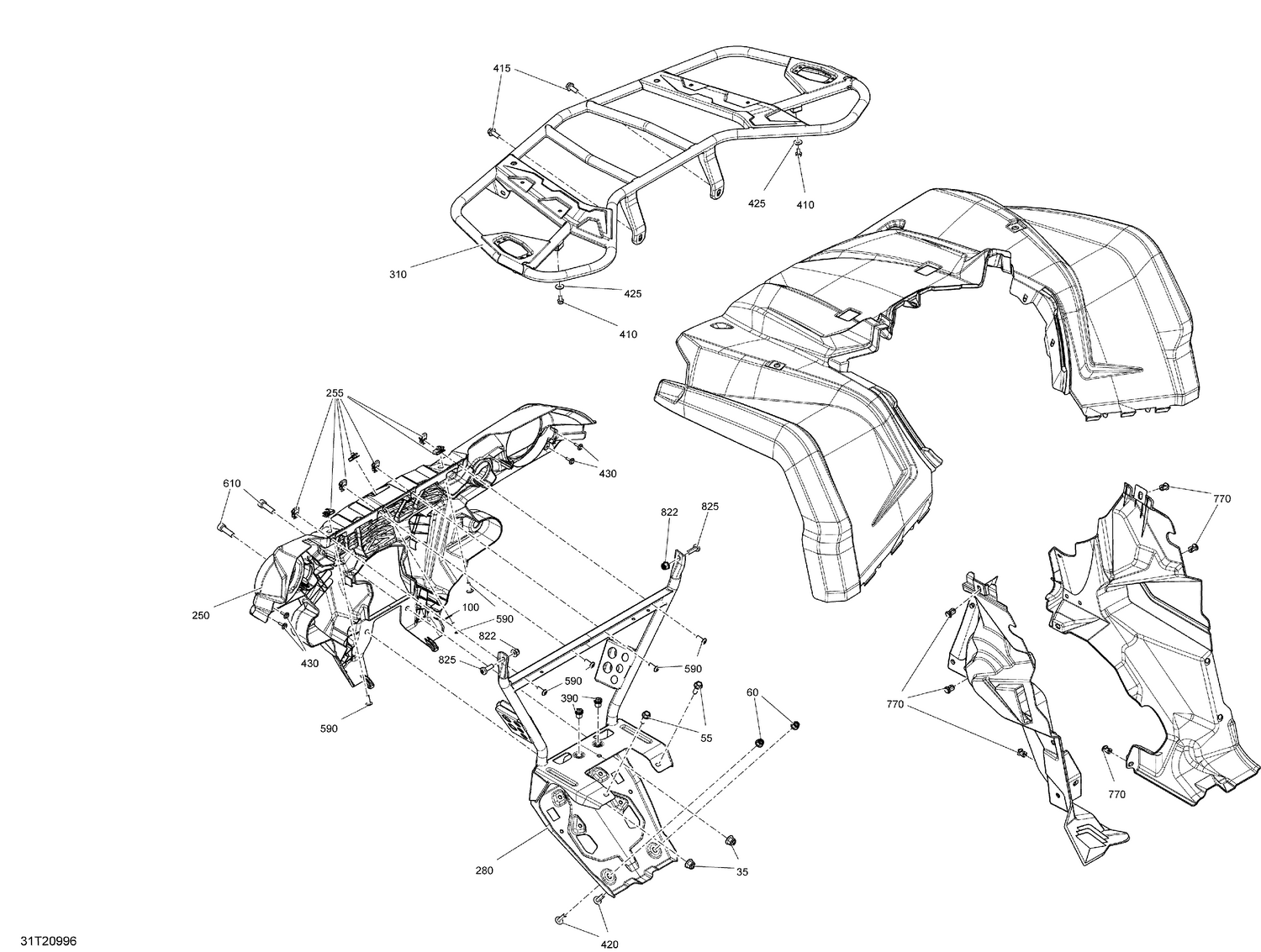

09- Body - Front Section - Squadron Green - STD
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 100 | 234062410 | Flat Washer 6 mm |
| 250 | 705009335 | Front Facia |
| 255 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 280 | 705017337 | Front Frame This part replaces 705009256. |
| 310 | 705006887 | Black, Front Luggage Rack |
| 390 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 410 | 210261250 | Hex. Flange Screw M6 X 12 |
| 415 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 425 | 234062670 | Stainless Steel Flat Washer |
| 430 | 250000725 | Screw M4 X 16 |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 610 | 236282054 | Hex. Screw M8 X 20 |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 822 | 233281464 | Elastic Flange Nut M8 |
